Enclosure not stated · 2 knobs
Fuzz Face (Silicon)
Based on the Dallas Arbiter Fuzz Face· 62 other boards clone it
- Category
- Fuzz
- Price
- see vendorin stock
- Tags
- Arbiter

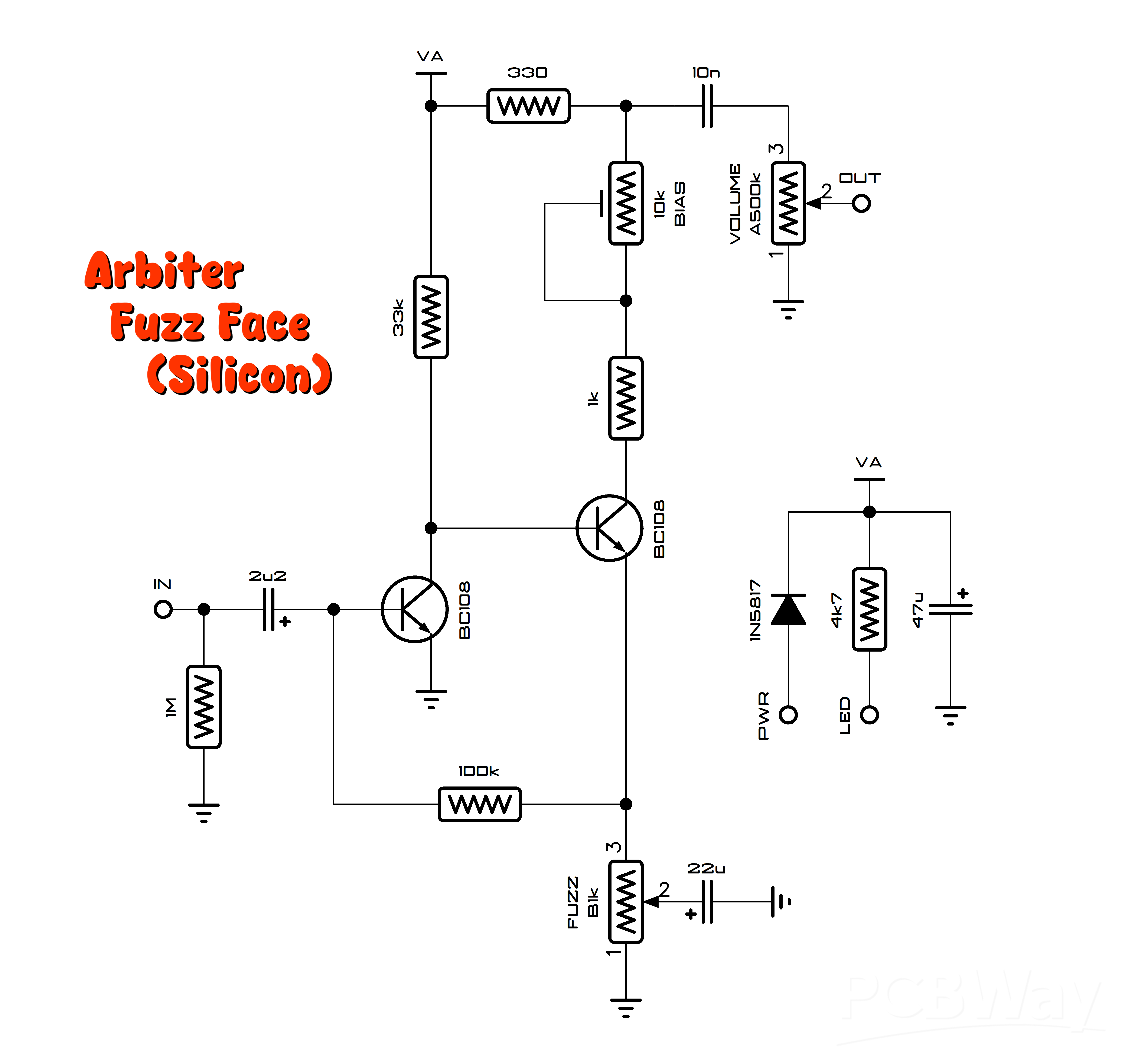

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 15 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 6 | ||||
| ×1 | 330 | 330 | read from the schematic by eye | |
| ×1 | 33k | 33k | read from the schematic by eye | |
| ×1 | 1k | 1k | read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 4 | ||||
| ×1 | 10n | 10n | read from the schematic by eye | |
| ×1 | 2u2 | 2.2u | electrolytic; read from the schematic by eye | |
| ×1 | 22u | 22u | electrolytic; read from the schematic by eye | |
| ×1 | 47u | 47u | electrolytic; read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | BC108 | BC108 | read from the schematic by eye | |
| Potentiometers 2 | ||||
| Volume | A500k | A500k | Potentiometer | read from the schematic by eye |
| Fuzz | B1k | B1k | Potentiometer | read from the schematic by eye |
| Trimmers 1 | ||||
| Bias | 10k | 10k | trimmer in Q2 collector; read from the schematic by eye | |
