Fuzz Factory

Based on the Z.Vex Fuzz Factory· 24 other boards clone it

Category
Fuzz
Controls
Stab · Comp · Drive · Gate · Vol
Price
see vendorin stock
Tags
ZVEX, ZVEX, Fuzz
Order the board at PCBWay Schematic image (CC BY-SA)

From the vendor

The original potentiometers are also attached to the board, but ZVex uses small square potentiometers, which are more expensive. I wanted a layout that used regular 16mm pots that are easier to find and probably already in your parts stash. Q2-3s were originally AC128, but any germanium PNPs should work just fine. The Hfe ranges should be around 70-100 and 100-150 respectively (very similar to Fuzz Face).

Schematic

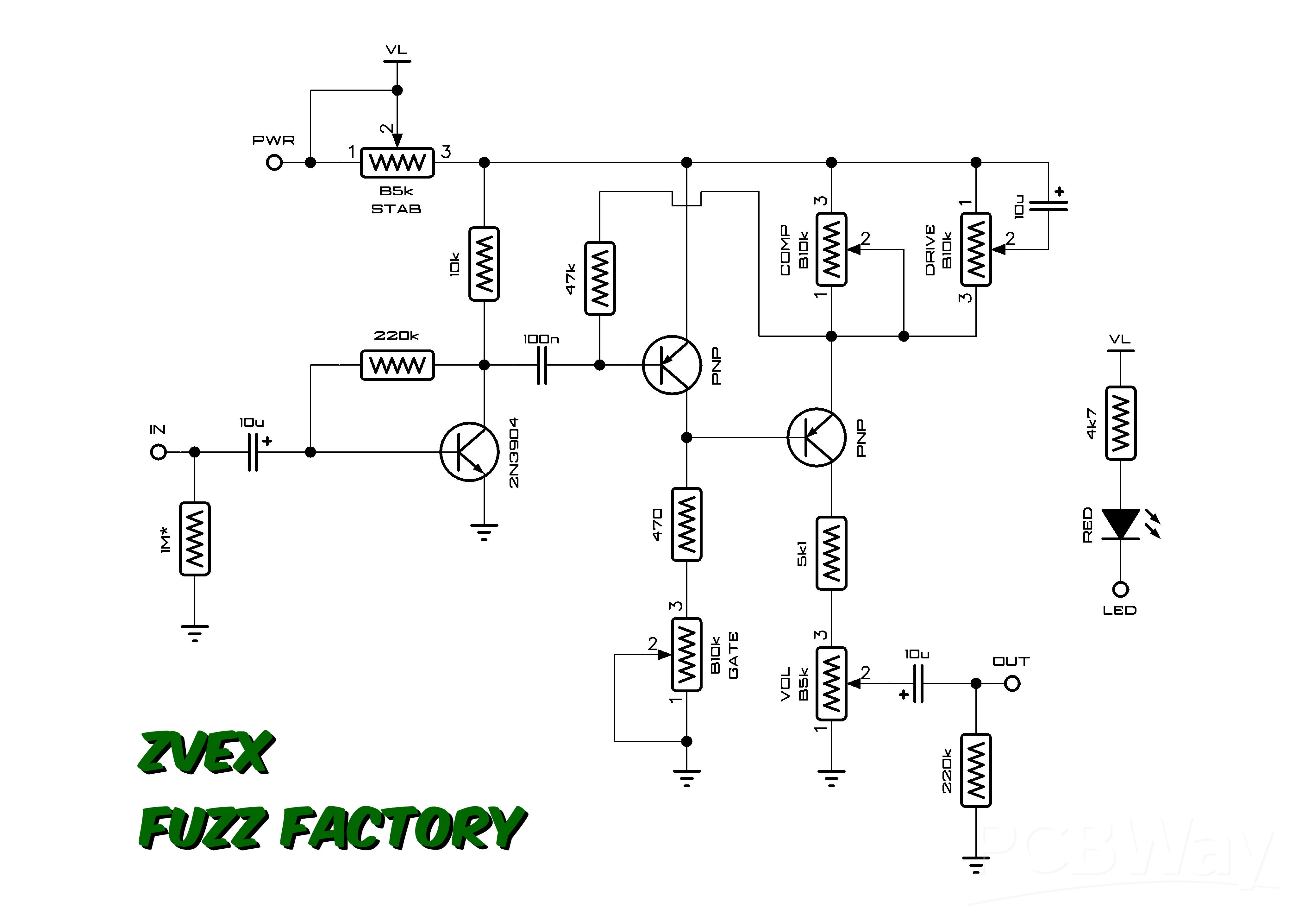

The schematic image is on the project page. Open it at PCBWay.

Parts list 17 rows

Report a wrong parse

Got parts in a drawer? See what you can build with them.

Check before you build · 1 value the reader of this schematic was not sure of
  • the two PNP transistors carry no part number
RefValueNormalizedTypeNotes
Resistors 7
×1470470read from the schematic by eye
×14k74.7kLED resistor; read from the schematic by eye
×15k15.1kread from the schematic by eye
×110k10kread from the schematic by eye
×147k47kread from the schematic by eye
×2220k220kread from the schematic by eye
×11M1Mmarked 1M* on the drawing (optional or select-on-test); read from the schematic by eye
Capacitors 2
×1100n100nread from the schematic by eye
×310u10uelectrolytic; read from the schematic by eye
Transistors 2
×12N39042N3904input buffer; read from the schematic by eye
×2PNPPNPtype not given; germanium PNP in the original; read from the schematic by eye
Potentiometers 5
StabB5kB5kPotentiometerread from the schematic by eye
CompB10kB10kPotentiometerread from the schematic by eye
DriveB10kB10kPotentiometerread from the schematic by eye
GateB10kB10kPotentiometerread from the schematic by eye
VolB5kB5kPotentiometerread from the schematic by eye
LEDs 1
×1REDREDindicator LED drawn from VL to the LED pad; read from the schematic by eye
