Fuzz Factory

Based on the Z.Vex Fuzz Factory· 24 other boards clone it

Category
Fuzz
Controls
Stab · Comp · Drive · Gate · Volume
Price
see vendorin stock
Tags
ZVEX
Order the board at PCBWay Schematic image (CC BY-SA)

From the vendor

The Z.Vex Fuzz Factory is a fuzz pedal made by the American inventor and musician Zachary Vex of the Z.Vex Effects company. The Fuzz Factory is based on, yet vastly expands the tonal palette of, classic fuzztone designs from the 1960s. Invented in the mid-1990s, the pedals are mostly handbuilt and painted in Minnesota, United States, with a budget line being manufactured in Taiwan.

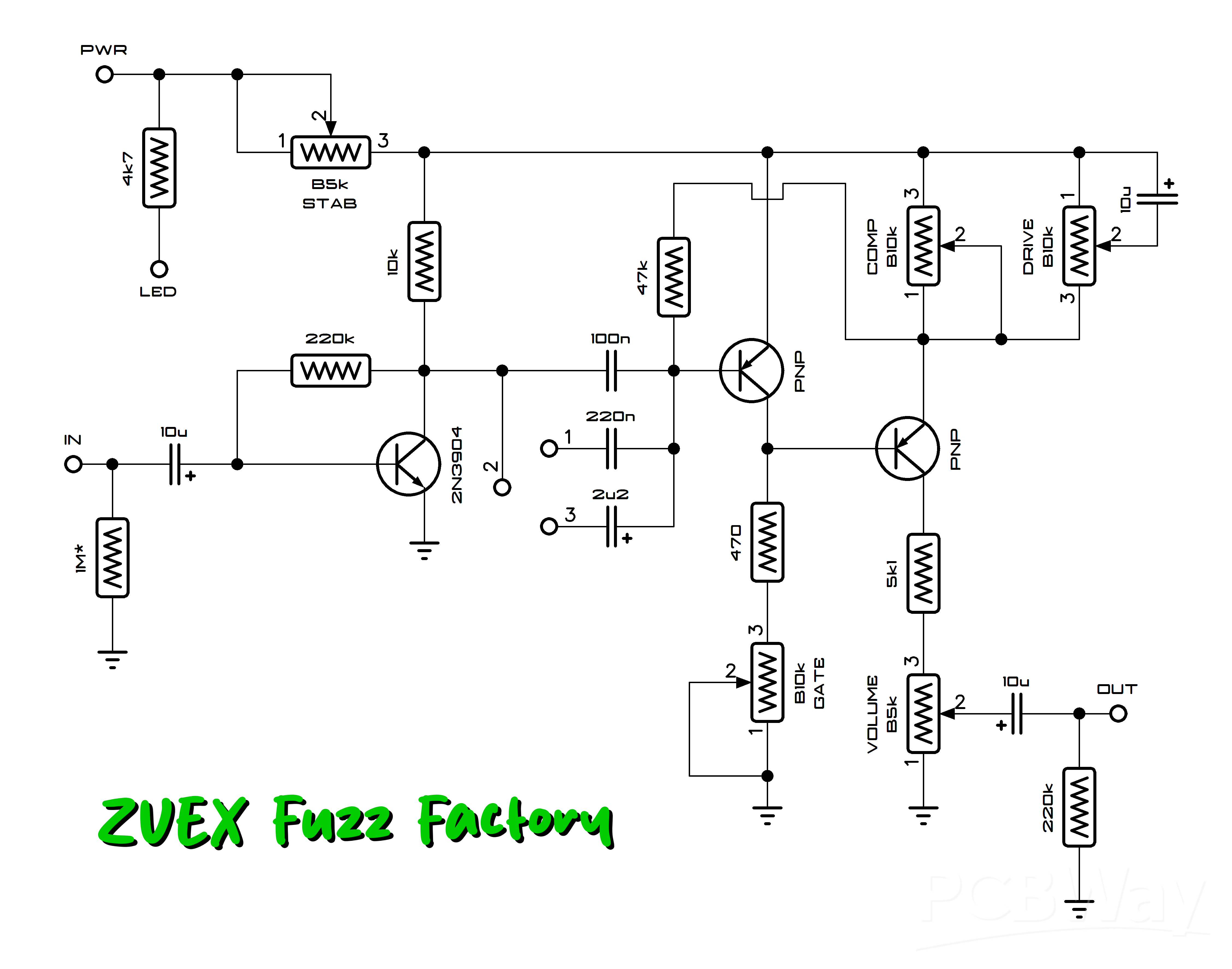

Schematic

The schematic image is on the project page. Open it at PCBWay.

Parts list 18 rows

Report a wrong parse

Got parts in a drawer? See what you can build with them.

Check before you build · 2 values the reader of this schematic was not sure of
  • PNP transistors have no part number on the drawing
  • 1M input pulldown is marked with an asterisk
RefValueNormalizedTypeNotes
Resistors 7
×2220k220kread from the schematic by eye
×11M1Mdrawn as 1M* (optional/select); read from the schematic by eye
×147k47kread from the schematic by eye
×110k10kread from the schematic by eye
×15k15.1kread from the schematic by eye
×14k74.7kLED resistor; read from the schematic by eye
×1470470read from the schematic by eye
Capacitors 4
×1100n100nread from the schematic by eye
×1220n220nto off-board pad 1; read from the schematic by eye
×12u22.2uelectrolytic, to off-board pad 3; read from the schematic by eye
×310u10uelectrolytic; read from the schematic by eye
Transistors 2
×12N39042N3904read from the schematic by eye
×2PNPPNPtype not given, drawn only as PNP; read from the schematic by eye
Potentiometers 5
StabB5kB5kPotentiometerread from the schematic by eye
CompB10kB10kPotentiometerread from the schematic by eye
DriveB10kB10kPotentiometerread from the schematic by eye
GateB10kB10kPotentiometerread from the schematic by eye
VolumeB5kB5kPotentiometerread from the schematic by eye
