Sucker Punch
Based on the Greer Amps Sucker Punch· 6 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Greer Amps

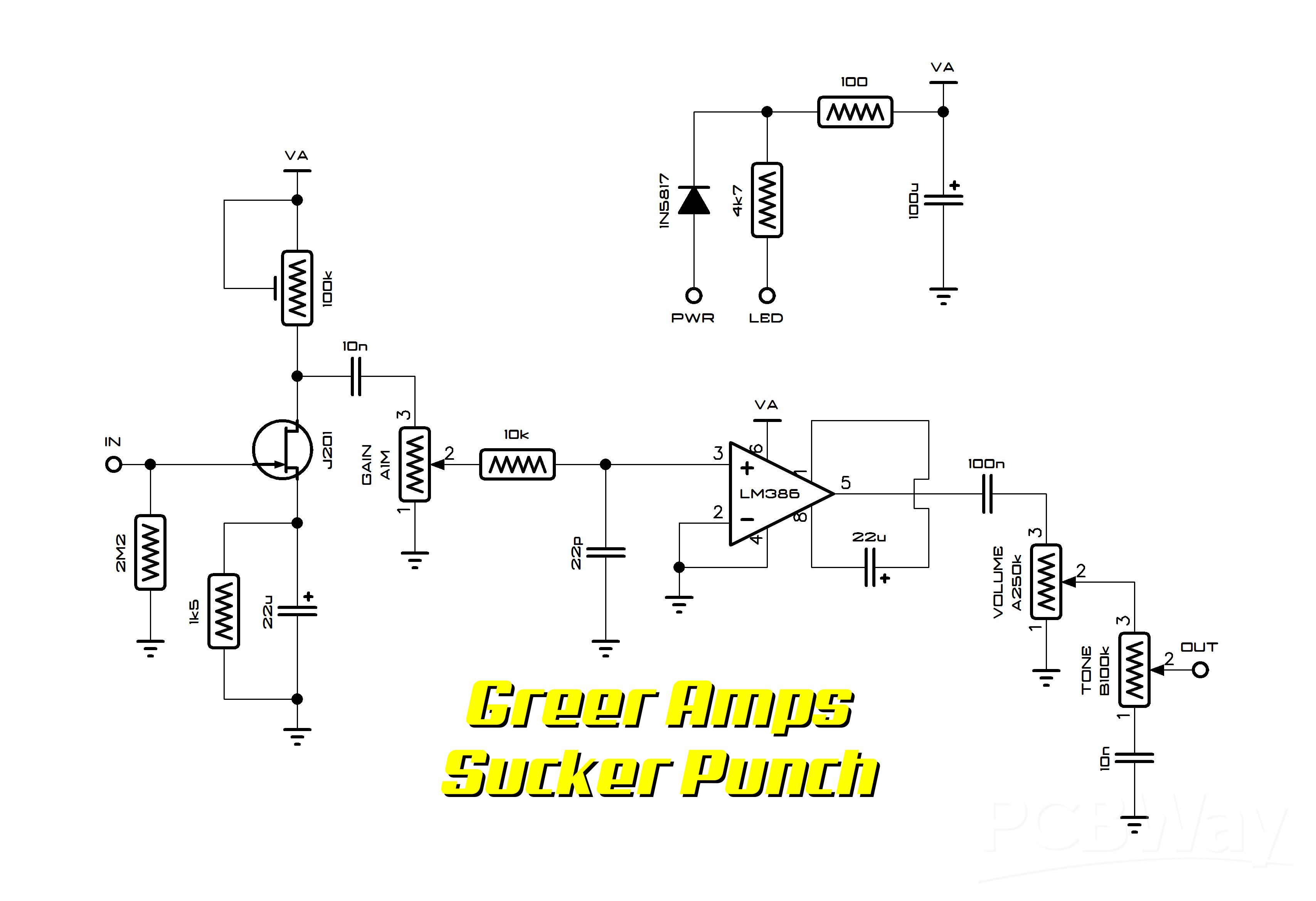

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 17 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 1k5 | 1.5k | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| ×1 | 100 | 100 | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| Capacitors 5 | ||||
| ×2 | 10n | 10n | read from the schematic by eye | |
| ×2 | 22u | 22u | read from the schematic by eye | |
| ×1 | 22p | 22p | read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | J201 | J201 | read from the schematic by eye | |
| ICs 1 | ||||
| ×1 | LM386 | LM386 | read from the schematic by eye | |
| Potentiometers 3 | ||||
| Gain | A1M | A1M | Potentiometer | read from the schematic by eye |
| Volume | A250k | A250k | Potentiometer | read from the schematic by eye |
| Tone | B100k | B100k | Potentiometer | read from the schematic by eye |
| Trimmers 1 | ||||
| ×1 | 100k | 100k | JFET drain trimmer, drawn with a flat trimmer wiper tied to VA; read from the schematic by eye | |
