Enclosure not stated · 2 knobs
Super Duper 2 in 1
Based on the Z.Vex Super Duper 2-in-1· 8 other boards clone it
- Category
- Overdrive
- Price
- see vendorin stock
- Tags
- ZVEX, Guitar pedal, MosFet, Booster, Overdrive, ZVEX, Super Duper
From the vendor
The Super Duper 2-In-1 pedal combines 2 circuits of the famous Super Hard-On Booster - which means you now have access to twice the power, twice the sound, and double the volume. However, this pedal can do more - thanks to the master volume control, you can get overdrive at any volume level, that is, this pedal works not only as a booster, but also as an overdrive or distortion!

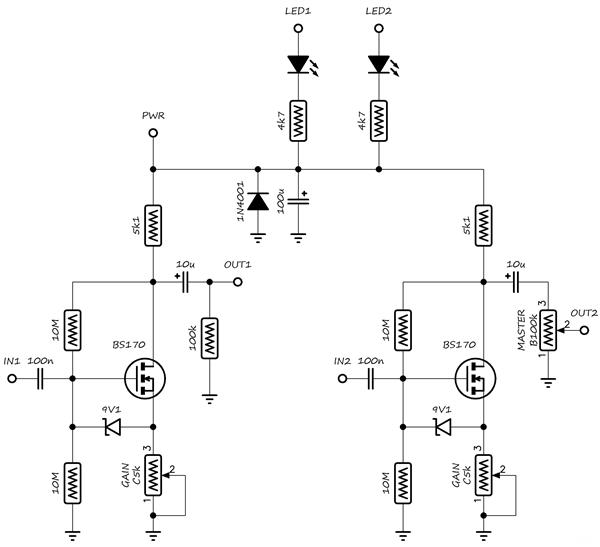

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 13 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 4 | ||||
| ×4 | 10M | 10M | read from the schematic by eye | |
| ×2 | 5k1 | 5.1k | read from the schematic by eye | |
| ×2 | 4k7 | 4.7k | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| Capacitors 3 | ||||
| ×2 | 100n | 100n | read from the schematic by eye | |
| ×2 | 10u | 10u | read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| Diodes 2 | ||||
| ×2 | 9V1 | 9V1 | zeners, gate to source; read from the schematic by eye | |
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | BS170 | BS170 | read from the schematic by eye | |
| Potentiometers 2 | ||||
| Gain | C5k | C5k | Potentiometer | ×2, one per channel, wired as rheostats; read from the schematic by eye |
| Master | B100k | B100k | Potentiometer | output level of the second channel only; read from the schematic by eye |
| LEDs 1 | ||||
| ×2 | LED | LED | LED1 and LED2, one per channel; read from the schematic by eye | |
