Enclosure not stated · 2 knobs
Tone Bender MKII
Based on the Sola Sound Tone Bender MKII· 22 other boards clone it
- Category
- Fuzz
- Price
- see vendorin stock
- Tags
- Sola Sound

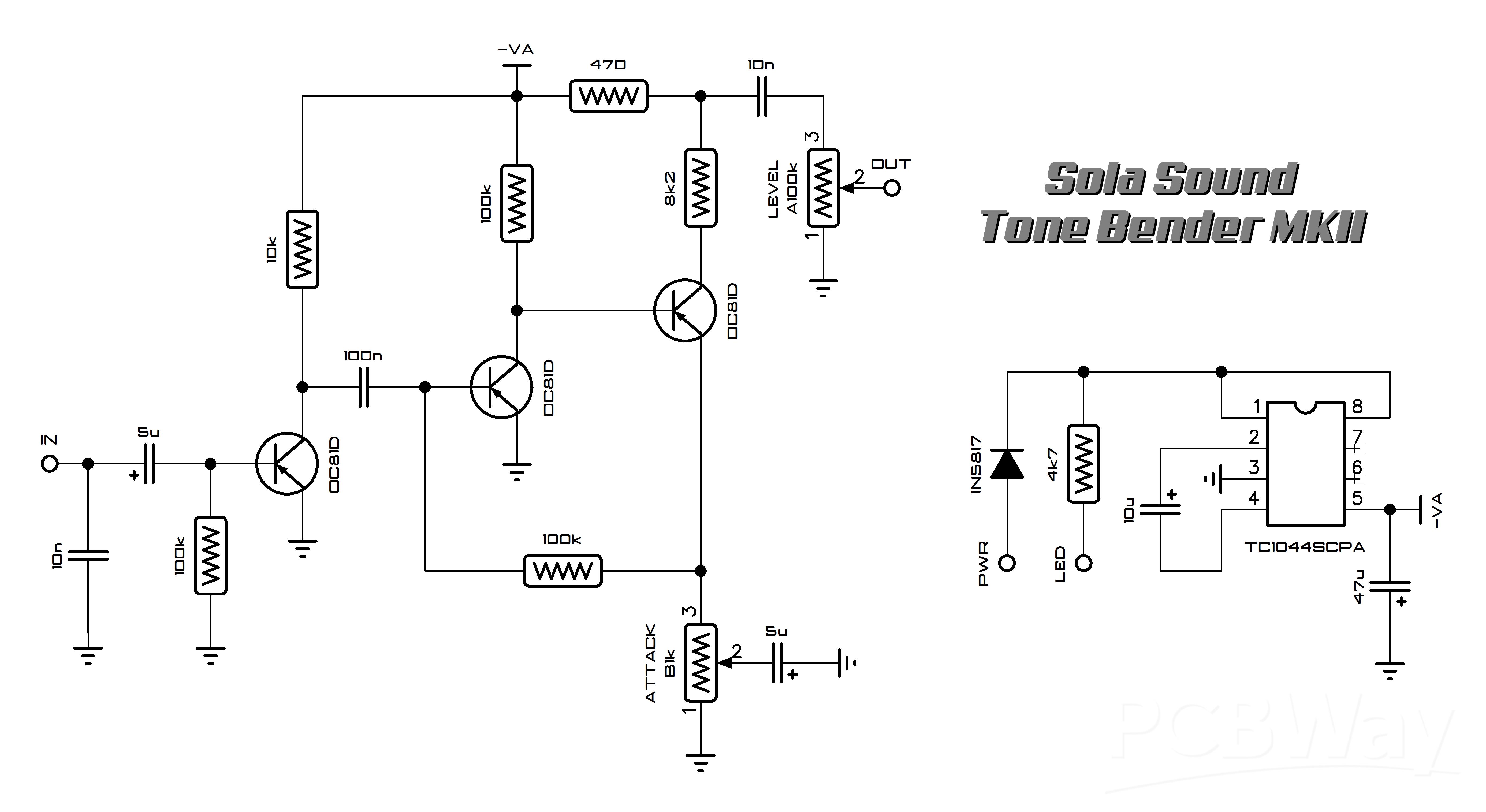

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 15 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×3 | 100k | 100k | read from the schematic by eye | |
| ×1 | 470 | 470 | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| ×1 | 8k2 | 8.2k | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| Capacitors 5 | ||||
| ×2 | 10n | 10n | read from the schematic by eye | |
| ×2 | 5u | 5u | read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| ×1 | 10u | 10u | read from the schematic by eye | |
| ×1 | 47u | 47u | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×3 | OC81D | OC81D | read from the schematic by eye | |
| ICs 1 | ||||
| ×1 | TC1044SCPA | TC1044SCPA | charge pump for the -VA supply; read from the schematic by eye | |
| Potentiometers 2 | ||||
| Level | A100k | A100k | Potentiometer | read from the schematic by eye |
| Attack | B1k | B1k | Potentiometer | read from the schematic by eye |
