Enclosure not stated · 1 knob
RangeMaster
Based on the Dallas Arbiter Rangemaster· 36 other boards clone it

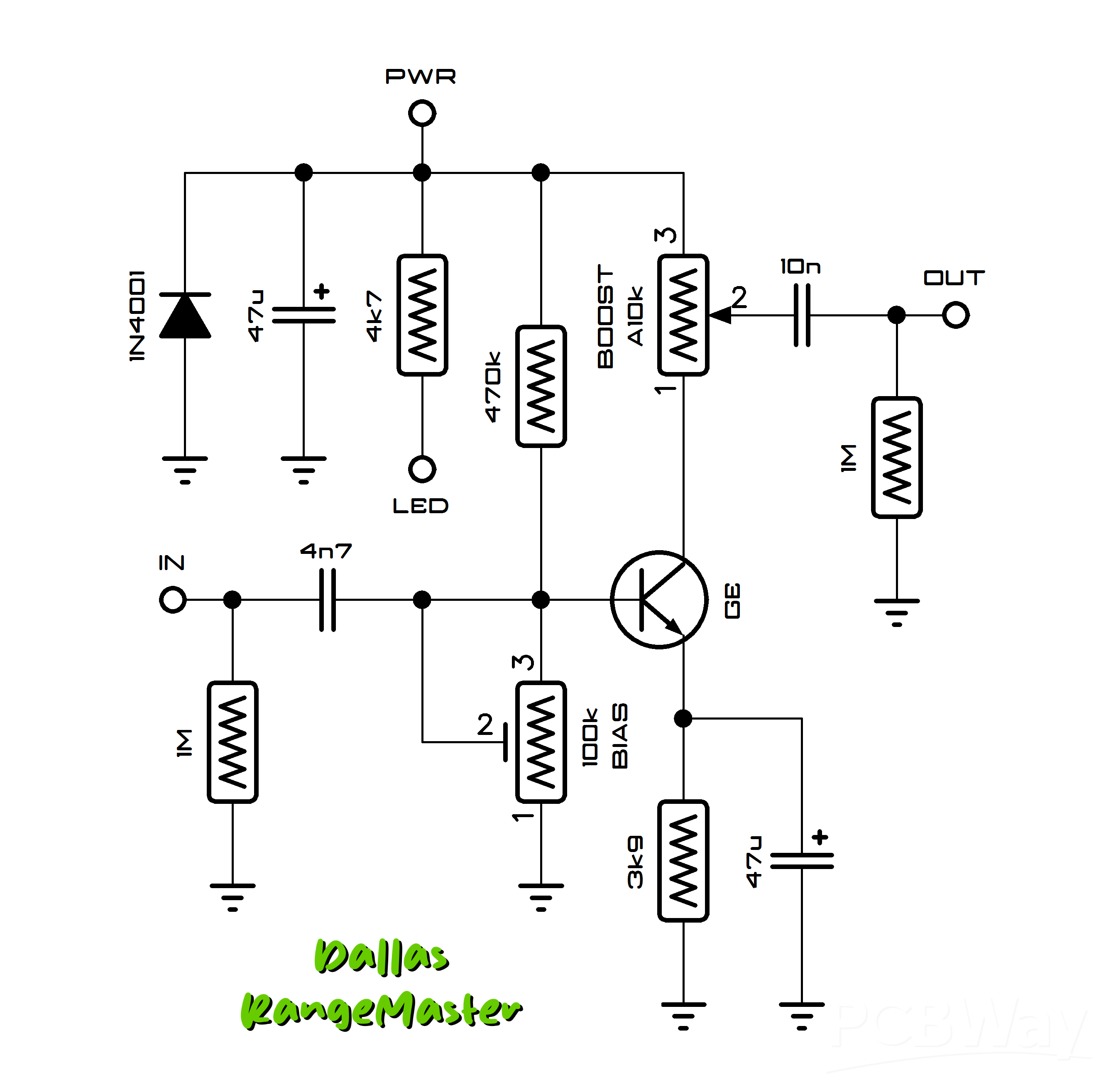

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 11 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 4 | ||||
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×1 | 470k | 470k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| ×1 | 3k9 | 3.9k | read from the schematic by eye | |
| Capacitors 3 | ||||
| ×2 | 47u | 47u | electrolytic; read from the schematic by eye | |
| ×1 | 10n | 10n | read from the schematic by eye | |
| ×1 | 4n7 | 4.7n | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | GE | GE | germanium PNP, no part number drawn; read from the schematic by eye | |
| Potentiometers 1 | ||||
| Boost | A10k | A10k | Potentiometer | read from the schematic by eye |
| Trimmers 1 | ||||
| Bias | 100k | 100k | read from the schematic by eye | |
