Enclosure not stated · 3 knobs

Hotcake

Based on the Crowther Hotcake· 12 other boards clone it

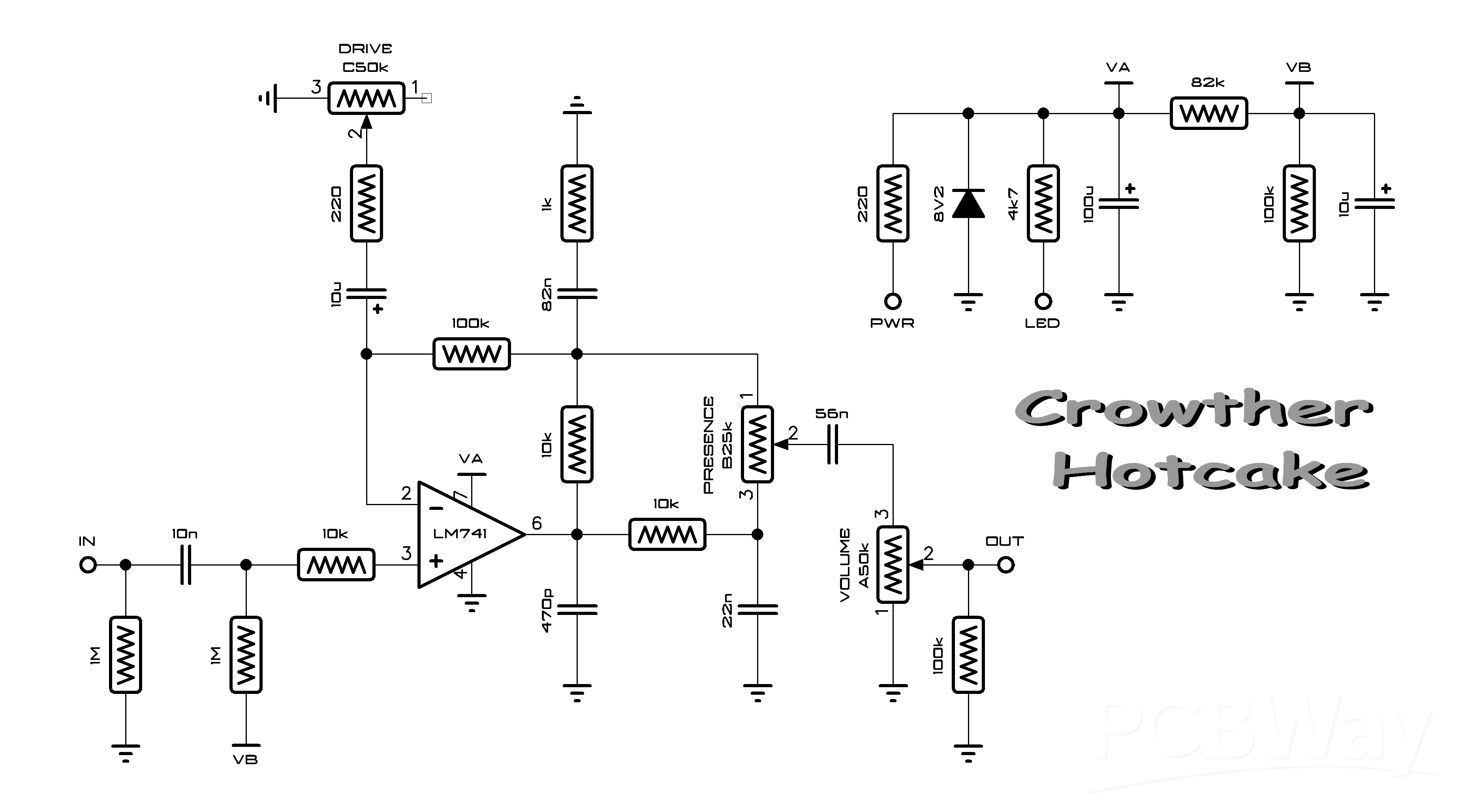

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 7
×3	10k	10k		read from the schematic by eye
×3	100k	100k		read from the schematic by eye
×2	1M	1M		read from the schematic by eye
×2	220	220		read from the schematic by eye
×1	1k	1k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
×1	82k	82k		read from the schematic by eye
Capacitors 7
×2	10u	10u		read from the schematic by eye
×1	10n	10n		read from the schematic by eye
×1	82n	82n		read from the schematic by eye
×1	470p	470p		read from the schematic by eye
×1	22n	22n		read from the schematic by eye
×1	56n	56n		read from the schematic by eye
×1	100u	100u		read from the schematic by eye
Diodes 1
×1	8V2	8V2		zener across the supply; read from the schematic by eye
ICs 1
×1	LM741	LM741		read from the schematic by eye
Potentiometers 3
Drive	C50k	C50k	Potentiometer	read from the schematic by eye
Presence	B25k	B25k	Potentiometer	read from the schematic by eye
Volume	A50k	A50k	Potentiometer	read from the schematic by eye
