Enclosure not stated · 1 knob

Woolly Mammoth

Based on the Z.Vex Woolly Mammoth· 15 other boards clone it

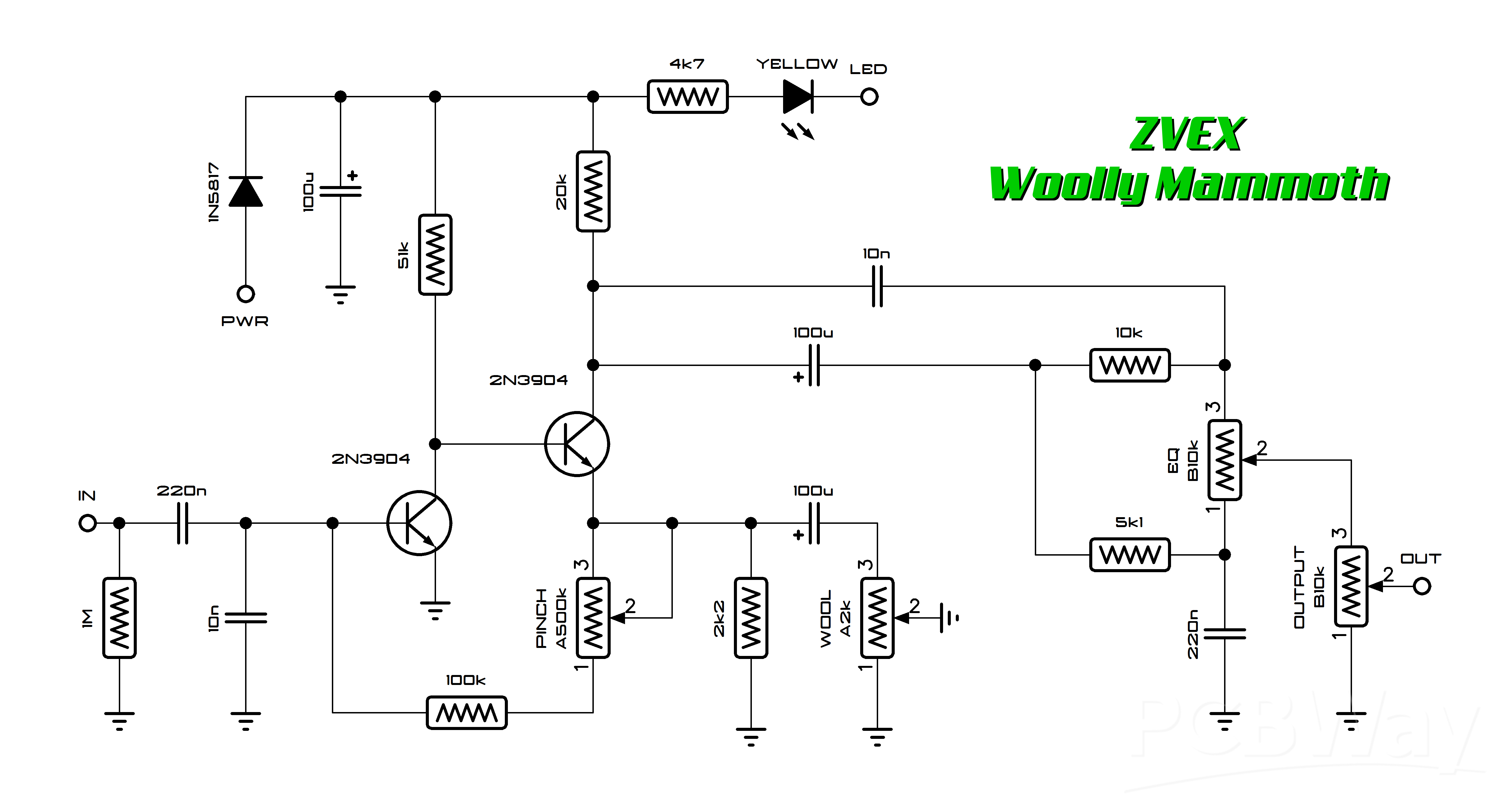

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 8
×1	1M	1M		read from the schematic by eye
×1	51k	51k		read from the schematic by eye
×1	20k	20k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
×1	10k	10k		read from the schematic by eye
×1	5k1	5.1k		read from the schematic by eye
×1	2k2	2.2k		read from the schematic by eye
×1	100k	100k		read from the schematic by eye
Capacitors 3
×2	220n	220n		read from the schematic by eye
×2	10n	10n		read from the schematic by eye
×3	100u	100u		read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
Transistors 1
×2	2N3904	2N3904		read from the schematic by eye
Potentiometers 4
Pinch	A500k	A500k	Potentiometer	read from the schematic by eye
Wool	A2k	A2k	Potentiometer	read from the schematic by eye
EQ	B10k	B10k	Potentiometer	read from the schematic by eye
Output	B10k	B10k	Potentiometer	read from the schematic by eye
LEDs 1
×1	YELLOW	YELLOW		power indicator, drawn as an LED symbol with its 4k7 resistor; read from the schematic by eye
