Enclosure not stated · 3 knobs

Plexi-Drive

Based on the Wampler Plexi-Drive· 9 other boards clone it

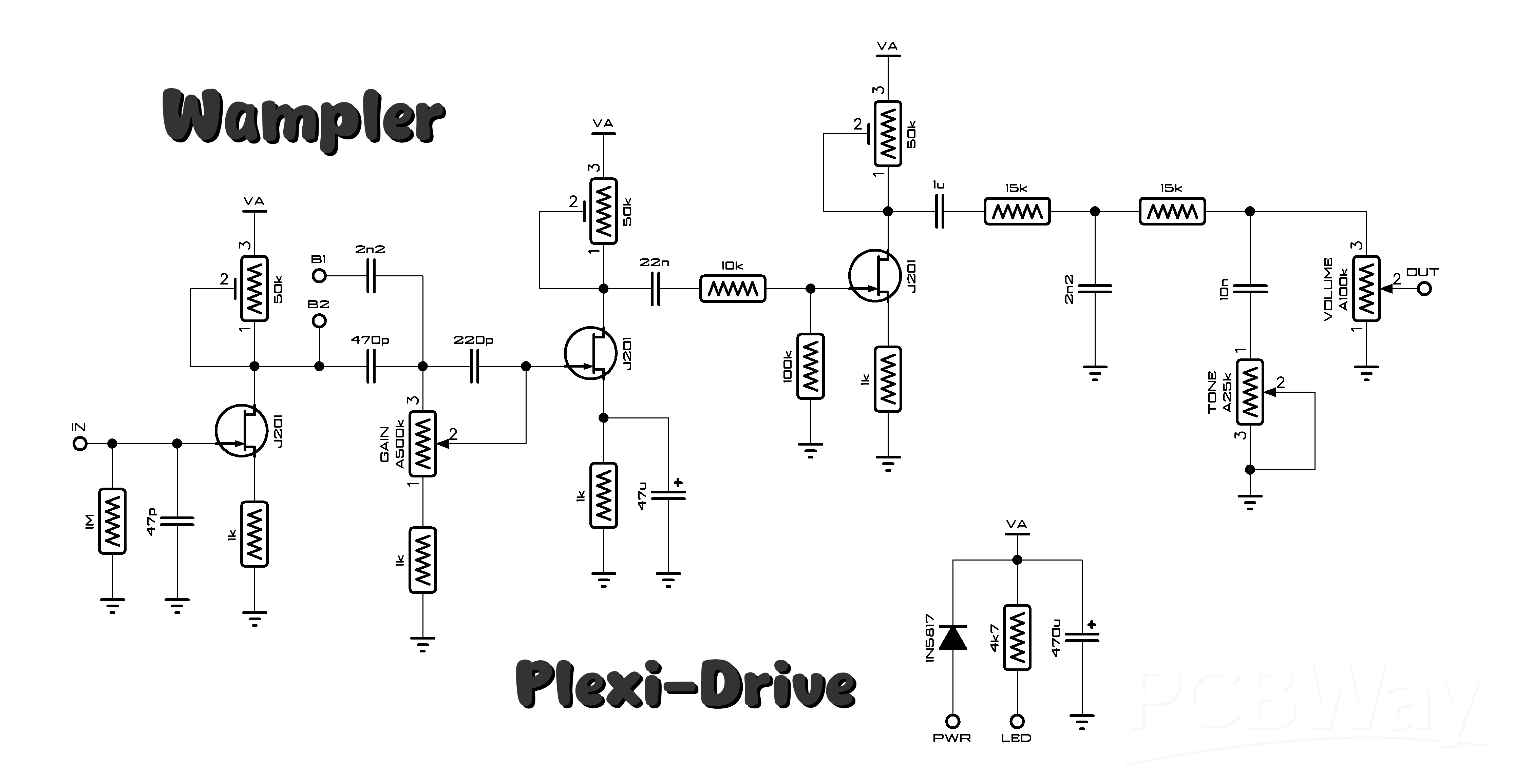

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 6
×4	1k	1k		read from the schematic by eye
×2	15k	15k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
×1	10k	10k		read from the schematic by eye
×1	100k	100k		read from the schematic by eye
×1	1M	1M		read from the schematic by eye
Capacitors 9
×2	2n2	2.2n		read from the schematic by eye
×1	47p	47p		read from the schematic by eye
×1	220p	220p		read from the schematic by eye
×1	470p	470p		read from the schematic by eye
×1	10n	10n		read from the schematic by eye
×1	22n	22n		read from the schematic by eye
×1	1u	1u		read from the schematic by eye
×1	47u	47u		read from the schematic by eye
×1	470u	470u		read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
Transistors 1
×3	J201	J201		read from the schematic by eye
Potentiometers 3
Gain	A500k	A500k	Potentiometer	read from the schematic by eye
Tone	A25k	A25k	Potentiometer	read from the schematic by eye
Volume	A100k	A100k	Potentiometer	read from the schematic by eye
Trimmers 1
×3	50k	50k		drain bias trimmers, one per J201; read from the schematic by eye
