Enclosure not stated · 4 knobs
Pussy Melter
Based on the Steel Panther Pussy Melter· 3 other boards clone it
- Category
- Other
- Controls
- Dirty · Sizzle · Booty · Load
- Price
- see vendorin stock
- Tags
- Steel Panther

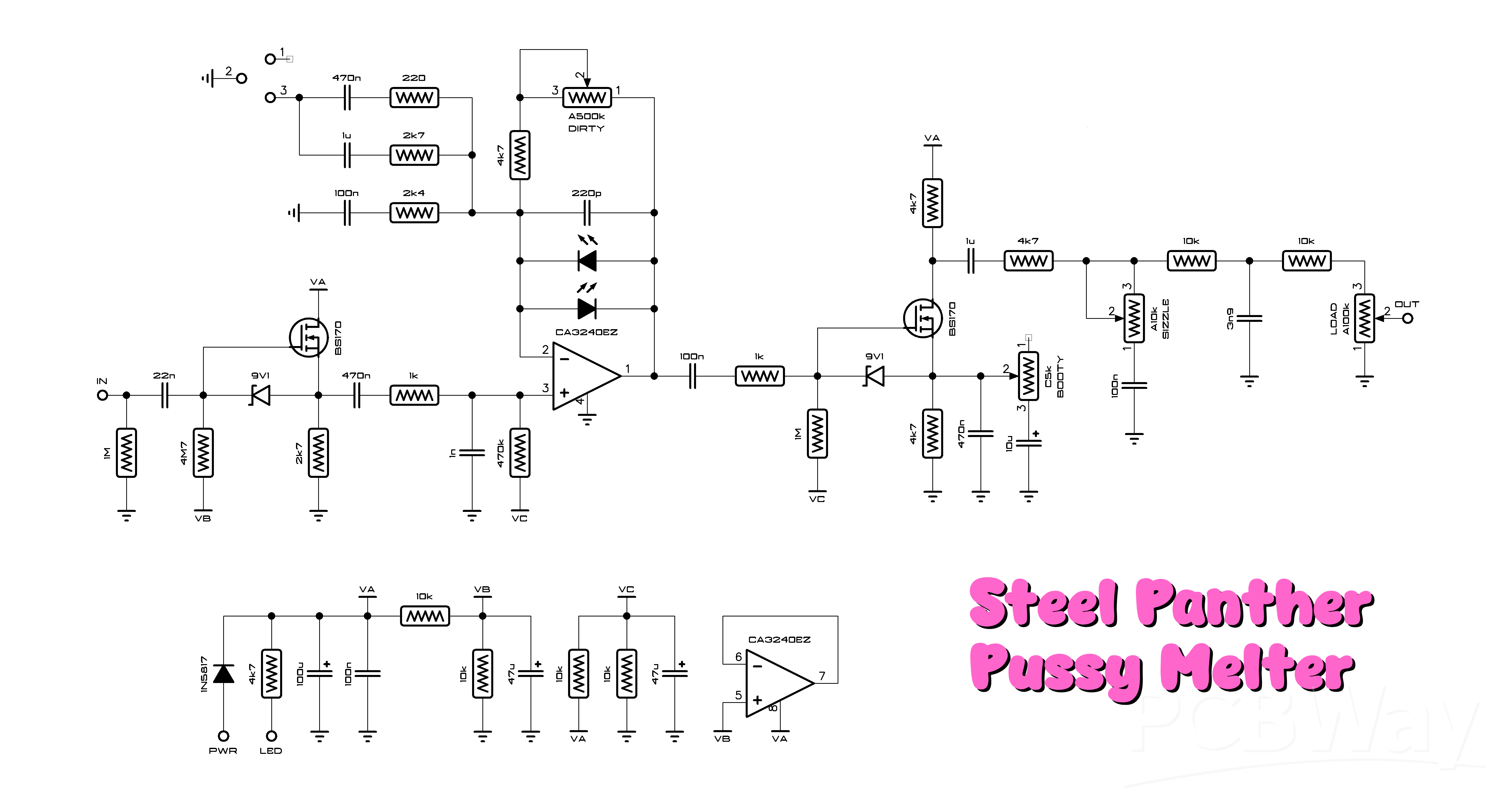

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 29 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
Check before you build · 1 value the reader of this schematic was not sure of
- SW: three numbered pads imply an off-board switch (likely SPDT/on-off-on) but no switch symbol or type is drawn
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 9 | ||||
| ×1 | 220 | 220 | read from the schematic by eye | |
| ×1 | 2k4 | 2.4k | read from the schematic by eye | |
| ×2 | 2k7 | 2.7k | read from the schematic by eye | |
| ×5 | 4k7 | 4.7k | read from the schematic by eye | |
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×1 | 4M7 | 4.7M | read from the schematic by eye | |
| ×2 | 1k | 1k | read from the schematic by eye | |
| ×1 | 470k | 470k | read from the schematic by eye | |
| ×6 | 10k | 10k | read from the schematic by eye | |
| Capacitors 10 | ||||
| ×3 | 470n | 470n | read from the schematic by eye | |
| ×2 | 1u | 1u | read from the schematic by eye | |
| ×4 | 100n | 100n | read from the schematic by eye | |
| ×1 | 220p | 220p | read from the schematic by eye | |
| ×1 | 22n | 22n | read from the schematic by eye | |
| ×1 | 1n | 1n | read from the schematic by eye | |
| ×1 | 10u | 10u | read from the schematic by eye | |
| ×1 | 3n9 | 3.9n | read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| ×2 | 47u | 47u | read from the schematic by eye | |
| Diodes 2 | ||||
| ×2 | 9V1 | 9V1 | zener; read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | BS170 | BS170 | read from the schematic by eye | |
| ICs 1 | ||||
| ×1 | CA3240EZ | CA3240EZ | dual op-amp; one section unused, tied off; read from the schematic by eye | |
| Potentiometers 4 | ||||
| Dirty | A500k | A500k | Potentiometer | read from the schematic by eye |
| Sizzle | A10k | A10k | Potentiometer | read from the schematic by eye |
| Booty | C5k | C5k | Potentiometer | wired as a variable resistor; read from the schematic by eye |
| Load | A100k | A100k | Potentiometer | read from the schematic by eye |
| Switches 1 | ||||
| ×1 | ? | ? | three pads 1/2/3: pad 3 to the 470n/1u gain-network node, pad 2 to ground, pad 1 open; presumably an off-board toggle, type not drawn; read from the schematic by eye | |
| LEDs 1 | ||||
| ×2 | LED | LED | clipping LEDs in the op-amp feedback loop; read from the schematic by eye | |
