Enclosure not stated · 2 knobs
Tone Bender MKI
Based on the Sola Sound Tone Bender MKI· 8 other boards clone it
- Category
- Fuzz
- Price
- see vendorin stock
- Tags
- Sola Sound

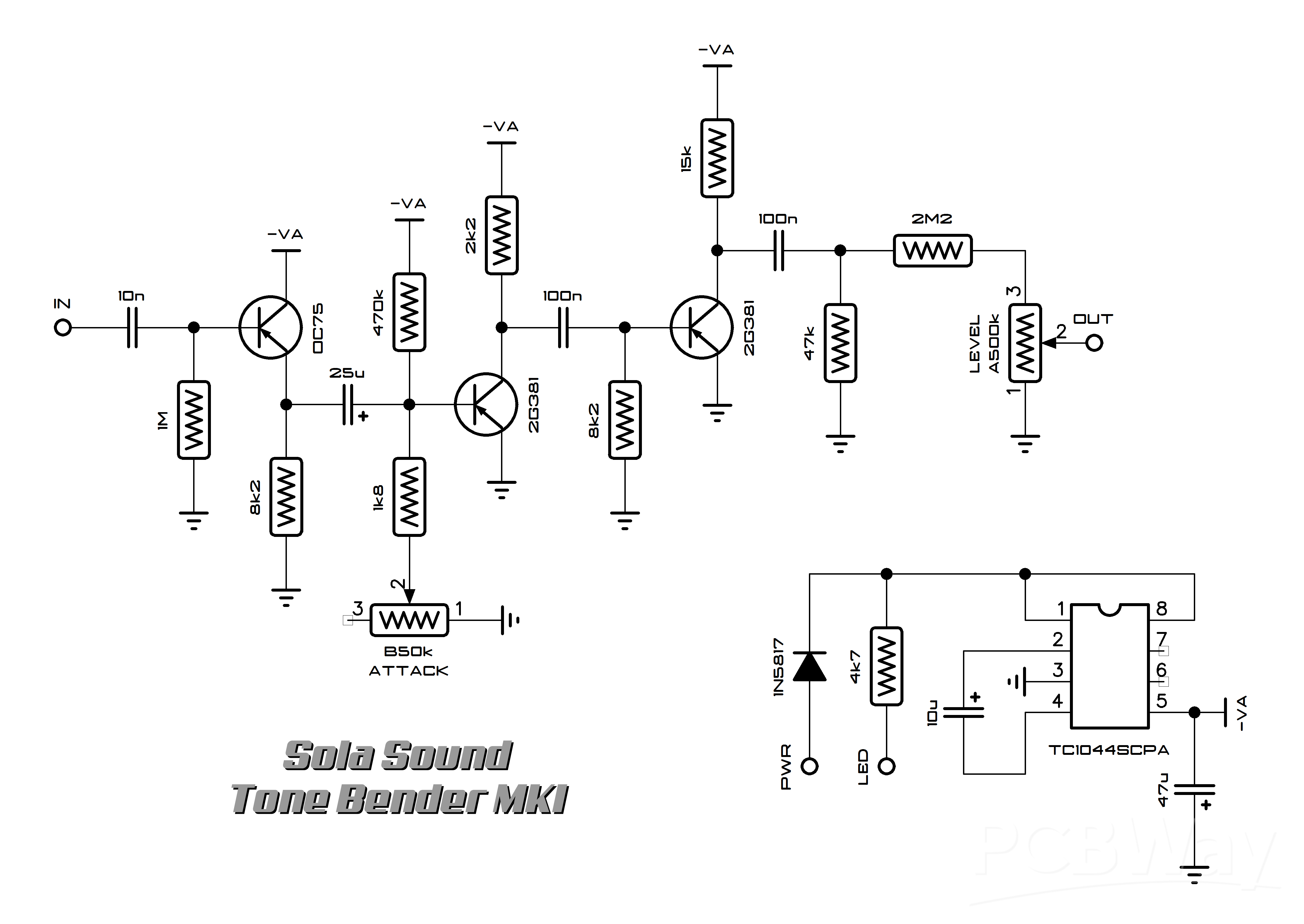

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 20 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 9 | ||||
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×2 | 8k2 | 8.2k | read from the schematic by eye | |
| ×1 | 470k | 470k | read from the schematic by eye | |
| ×1 | 1k8 | 1.8k | read from the schematic by eye | |
| ×1 | 2k2 | 2.2k | read from the schematic by eye | |
| ×1 | 15k | 15k | read from the schematic by eye | |
| ×1 | 47k | 47k | read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| Capacitors 5 | ||||
| ×1 | 10n | 10n | read from the schematic by eye | |
| ×1 | 25u | 25u | read from the schematic by eye | |
| ×2 | 100n | 100n | read from the schematic by eye | |
| ×1 | 10u | 10u | charge-pump cap; read from the schematic by eye | |
| ×1 | 47u | 47u | -VA reservoir; read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 2 | ||||
| ×1 | OC75 | OC75 | PNP germanium; read from the schematic by eye | |
| ×2 | 2G381 | 2G381 | PNP germanium; read from the schematic by eye | |
| ICs 1 | ||||
| ×1 | TC1044SCPA | TC1044SCPA | charge pump for -9V supply; read from the schematic by eye | |
| Potentiometers 2 | ||||
| Attack | B50k | B50k | Potentiometer | read from the schematic by eye |
| Level | A500k | A500k | Potentiometer | read from the schematic by eye |
