ShredMaster

Based on the Marshall Shredmaster· 17 other boards clone it

Category
Other
Controls
Gain · Treble · Bass · Contour · Volume
Price
see vendorin stock
Tags
Marshall, Marshall, ShredMaster
Order the board at PCBWay Schematic image (CC BY-SA)

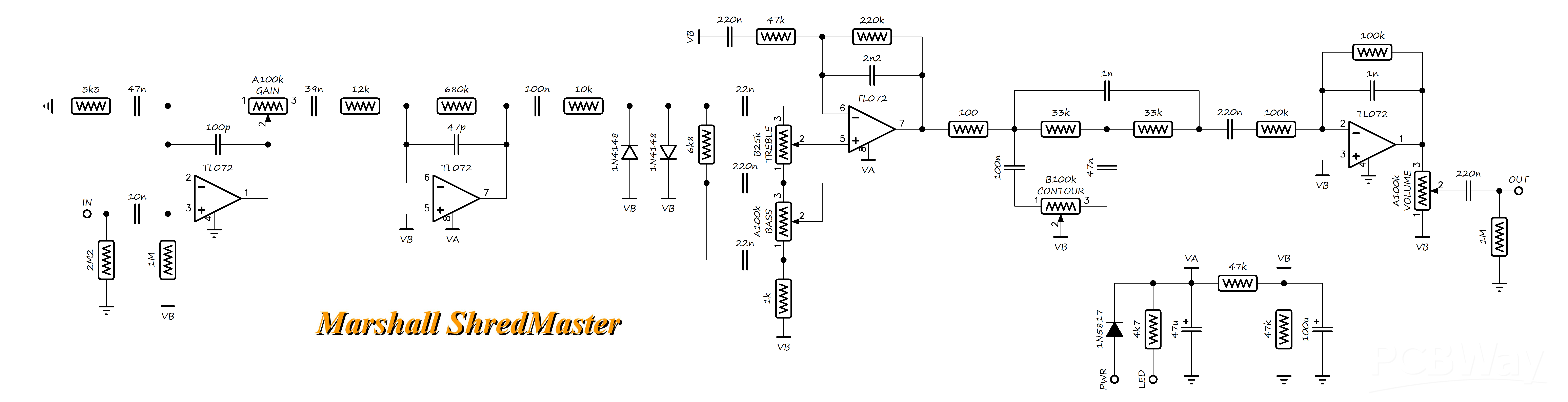

Schematic

The schematic image is on the project page. Open it at PCBWay.

Parts list 34 rows

Report a wrong parse

Got parts in a drawer? See what you can build with them.

RefValueNormalizedTypeNotes
Resistors 14
×13k33.3kread from the schematic by eye
×12M22.2Mread from the schematic by eye
×21M1Mread from the schematic by eye
×112k12kread from the schematic by eye
×1680k680kread from the schematic by eye
×110k10kread from the schematic by eye
×16k86.8kread from the schematic by eye
×11k1kread from the schematic by eye
×347k47kread from the schematic by eye
×1220k220kread from the schematic by eye
×1100100read from the schematic by eye
×233k33kread from the schematic by eye
×2100k100kread from the schematic by eye
×14k74.7kLED resistor; read from the schematic by eye
Capacitors 12
×247n47nread from the schematic by eye
×1100p100pread from the schematic by eye
×110n10nread from the schematic by eye
×139n39nread from the schematic by eye
×147p47pread from the schematic by eye
×2100n100nread from the schematic by eye
×222n22nread from the schematic by eye
×4220n220nread from the schematic by eye
×12n22.2nread from the schematic by eye
×21n1nread from the schematic by eye
×147u47uelectrolytic; read from the schematic by eye
×1100u100uelectrolytic; read from the schematic by eye
Diodes 2
×21N41481N4148clipping to VB; read from the schematic by eye
×11N58171N5817polarity protection; read from the schematic by eye
ICs 1
×2TL072TL072four op-amp sections drawn (pins 1-3 and 5-7 twice) = two dual chips; read from the schematic by eye
Potentiometers 5
GainA100kA100kPotentiometerread from the schematic by eye
TrebleB25kB25kPotentiometerread from the schematic by eye
BassA100kA100kPotentiometerread from the schematic by eye
ContourB100kB100kPotentiometerread from the schematic by eye
VolumeA100kA100kPotentiometerread from the schematic by eye
