Enclosure not stated · 2 knobs
Woodrow
Based on the Lovepedal Woodrow· 5 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Lovepedal, Lovepedal, woodrow
From the vendor
The Lovepedal Woodrow is one of the many Lovepedal designs based off of the Electra circuit, but has several component changes. It was designed to emulate the tone of a cranked Fender 5E3 Tweed Deluxe amp. While I don’t think the pedal matches that description accurately, it does have some tweedy characteristics and is a great OD pedal that works with your amp to get that ragged glorious tweed tone.

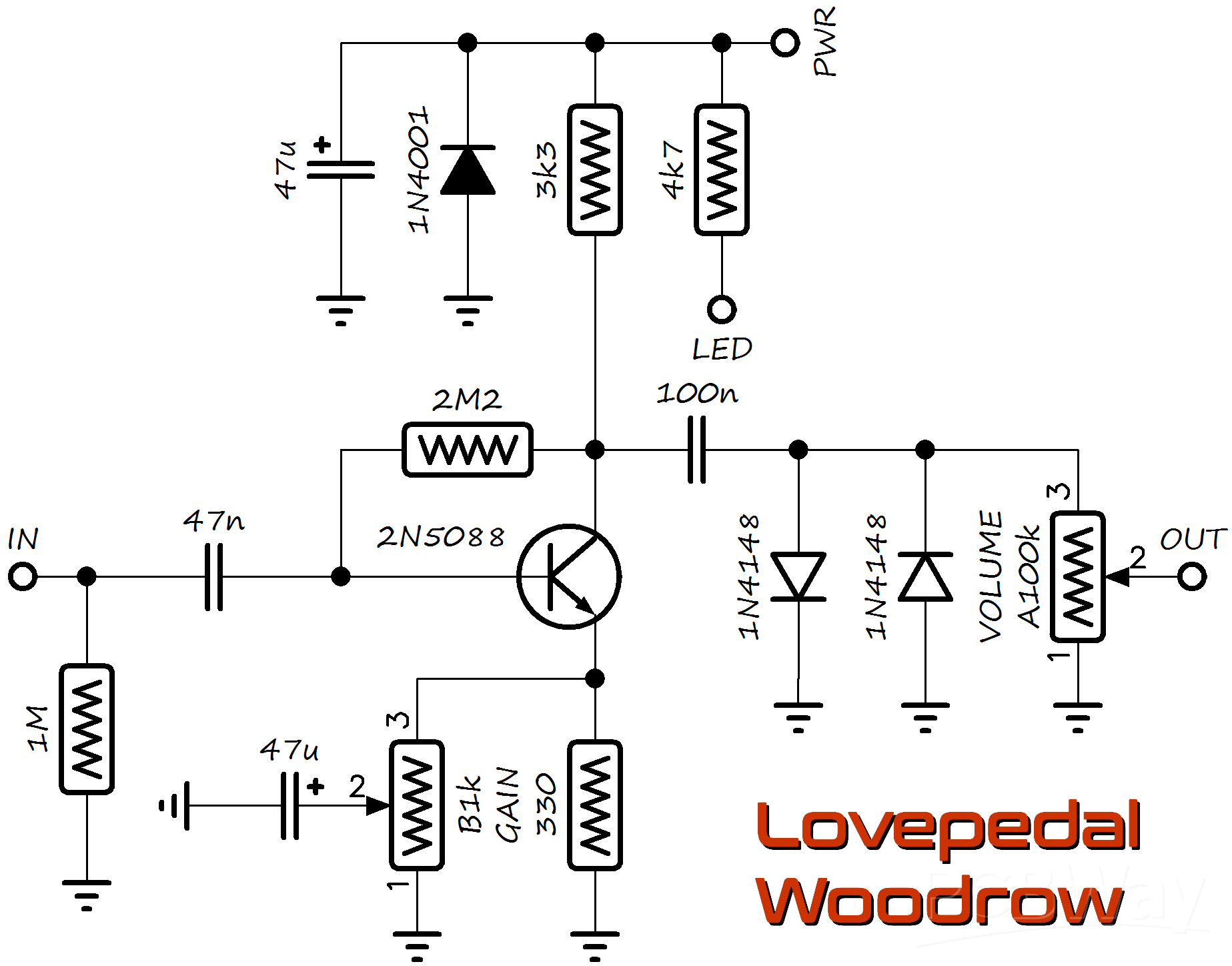

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 13 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 3k3 | 3.3k | read from the schematic by eye | |
| ×1 | 330 | 330 | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 3 | ||||
| ×2 | 47u | 47u | electrolytic; read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| Diodes 2 | ||||
| ×2 | 1N4148 | 1N4148 | clipping to ground; read from the schematic by eye | |
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | 2N5088 | 2N5088 | read from the schematic by eye | |
| Potentiometers 2 | ||||
| Gain | B1k | B1k | Potentiometer | emitter bypass via 47u; read from the schematic by eye |
| Volume | A100k | A100k | Potentiometer | read from the schematic by eye |
