Enclosure not stated · 3 knobs
Purple Plexi
Based on the Lovepedal Purple Plexi· 7 other boards clone it
- Category
- Overdrive
- Price
- see vendorin stock
- Tags
- Lovepedal, Lovepedal, Purple Plexi

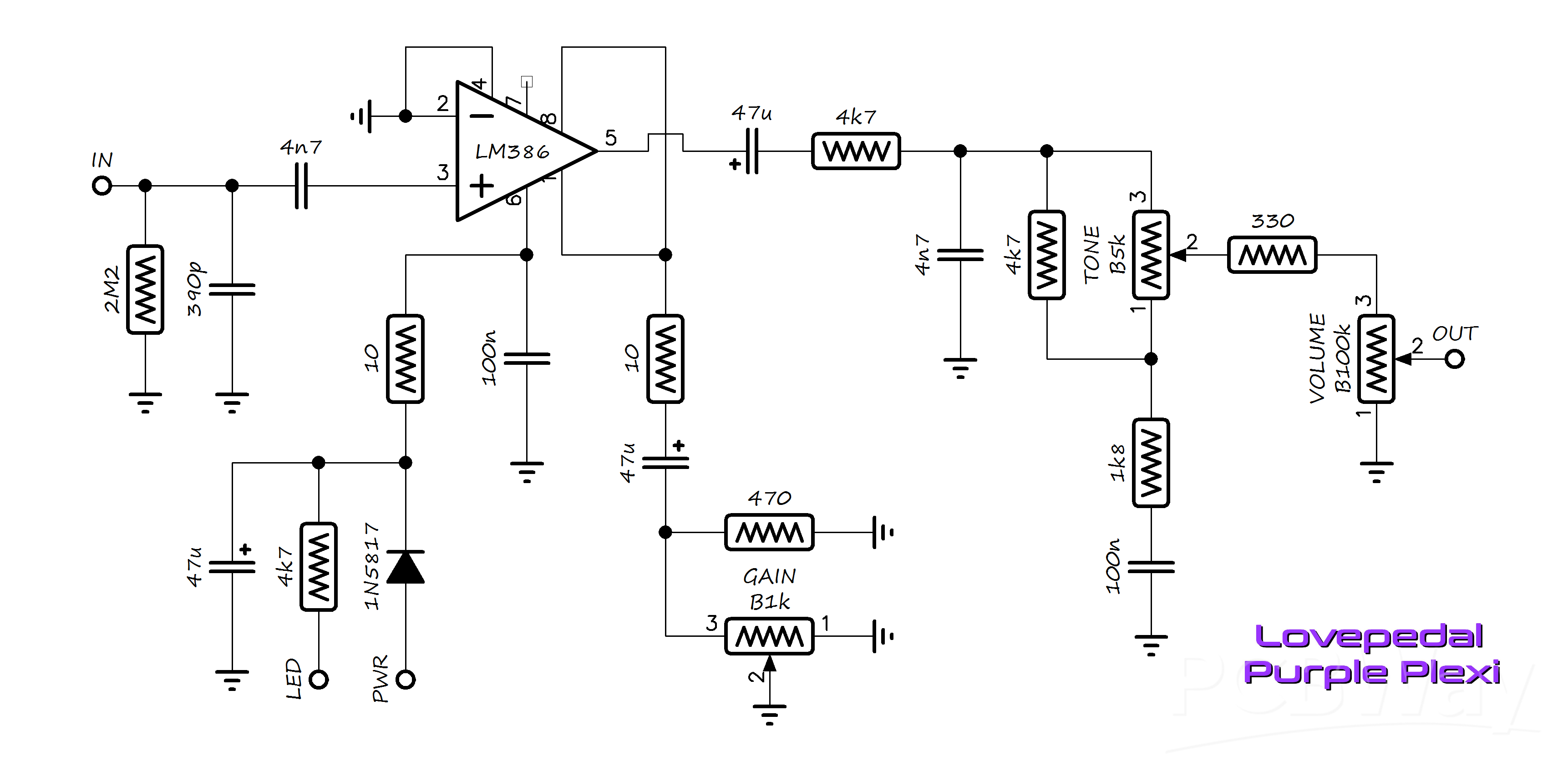

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 15 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 6 | ||||
| ×3 | 4k7 | 4.7k | one is the LED resistor; read from the schematic by eye | |
| ×2 | 10 | 10 | read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 470 | 470 | read from the schematic by eye | |
| ×1 | 330 | 330 | read from the schematic by eye | |
| ×1 | 1k8 | 1.8k | read from the schematic by eye | |
| Capacitors 4 | ||||
| ×2 | 4n7 | 4.7n | read from the schematic by eye | |
| ×2 | 100n | 100n | read from the schematic by eye | |
| ×1 | 390p | 390p | read from the schematic by eye | |
| ×3 | 47u | 47u | electrolytic; read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | reverse polarity; read from the schematic by eye | |
| ICs 1 | ||||
| ×1 | LM386 | LM386 | read from the schematic by eye | |
| Potentiometers 3 | ||||
| Gain | B1k | B1k | Potentiometer | read from the schematic by eye |
| Tone | B5k | B5k | Potentiometer | read from the schematic by eye |
| Volume | B100k | B100k | Potentiometer | read from the schematic by eye |
