Enclosure not stated · 2 knobs

Karl

Based on the Lovepedal Karl Fuzz· 5 other boards clone it

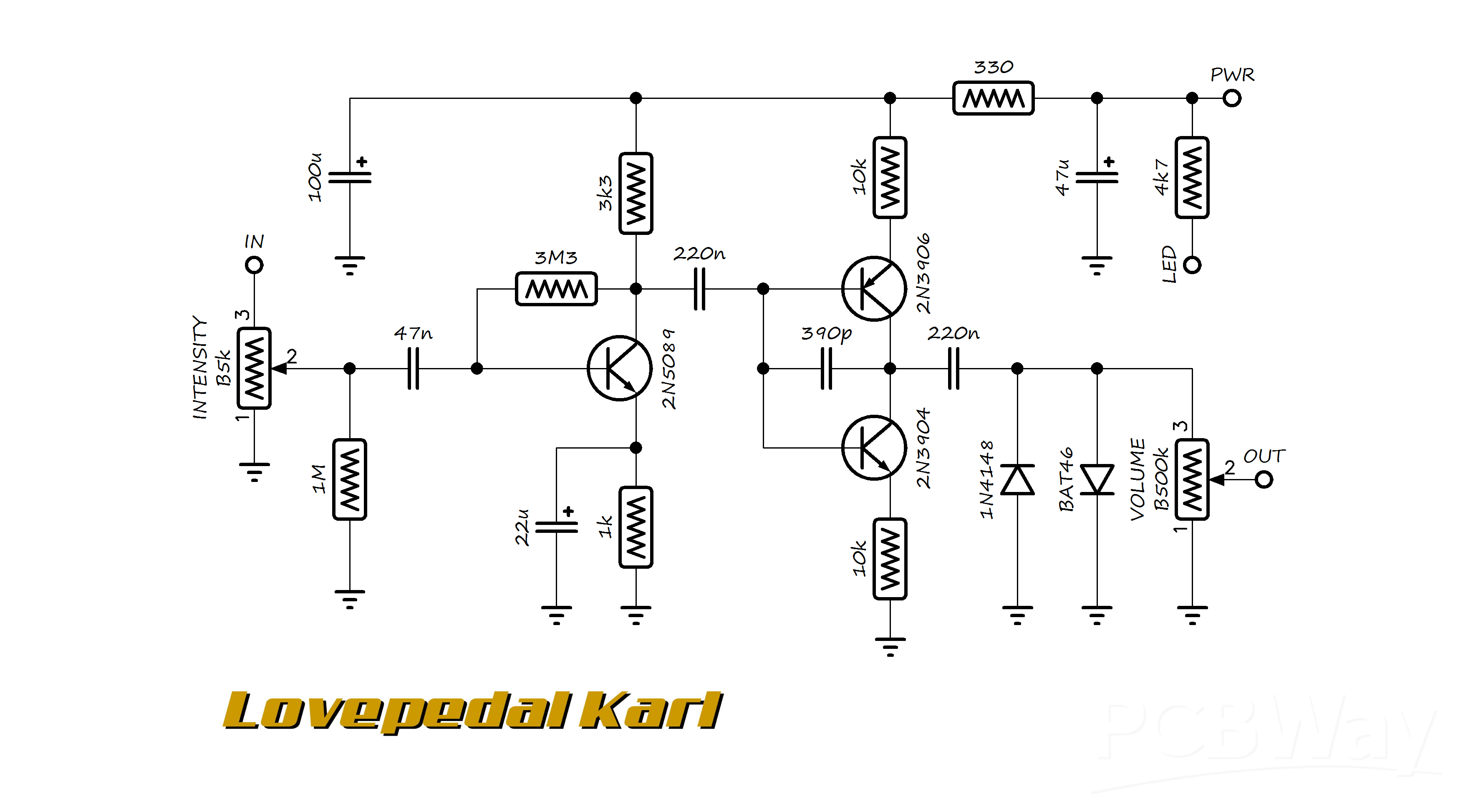

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 7
×2	10k	10k		read from the schematic by eye
×1	1M	1M		read from the schematic by eye
×1	3M3	3.3M		read from the schematic by eye
×1	3k3	3.3k		read from the schematic by eye
×1	1k	1k		read from the schematic by eye
×1	330	330		supply filter resistor; read from the schematic by eye
×1	4k7	4.7k		LED resistor; read from the schematic by eye
Capacitors 6
×2	220n	220n		read from the schematic by eye
×1	47n	47n		read from the schematic by eye
×1	390p	390p		read from the schematic by eye
×1	22u	22u		electrolytic; read from the schematic by eye
×1	47u	47u		electrolytic; read from the schematic by eye
×1	100u	100u		electrolytic; read from the schematic by eye
Diodes 2
×1	1N4148	1N4148		clipping to ground; read from the schematic by eye
×1	BAT46	BAT46		clipping to ground; read from the schematic by eye
Transistors 3
×1	2N5089	2N5089		read from the schematic by eye
×1	2N3906	2N3906		read from the schematic by eye
×1	2N3904	2N3904		read from the schematic by eye
Potentiometers 2
Intensity	B5k	B5k	Potentiometer	input pot ahead of the first stage; read from the schematic by eye
Volume	B500k	B500k	Potentiometer	read from the schematic by eye
