Enclosure not stated · 2 knobs

Englishman

Based on the Lovepedal Englishman· 7 other boards clone it

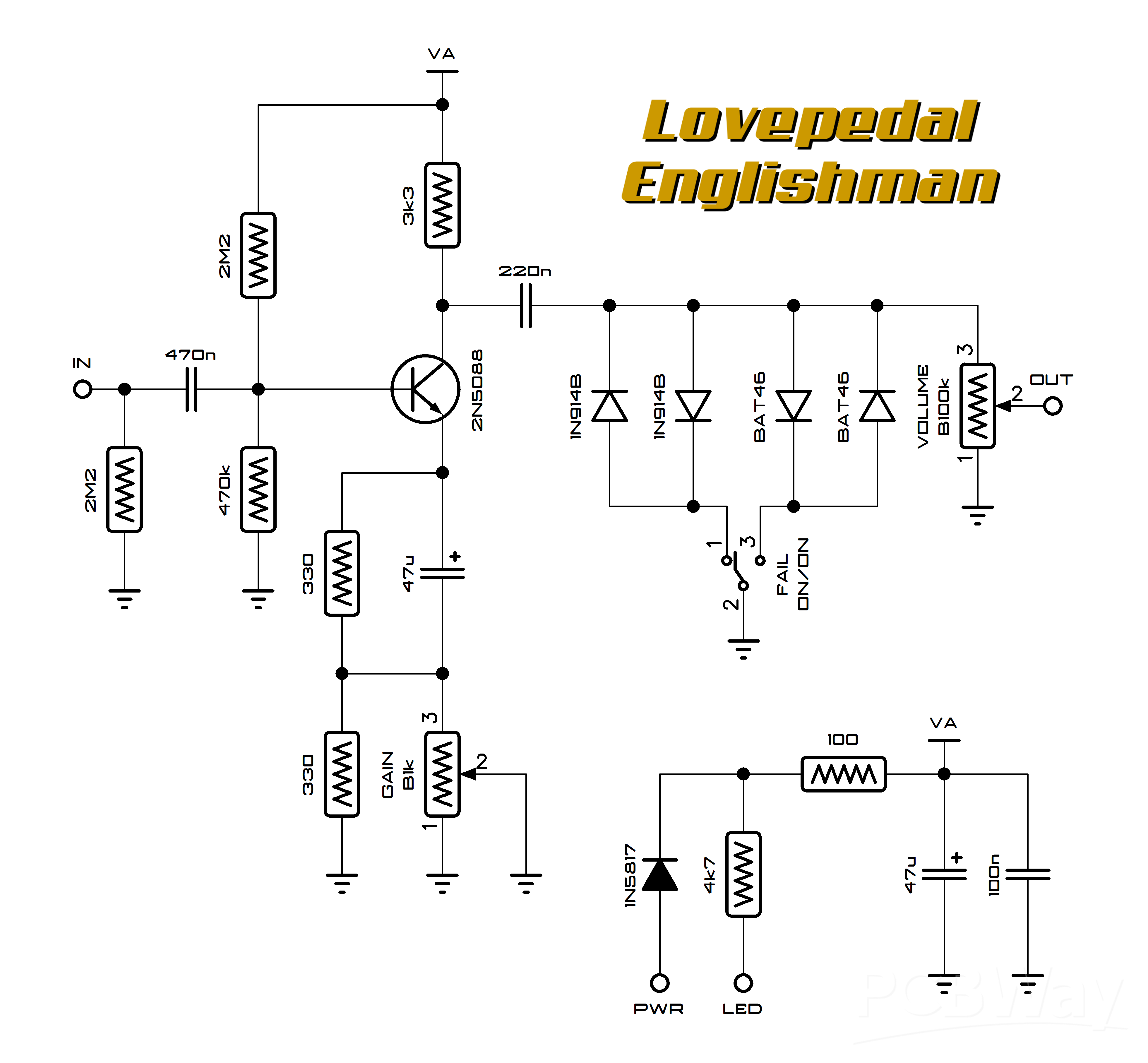

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 6
×2	2M2	2.2M		read from the schematic by eye
×2	330	330		read from the schematic by eye
×1	470k	470k		read from the schematic by eye
×1	3k3	3.3k		read from the schematic by eye
×1	4k7	4.7k		LED resistor; read from the schematic by eye
×1	100	100		supply filter; read from the schematic by eye
Capacitors 4
×2	47u	47u		electrolytic; read from the schematic by eye
×1	470n	470n		read from the schematic by eye
×1	220n	220n		read from the schematic by eye
×1	100n	100n		read from the schematic by eye
Diodes 3
×2	1N914B	1N914B		clipping, switch position 1; read from the schematic by eye
×2	BAT46	BAT46		clipping, switch position 3; read from the schematic by eye
×1	1N5817	1N5817		reverse polarity; read from the schematic by eye
Transistors 1
×1	2N5088	2N5088		read from the schematic by eye
Potentiometers 2
Gain	B1k	B1k	Potentiometer	wired as rheostat to ground; read from the schematic by eye
Volume	B100k	B100k	Potentiometer	read from the schematic by eye
Switches 1
Fail	SPDT	SPDT		ON/ON, selects silicon or Schottky clipping pair; read from the schematic by eye
