Enclosure not stated · 5 knobs
Angry Charlie V3
Based on the JHS Angry Charlie V3· 6 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- JHS, JHS, Angry Charlie

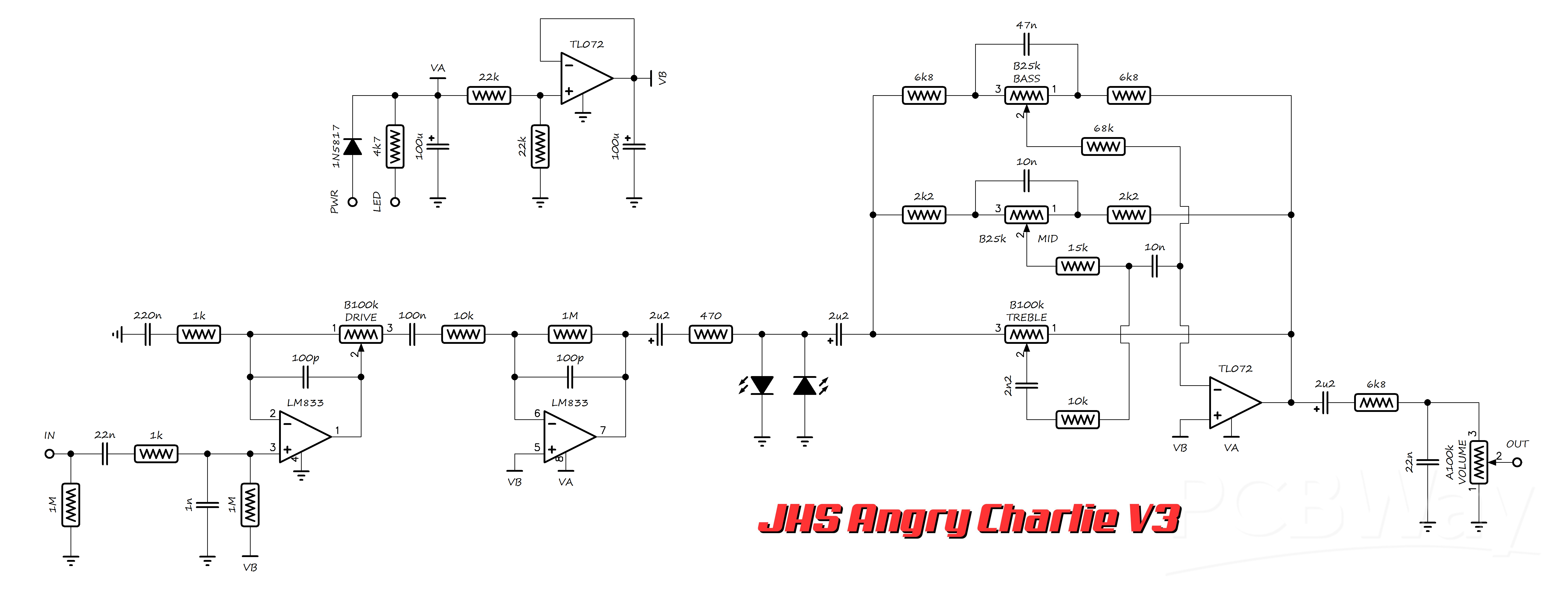

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 29 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 10 | ||||
| ×3 | 1M | 1M | read from the schematic by eye | |
| ×3 | 6k8 | 6.8k | read from the schematic by eye | |
| ×2 | 1k | 1k | read from the schematic by eye | |
| ×2 | 10k | 10k | read from the schematic by eye | |
| ×2 | 2k2 | 2.2k | read from the schematic by eye | |
| ×2 | 22k | 22k | bias divider; read from the schematic by eye | |
| ×1 | 470 | 470 | read from the schematic by eye | |
| ×1 | 68k | 68k | read from the schematic by eye | |
| ×1 | 15k | 15k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 10 | ||||
| ×3 | 2u2 | 2.2u | electrolytic; read from the schematic by eye | |
| ×2 | 22n | 22n | read from the schematic by eye | |
| ×2 | 100p | 100p | read from the schematic by eye | |
| ×2 | 10n | 10n | read from the schematic by eye | |
| ×2 | 100u | 100u | electrolytic; read from the schematic by eye | |
| ×1 | 1n | 1n | read from the schematic by eye | |
| ×1 | 220n | 220n | read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 2n2 | 2.2n | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | reverse polarity; read from the schematic by eye | |
| ICs 2 | ||||
| ×1 | LM833 | LM833 | both halves: two gain stages; read from the schematic by eye | |
| ×1 | TL072 | TL072 | two sections drawn: VB buffer and tone-stack recovery stage; read from the schematic by eye | |
| Potentiometers 5 | ||||
| Drive | B100k | B100k | Potentiometer | read from the schematic by eye |
| Bass | B25k | B25k | Potentiometer | read from the schematic by eye |
| Mid | B25k | B25k | Potentiometer | read from the schematic by eye |
| Treble | B100k | B100k | Potentiometer | read from the schematic by eye |
| Volume | A100k | A100k | Potentiometer | read from the schematic by eye |
| LEDs 1 | ||||
| ×2 | LED | LED | clipping LEDs to ground; read from the schematic by eye | |
