Enclosure not stated · 3 knobs

Andy Timmons Drive

Based on the JHS Andy Timmons Drive· 2 other boards clone it

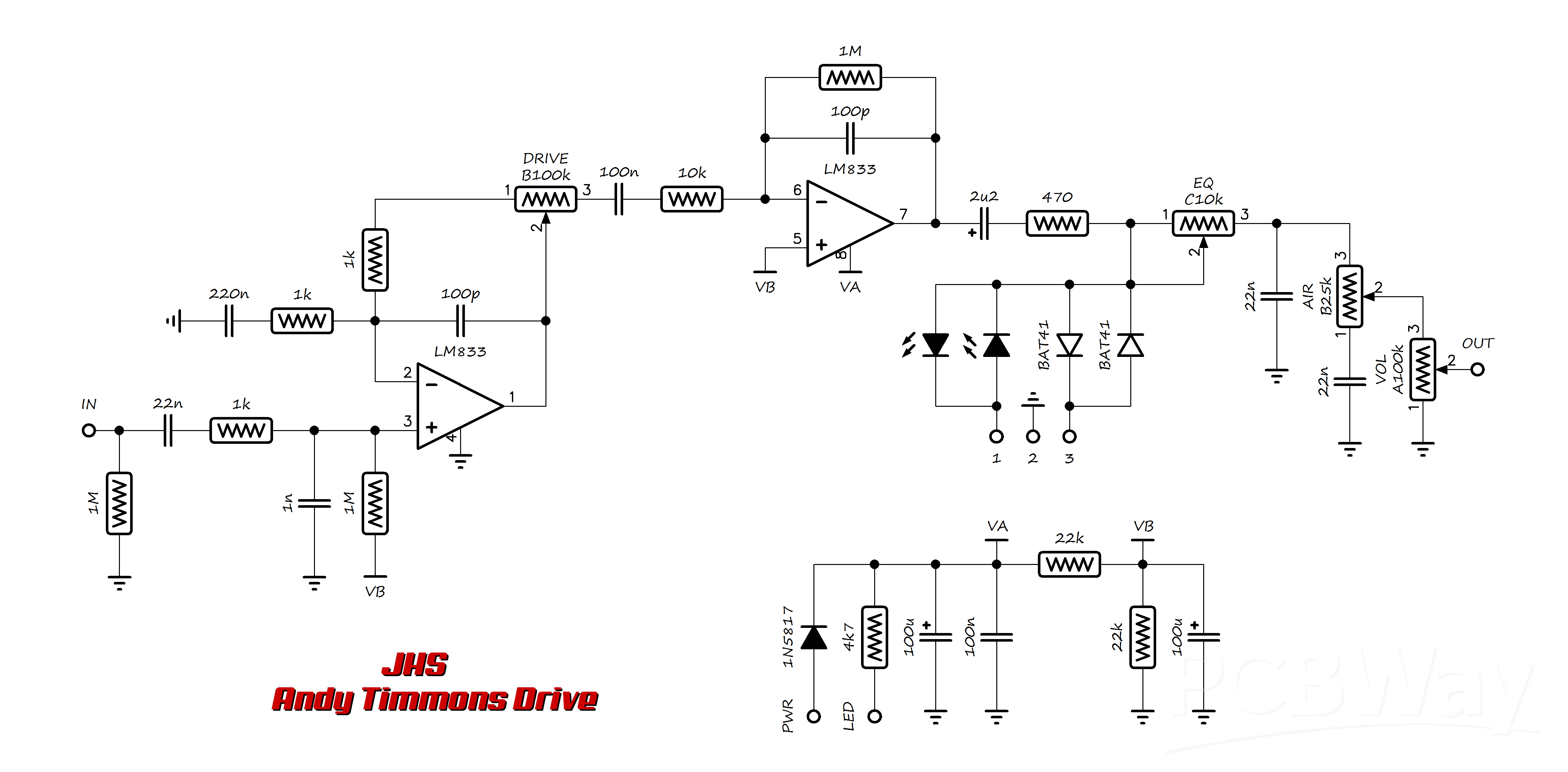

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 6
×3	1M	1M		read from the schematic by eye
×3	1k	1k		read from the schematic by eye
×2	22k	22k		read from the schematic by eye
×1	10k	10k		read from the schematic by eye
×1	470	470		read from the schematic by eye
×1	4k7	4.7k		LED resistor; read from the schematic by eye
Capacitors 7
×3	22n	22n		read from the schematic by eye
×2	100p	100p		read from the schematic by eye
×2	100n	100n		read from the schematic by eye
×2	100u	100u		electrolytic; read from the schematic by eye
×1	1n	1n		read from the schematic by eye
×1	220n	220n		read from the schematic by eye
×1	2u2	2.2u		electrolytic; read from the schematic by eye
Diodes 2
×2	BAT41	BAT41		clipping diodes; read from the schematic by eye
×1	1N5817	1N5817		reverse polarity; read from the schematic by eye
ICs 1
×1	LM833	LM833		two sections of one dual op-amp; read from the schematic by eye
Potentiometers 4
Drive	B100k	B100k	Potentiometer	read from the schematic by eye
EQ	C10k	C10k	Potentiometer	read from the schematic by eye
Air	B25k	B25k	Potentiometer	read from the schematic by eye
Vol	A100k	A100k	Potentiometer	read from the schematic by eye
LEDs 1
×2	LED	LED		clipping LEDs, no colour drawn; read from the schematic by eye
