Enclosure not stated · 4 knobs

Monarch

Based on the EarthQuaker Devices Monarch· 7 other boards clone it

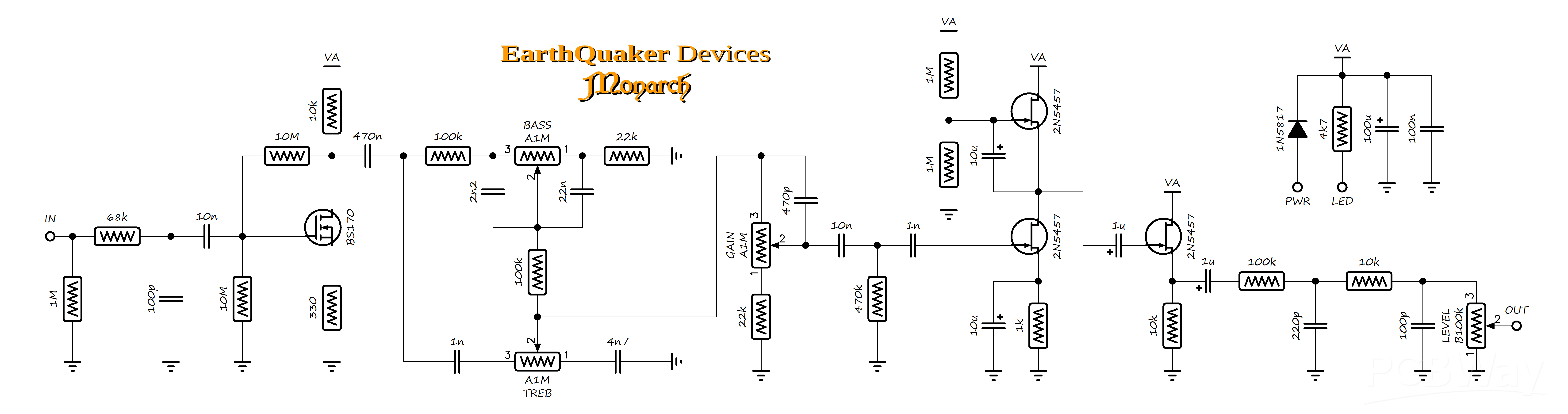

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 10
×3	1M	1M		read from the schematic by eye
×3	10k	10k		read from the schematic by eye
×3	100k	100k		read from the schematic by eye
×2	10M	10M		read from the schematic by eye
×2	22k	22k		read from the schematic by eye
×1	68k	68k		read from the schematic by eye
×1	330	330		read from the schematic by eye
×1	470k	470k		read from the schematic by eye
×1	1k	1k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
Capacitors 13
×2	100p	100p		read from the schematic by eye
×2	10n	10n		read from the schematic by eye
×2	1n	1n		read from the schematic by eye
×2	10u	10u		read from the schematic by eye
×2	1u	1u		read from the schematic by eye
×1	470n	470n		read from the schematic by eye
×1	2n2	2.2n		read from the schematic by eye
×1	22n	22n		read from the schematic by eye
×1	4n7	4.7n		read from the schematic by eye
×1	470p	470p		read from the schematic by eye
×1	220p	220p		read from the schematic by eye
×1	100u	100u		read from the schematic by eye
×1	100n	100n		read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
Transistors 2
×1	BS170	BS170		read from the schematic by eye
×3	2N5457	2N5457		read from the schematic by eye
Potentiometers 4
Bass	A1M	A1M	Potentiometer	read from the schematic by eye
Treb	A1M	A1M	Potentiometer	read from the schematic by eye
Gain	A1M	A1M	Potentiometer	read from the schematic by eye
Level	B100k	B100k	Potentiometer	read from the schematic by eye
