Enclosure not stated · 2 knobs
TD-X
Based on the Buffalo Fx TD-X· 4 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Buffalo FX

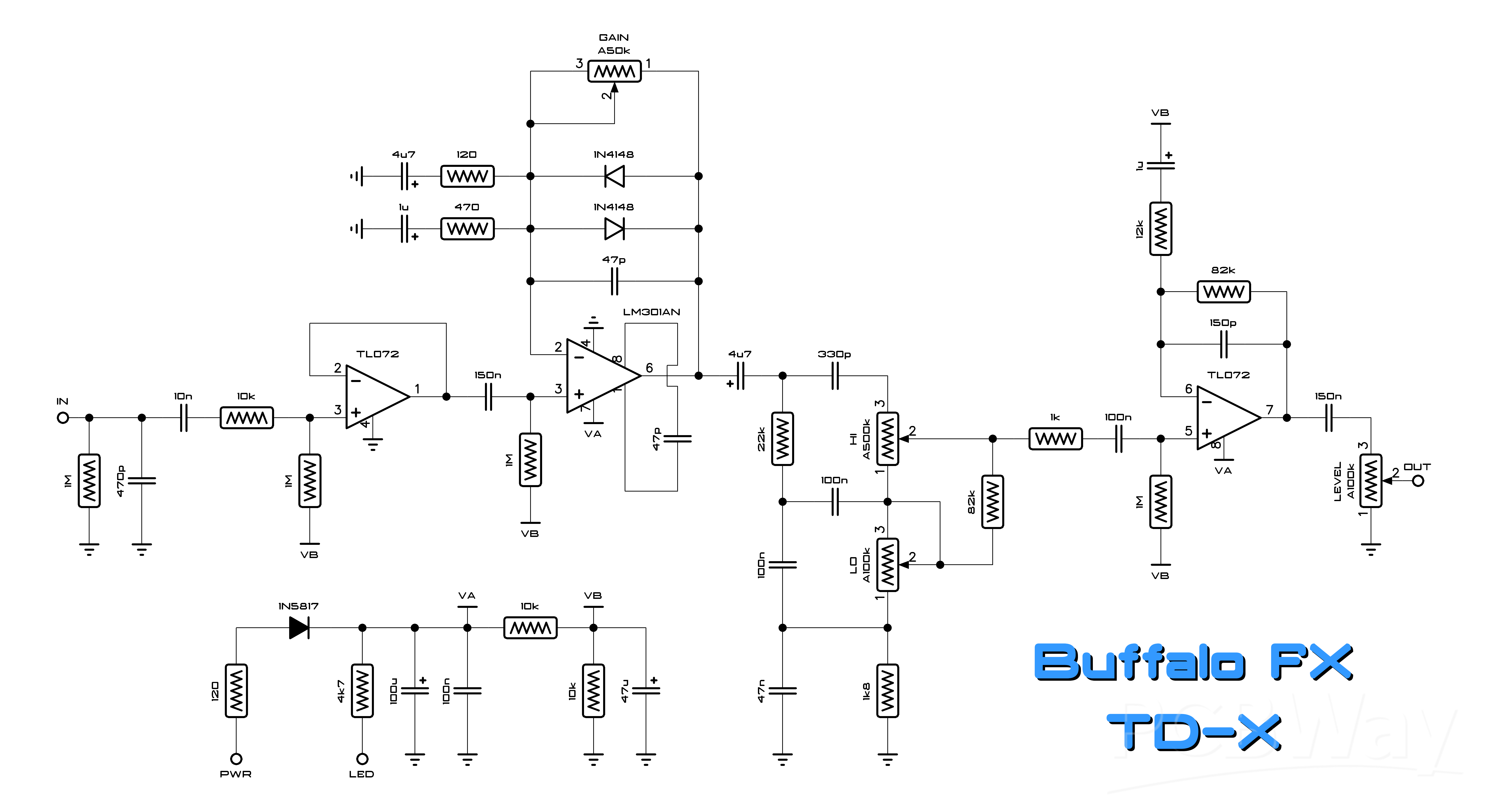

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 30 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 10 | ||||
| ×4 | 1M | 1M | read from the schematic by eye | |
| ×3 | 10k | 10k | read from the schematic by eye | |
| ×2 | 120 | 120 | one in gain leg, one in power input; read from the schematic by eye | |
| ×1 | 470 | 470 | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| ×1 | 1k8 | 1.8k | read from the schematic by eye | |
| ×2 | 82k | 82k | read from the schematic by eye | |
| ×1 | 1k | 1k | read from the schematic by eye | |
| ×1 | 12k | 12k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 12 | ||||
| ×1 | 10n | 10n | read from the schematic by eye | |
| ×1 | 470p | 470p | read from the schematic by eye | |
| ×2 | 150n | 150n | read from the schematic by eye | |
| ×2 | 4u7 | 4.7u | electrolytic; read from the schematic by eye | |
| ×2 | 1u | 1u | electrolytic; read from the schematic by eye | |
| ×2 | 47p | 47p | one feedback, one LM301 compensation; read from the schematic by eye | |
| ×1 | 330p | 330p | read from the schematic by eye | |
| ×4 | 100n | 100n | read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 150p | 150p | read from the schematic by eye | |
| ×1 | 100u | 100u | electrolytic; read from the schematic by eye | |
| ×1 | 47u | 47u | electrolytic; read from the schematic by eye | |
| Diodes 2 | ||||
| ×2 | 1N4148 | 1N4148 | read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| ICs 2 | ||||
| ×1 | TL072 | TL072 | both halves used; read from the schematic by eye | |
| ×1 | LM301AN | LM301AN | read from the schematic by eye | |
| Potentiometers 4 | ||||
| Gain | A50k | A50k | Potentiometer | read from the schematic by eye |
| Hi | A500k | A500k | Potentiometer | read from the schematic by eye |
| Lo | A100k | A100k | Potentiometer | read from the schematic by eye |
| Level | A100k | A100k | Potentiometer | read from the schematic by eye |
