Enclosure not stated · 3 knobs
Dyna Red Distortion
Based on the BearFoot FX Dyna Red Distortion· 3 other boards clone it
- Category
- Distortion
- Price
- see vendorin stock
- Tags
- Bearfoot, Distortion, Guitar pedal, Bearfoot, Dyna Red Distortion
From the vendor
The Dyna Red is a classic distortion that immediatley sounds familiar. What sets the DRD apart is that it also manages to mimic the FEEL of a healthy plexibasketweaver.While it is known for its crunchy classic rock distortion - it also has a very tasty just above driven sound that really shows off its dynamic abilities.

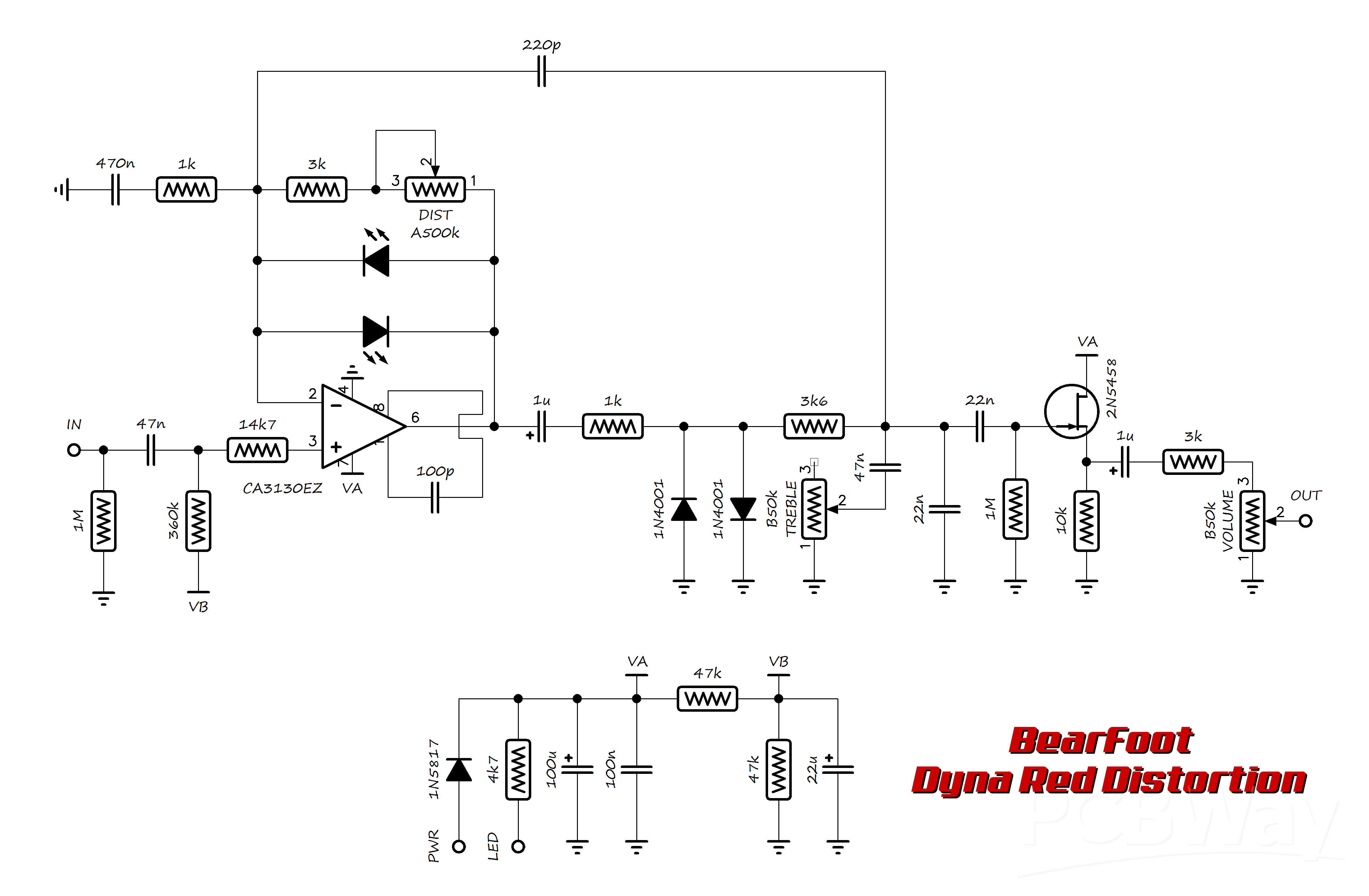

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 26 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 9 | ||||
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×2 | 1k | 1k | read from the schematic by eye | |
| ×2 | 3k | 3k | read from the schematic by eye | |
| ×2 | 47k | 47k | read from the schematic by eye | |
| ×1 | 360k | 360k | read from the schematic by eye | |
| ×1 | 14k7 | 14.7k | read from the schematic by eye | |
| ×1 | 3k6 | 3.6k | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 9 | ||||
| ×2 | 47n | 47n | read from the schematic by eye | |
| ×2 | 1u | 1u | electrolytic; read from the schematic by eye | |
| ×2 | 22n | 22n | read from the schematic by eye | |
| ×1 | 470n | 470n | read from the schematic by eye | |
| ×1 | 220p | 220p | read from the schematic by eye | |
| ×1 | 100p | 100p | read from the schematic by eye | |
| ×1 | 100u | 100u | electrolytic; read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| ×1 | 22u | 22u | electrolytic; read from the schematic by eye | |
| Diodes 2 | ||||
| ×2 | 1N4001 | 1N4001 | clipping to ground; read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | reverse-polarity protection; read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | 2N5458 | 2N5458 | JFET output buffer; read from the schematic by eye | |
| ICs 1 | ||||
| ×1 | CA3130EZ | CA3130EZ | read from the schematic by eye | |
| Potentiometers 3 | ||||
| Dist | A500k | A500k | Potentiometer | read from the schematic by eye |
| Treble | B50k | B50k | Potentiometer | read from the schematic by eye |
| Volume | B50k | B50k | Potentiometer | read from the schematic by eye |
| LEDs 1 | ||||
| ×2 | LED | LED | anti-parallel clipping LEDs in the op-amp feedback; no colour drawn; read from the schematic by eye | |
