Enclosure not stated · 6 knobs
Triple Wreck
Based on the Wampler Triple Wreck· 9 other boards clone it
- Category
- Distortion
- Price
- see vendorin stock
- Tags
- Wampler, Guitar pedal, Amp Emulator, Distortion, Triple Wreck, Wampler, boost
From the vendor
Triple Wreck is a high gain distortion that, by its nature, is very much like some kind of metal cutting amplifier that has been proven over the years. Some will immediately recognize and decide that they are listening to some 5150. And all thanks to the sensitivity and dynamics that are more likely characteristic of a lamp head.

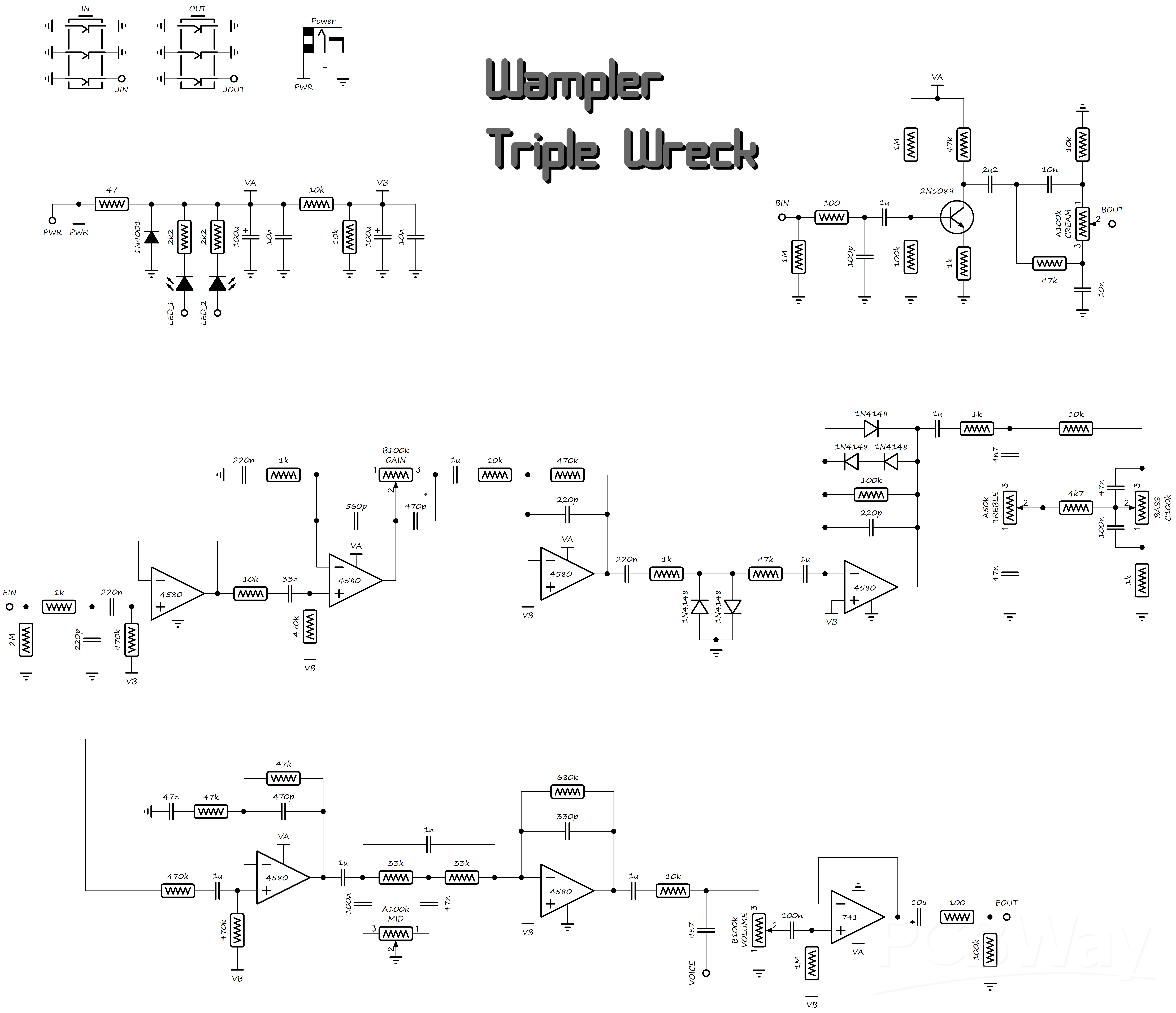

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 41 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
Check before you build · 2 values the reader of this schematic was not sure of
- 470p marked * near the Gain pot may be optional
- VOICE switch is only a pad, not counted
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 13 | ||||
| ×7 | 10k | 10k | read from the schematic by eye | |
| ×6 | 1k | 1k | read from the schematic by eye | |
| ×5 | 47k | 47k | read from the schematic by eye | |
| ×5 | 470k | 470k | read from the schematic by eye | |
| ×3 | 100k | 100k | read from the schematic by eye | |
| ×3 | 1M | 1M | read from the schematic by eye | |
| ×2 | 100 | 100 | read from the schematic by eye | |
| ×2 | 2k2 | 2.2k | LED resistors; read from the schematic by eye | |
| ×2 | 33k | 33k | read from the schematic by eye | |
| ×1 | 47 | 47 | read from the schematic by eye | |
| ×1 | 2M | 2M | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| ×1 | 680k | 680k | read from the schematic by eye | |
| Capacitors 16 | ||||
| ×7 | 1u | 1u | read from the schematic by eye | |
| ×4 | 10n | 10n | read from the schematic by eye | |
| ×4 | 47n | 47n | read from the schematic by eye | |
| ×3 | 220p | 220p | read from the schematic by eye | |
| ×3 | 220n | 220n | read from the schematic by eye | |
| ×3 | 100n | 100n | read from the schematic by eye | |
| ×2 | 100u | 100u | read from the schematic by eye | |
| ×2 | 470p | 470p | one marked * (optional/selectable); read from the schematic by eye | |
| ×2 | 4n7 | 4.7n | one goes to the VOICE pad; read from the schematic by eye | |
| ×1 | 100p | 100p | read from the schematic by eye | |
| ×1 | 2u2 | 2.2u | read from the schematic by eye | |
| ×1 | 33n | 33n | read from the schematic by eye | |
| ×1 | 560p | 560p | read from the schematic by eye | |
| ×1 | 1n | 1n | read from the schematic by eye | |
| ×1 | 330p | 330p | read from the schematic by eye | |
| ×1 | 10u | 10u | read from the schematic by eye | |
| Diodes 2 | ||||
| ×5 | 1N4148 | 1N4148 | read from the schematic by eye | |
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | 2N5089 | 2N5089 | booster; read from the schematic by eye | |
| ICs 2 | ||||
| ×3 | 4580 | 4580 | six op-amp sections drawn; read from the schematic by eye | |
| ×1 | 741 | 741 | output buffer; read from the schematic by eye | |
| Potentiometers 6 | ||||
| Gain | B100k | B100k | Potentiometer | read from the schematic by eye |
| Treble | A50k | A50k | Potentiometer | read from the schematic by eye |
| Bass | C100k | C100k | Potentiometer | read from the schematic by eye |
| Mid | A100k | A100k | Potentiometer | read from the schematic by eye |
| Volume | B100k | B100k | Potentiometer | read from the schematic by eye |
| Cream | A100k | A100k | Potentiometer | booster side; read from the schematic by eye |
| LEDs 1 | ||||
| ×2 | LED | LED | two indicator LEDs drawn as symbols (LED_1, LED_2); read from the schematic by eye | |
