Enclosure not stated · 4 knobs
Faux Analog Echo
Based on the Wampler Faux Analog Echo· 5 other boards clone it
- Category
- Delay
- Price
- see vendorin stock
- Tags
- Wampler

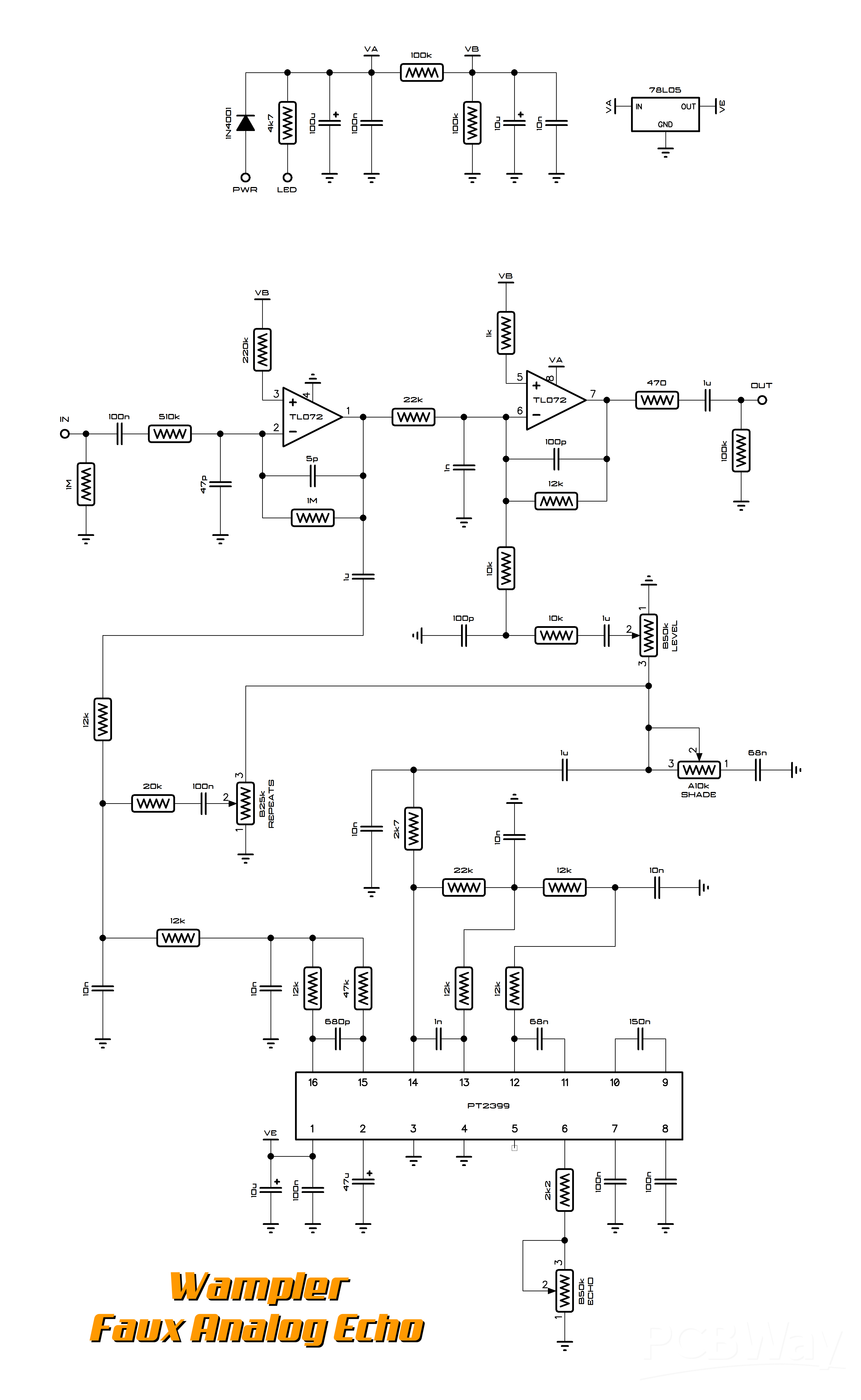

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 35 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 14 | ||||
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| ×3 | 100k | 100k | read from the schematic by eye | |
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×1 | 510k | 510k | read from the schematic by eye | |
| ×1 | 220k | 220k | read from the schematic by eye | |
| ×2 | 22k | 22k | read from the schematic by eye | |
| ×1 | 1k | 1k | read from the schematic by eye | |
| ×7 | 12k | 12k | read from the schematic by eye | |
| ×2 | 10k | 10k | read from the schematic by eye | |
| ×1 | 470 | 470 | read from the schematic by eye | |
| ×1 | 20k | 20k | read from the schematic by eye | |
| ×1 | 47k | 47k | read from the schematic by eye | |
| ×1 | 2k7 | 2.7k | read from the schematic by eye | |
| ×1 | 2k2 | 2.2k | read from the schematic by eye | |
| Capacitors 13 | ||||
| ×1 | 100u | 100u | read from the schematic by eye | |
| ×6 | 100n | 100n | read from the schematic by eye | |
| ×2 | 10u | 10u | read from the schematic by eye | |
| ×6 | 10n | 10n | read from the schematic by eye | |
| ×1 | 47p | 47p | read from the schematic by eye | |
| ×1 | 5p | 5p | read from the schematic by eye | |
| ×4 | 1u | 1u | read from the schematic by eye | |
| ×2 | 1n | 1n | read from the schematic by eye | |
| ×2 | 100p | 100p | read from the schematic by eye | |
| ×2 | 68n | 68n | read from the schematic by eye | |
| ×1 | 680p | 680p | read from the schematic by eye | |
| ×1 | 150n | 150n | read from the schematic by eye | |
| ×1 | 47u | 47u | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| ICs 3 | ||||
| ×1 | TL072 | TL072 | both sections used; read from the schematic by eye | |
| ×1 | PT2399 | PT2399 | read from the schematic by eye | |
| ×1 | 78L05 | 78L05 | 5V regulator for PT2399; read from the schematic by eye | |
| Potentiometers 4 | ||||
| Level | B50k | B50k | Potentiometer | read from the schematic by eye |
| Repeats | B25k | B25k | Potentiometer | read from the schematic by eye |
| Shade | A10k | A10k | Potentiometer | read from the schematic by eye |
| Echo | B50k | B50k | Potentiometer | delay time, rheostat; read from the schematic by eye |
