Enclosure not stated · 5 knobs
The Duchess
Based on the Victory Amps V1 The Duchess· 2 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Victory V1

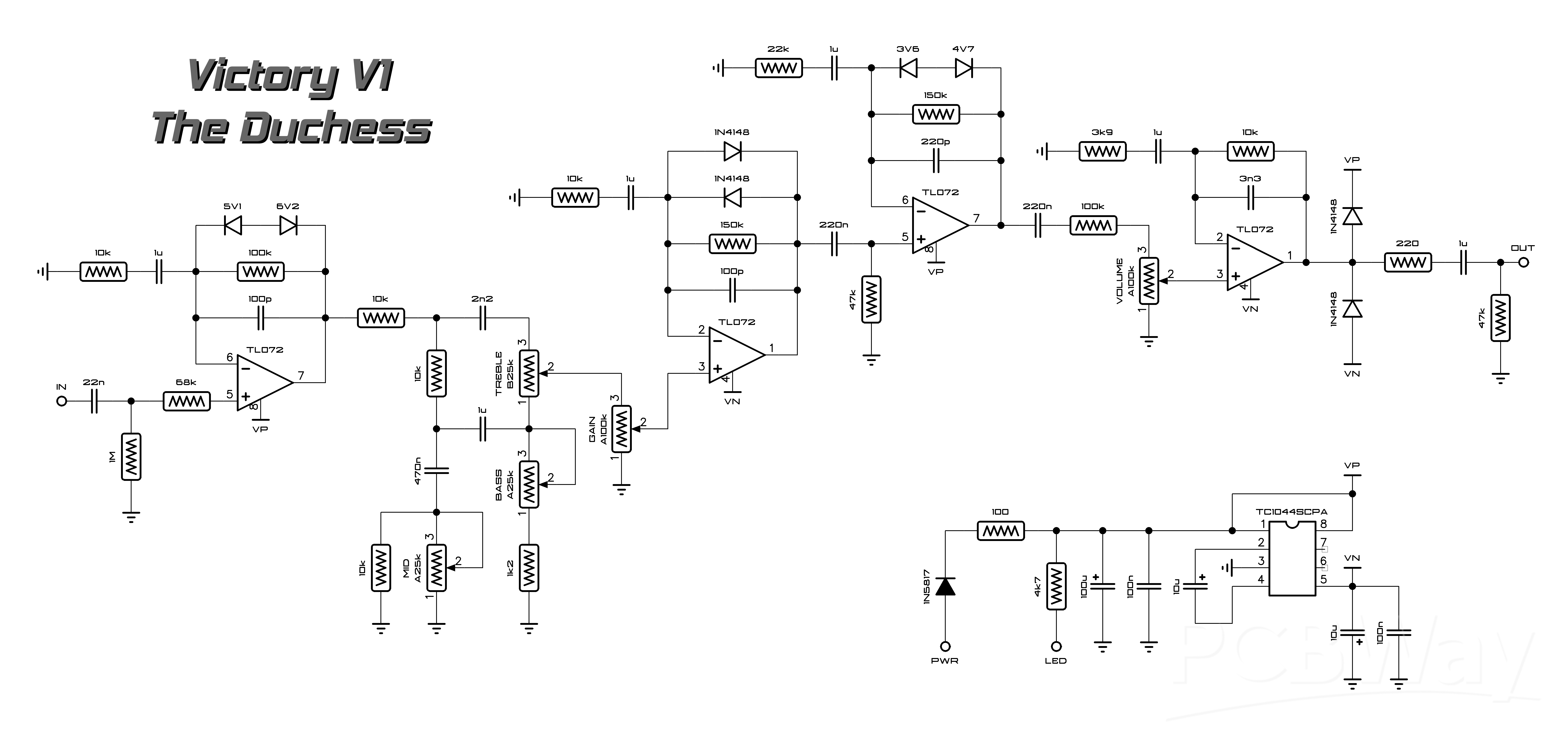

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 36 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 12 | ||||
| ×6 | 10k | 10k | read from the schematic by eye | |
| ×2 | 100k | 100k | read from the schematic by eye | |
| ×2 | 150k | 150k | read from the schematic by eye | |
| ×2 | 47k | 47k | read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 68k | 68k | read from the schematic by eye | |
| ×1 | 1k2 | 1.2k | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| ×1 | 3k9 | 3.9k | read from the schematic by eye | |
| ×1 | 220 | 220 | read from the schematic by eye | |
| ×1 | 100 | 100 | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 11 | ||||
| ×6 | 1u | 1u | read from the schematic by eye | |
| ×2 | 100p | 100p | read from the schematic by eye | |
| ×2 | 220n | 220n | read from the schematic by eye | |
| ×2 | 100n | 100n | read from the schematic by eye | |
| ×2 | 10u | 10u | read from the schematic by eye | |
| ×1 | 22n | 22n | read from the schematic by eye | |
| ×1 | 2n2 | 2.2n | read from the schematic by eye | |
| ×1 | 470n | 470n | read from the schematic by eye | |
| ×1 | 220p | 220p | read from the schematic by eye | |
| ×1 | 3n3 | 3.3n | read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| Diodes 6 | ||||
| ×4 | 1N4148 | 1N4148 | read from the schematic by eye | |
| ×1 | 5V1 | 5V1 | zener; read from the schematic by eye | |
| ×1 | 6V2 | 6V2 | zener; read from the schematic by eye | |
| ×1 | 3V6 | 3V6 | zener; read from the schematic by eye | |
| ×1 | 4V7 | 4V7 | zener; read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| ICs 2 | ||||
| ×2 | TL072 | TL072 | four op-amp sections drawn; read from the schematic by eye | |
| ×1 | TC1044SCPA | TC1044SCPA | charge pump for the negative rail; read from the schematic by eye | |
| Potentiometers 5 | ||||
| Treble | B25k | B25k | Potentiometer | read from the schematic by eye |
| Bass | A25k | A25k | Potentiometer | read from the schematic by eye |
| Mid | A25k | A25k | Potentiometer | read from the schematic by eye |
| Gain | A100k | A100k | Potentiometer | read from the schematic by eye |
| Volume | A100k | A100k | Potentiometer | read from the schematic by eye |
