Enclosure not stated · 4 knobs

Tremolo

Based on the CultureJam Shoot the Moon· 4 other boards clone it

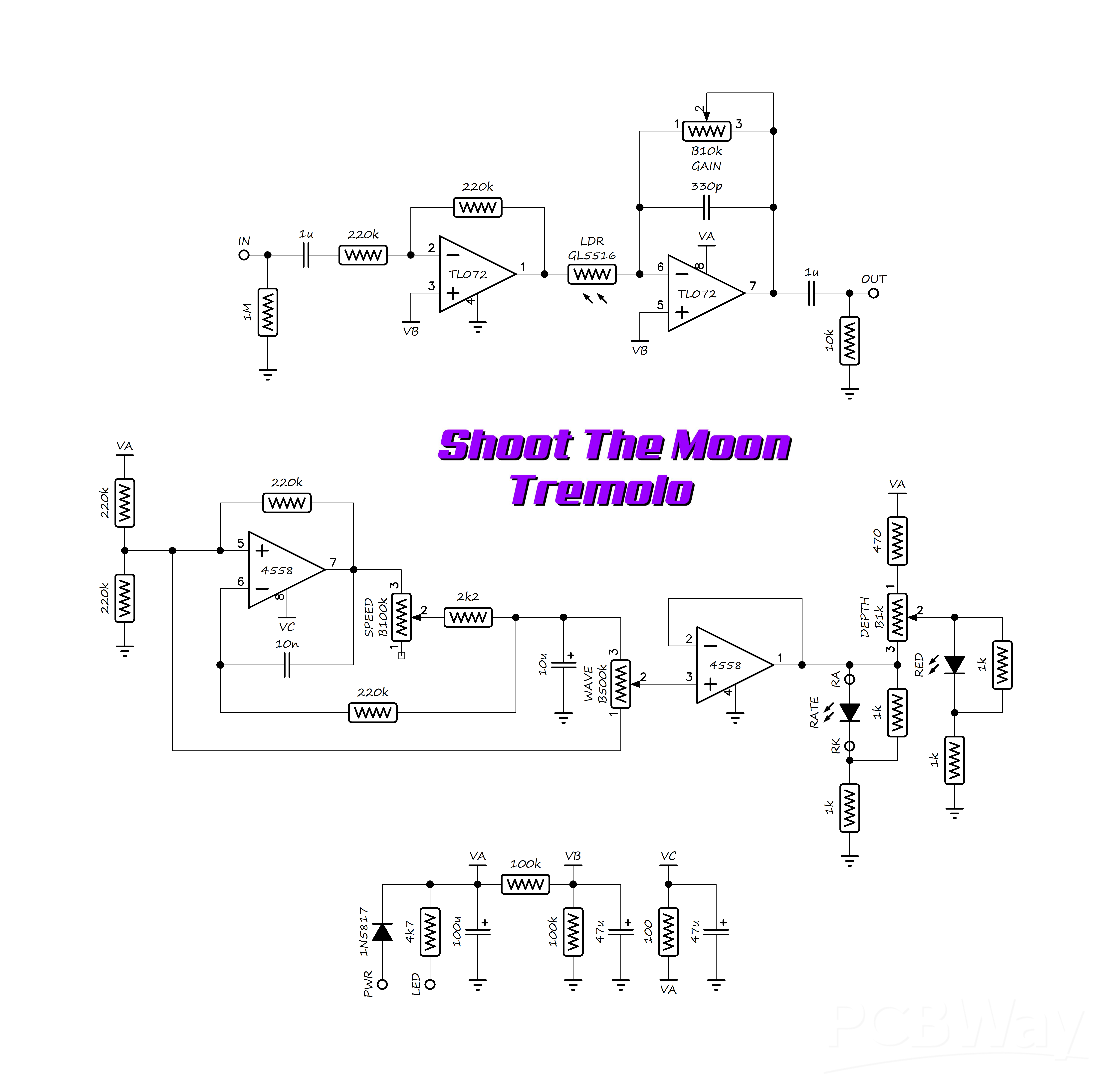

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 9
×6	220k	220k		read from the schematic by eye
×4	1k	1k		read from the schematic by eye
×2	100k	100k		read from the schematic by eye
×1	1M	1M		read from the schematic by eye
×1	10k	10k		read from the schematic by eye
×1	2k2	2.2k		read from the schematic by eye
×1	470	470		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
×1	100	100		read from the schematic by eye
Capacitors 6
×2	1u	1u		read from the schematic by eye
×2	47u	47u		electrolytic; read from the schematic by eye
×1	100u	100u		electrolytic; read from the schematic by eye
×1	10u	10u		electrolytic; read from the schematic by eye
×1	330p	330p		read from the schematic by eye
×1	10n	10n		read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
ICs 2
×1	4558	4558		both sections one chip; read from the schematic by eye
×1	TL072	TL072		both sections one chip; read from the schematic by eye
Opto 1
×1	GL5516	GL5516		LDR; read from the schematic by eye
Potentiometers 4
Gain	B10k	B10k	Potentiometer	read from the schematic by eye
Speed	B100k	B100k	Potentiometer	read from the schematic by eye
Wave	B500k	B500k	Potentiometer	read from the schematic by eye
Depth	B1k	B1k	Potentiometer	read from the schematic by eye
LEDs 2
×1	RED	RED		drawn in the depth/LFO network; read from the schematic by eye
Rate	LED	LED		LED symbol drawn between RA/RK pads; rate indicator, likely the one coupled to the LDR; read from the schematic by eye
