Enclosure not stated · 2 knobs
Omega
Based on the Run Off Groove Omega· 6 other boards clone it
- Category
- Boost
- Price
- see vendorin stock
- Tags
- Run Off Groove, Run Off Groove, omega, boost
From the vendor
Run Off Groove Omega treble booster

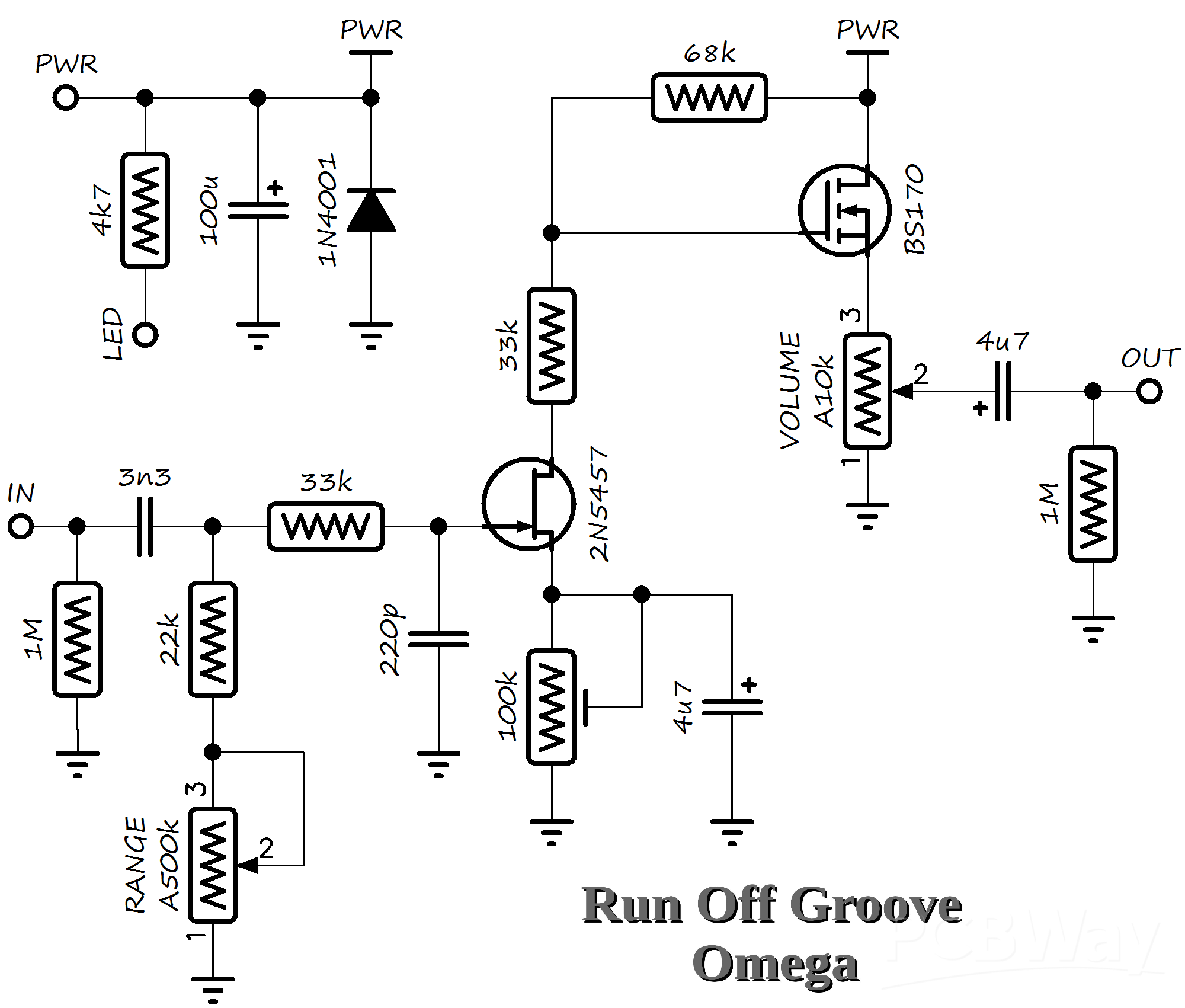

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 15 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×2 | 33k | 33k | read from the schematic by eye | |
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| ×1 | 68k | 68k | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| Capacitors 4 | ||||
| ×1 | 100u | 100u | read from the schematic by eye | |
| ×1 | 3n3 | 3.3n | read from the schematic by eye | |
| ×1 | 220p | 220p | read from the schematic by eye | |
| ×2 | 4u7 | 4.7u | electrolytic; read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| Transistors 2 | ||||
| ×1 | 2N5457 | 2N5457 | JFET; read from the schematic by eye | |
| ×1 | BS170 | BS170 | MOSFET; read from the schematic by eye | |
| Potentiometers 2 | ||||
| Range | A500k | A500k | Potentiometer | read from the schematic by eye |
| Volume | A10k | A10k | Potentiometer | read from the schematic by eye |
| Trimmers 1 | ||||
| ×1 | 100k | 100k | JFET source trimmer, drawn with a wiper tab and no knob name; read from the schematic by eye | |
