Enclosure not stated · 3 knobs
Chat Breaker
Based on the Revv Chat Breaker· 2 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Revv

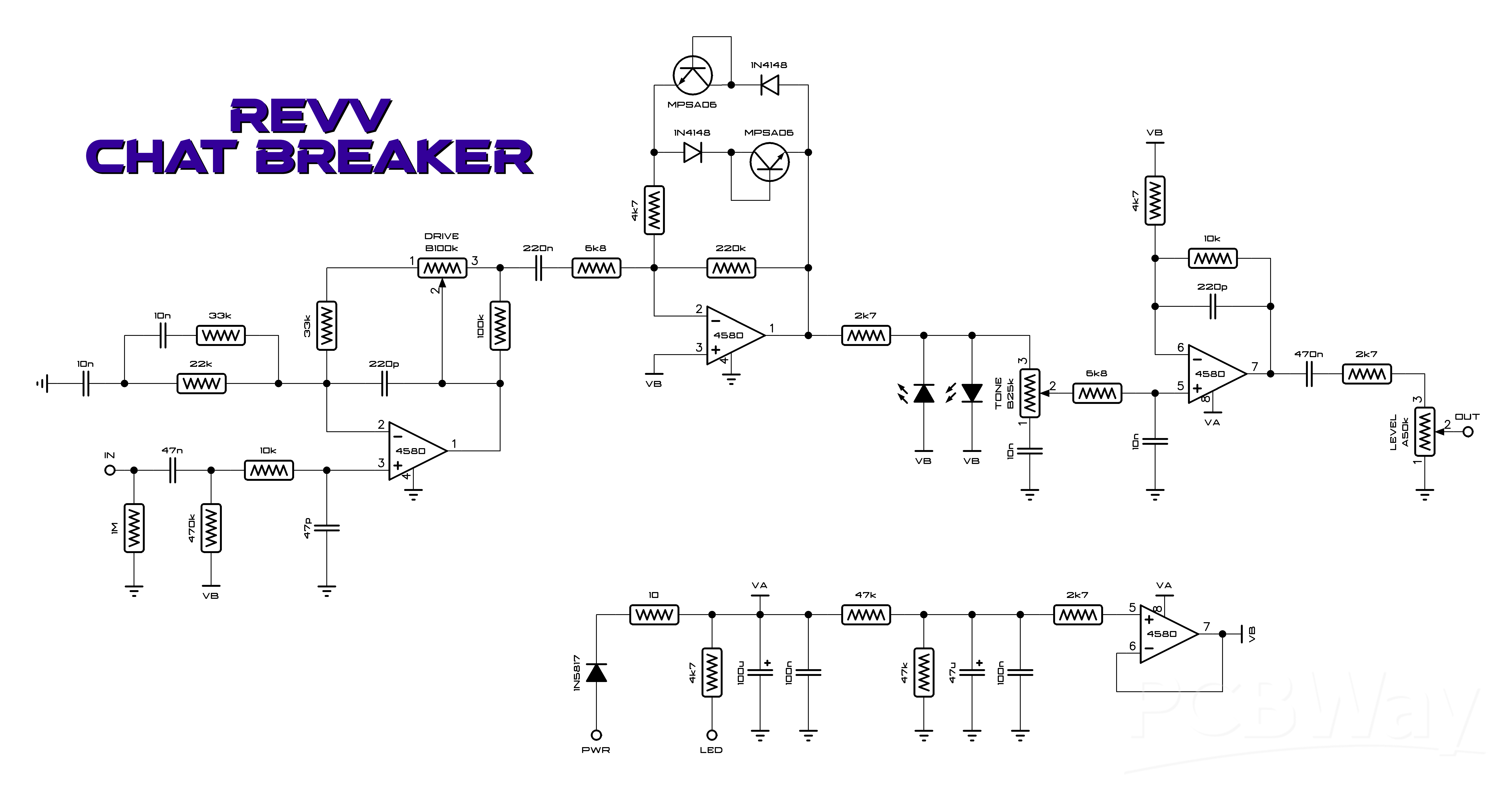

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 29 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 12 | ||||
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 470k | 470k | read from the schematic by eye | |
| ×2 | 10k | 10k | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| ×2 | 33k | 33k | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| ×2 | 6k8 | 6.8k | read from the schematic by eye | |
| ×3 | 4k7 | 4.7k | one is the LED resistor; read from the schematic by eye | |
| ×1 | 220k | 220k | read from the schematic by eye | |
| ×3 | 2k7 | 2.7k | read from the schematic by eye | |
| ×1 | 10 | 10 | read from the schematic by eye | |
| ×2 | 47k | 47k | read from the schematic by eye | |
| Capacitors 9 | ||||
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 47p | 47p | read from the schematic by eye | |
| ×4 | 10n | 10n | read from the schematic by eye | |
| ×2 | 220p | 220p | read from the schematic by eye | |
| ×1 | 220n | 220n | read from the schematic by eye | |
| ×1 | 470n | 470n | read from the schematic by eye | |
| ×1 | 100u | 100u | electrolytic; read from the schematic by eye | |
| ×2 | 100n | 100n | read from the schematic by eye | |
| ×1 | 47u | 47u | electrolytic; read from the schematic by eye | |
| Diodes 2 | ||||
| ×2 | 1N4148 | 1N4148 | in series with the MPSA06 junctions in the feedback clipper; read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | polarity protection; read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | MPSA06 | MPSA06 | used as diodes (base-collector tied) in the feedback clipper; read from the schematic by eye | |
| ICs 1 | ||||
| ×2 | 4580 | 4580 | four op-amp sections drawn (one is the VB buffer) = two dual chips; read from the schematic by eye | |
| Potentiometers 3 | ||||
| Drive | B100k | B100k | Potentiometer | read from the schematic by eye |
| Tone | B25k | B25k | Potentiometer | read from the schematic by eye |
| Level | A50k | A50k | Potentiometer | read from the schematic by eye |
| LEDs 1 | ||||
| ×2 | LED | LED | clipping LEDs to VB, antiparallel; read from the schematic by eye | |
