Enclosure not stated · 1 knob
Golden Fleece
Based on the Mythos Pedals Golden Fleece· 3 other boards clone it
From the vendor
Mythos Golden Fleece

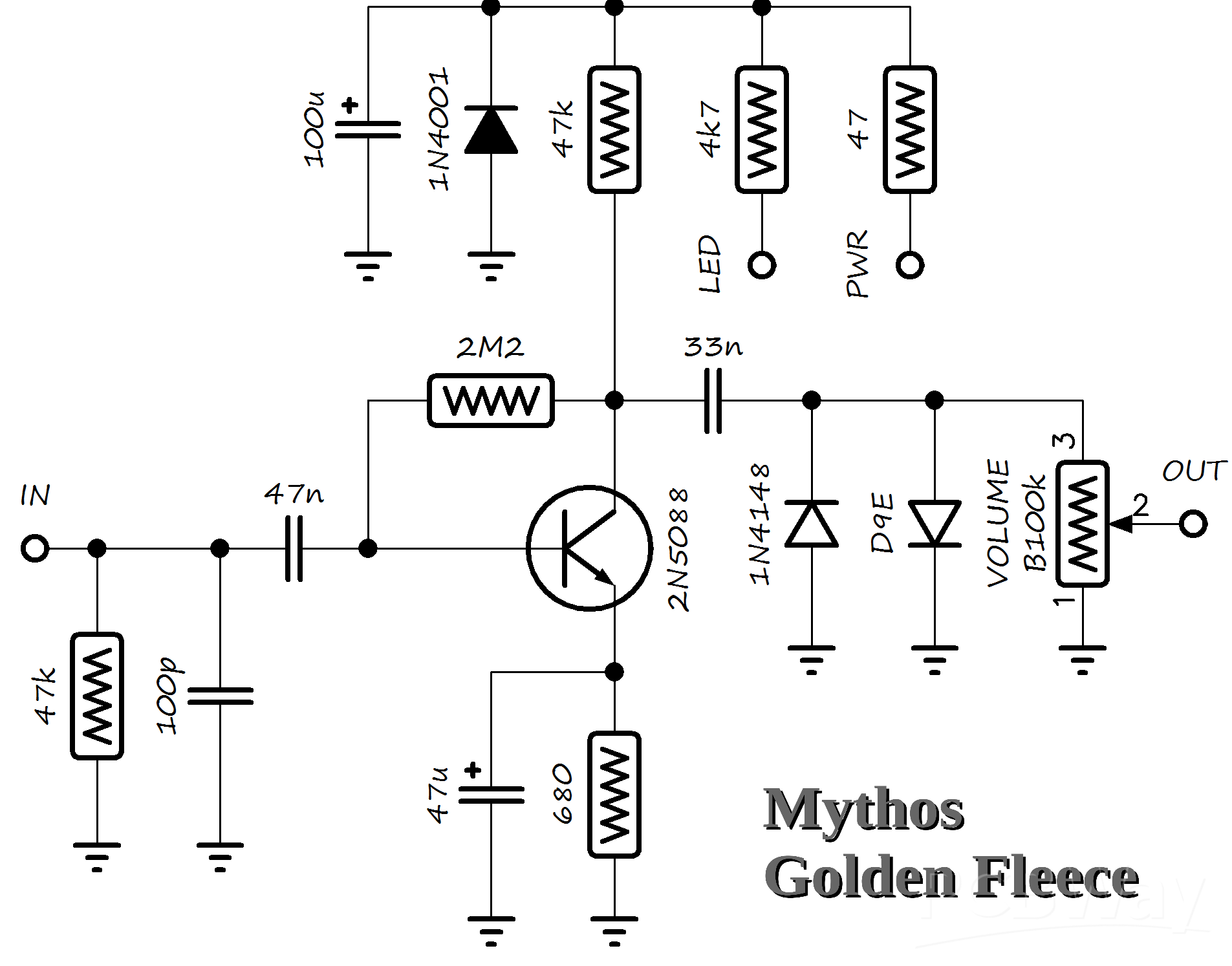

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 15 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×2 | 47k | 47k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| ×1 | 47 | 47 | read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 680 | 680 | read from the schematic by eye | |
| Capacitors 5 | ||||
| ×1 | 100u | 100u | electrolytic; read from the schematic by eye | |
| ×1 | 47u | 47u | electrolytic; read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 100p | 100p | read from the schematic by eye | |
| ×1 | 33n | 33n | read from the schematic by eye | |
| Diodes 3 | ||||
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| ×1 | 1N4148 | 1N4148 | clipping to ground; read from the schematic by eye | |
| ×1 | D9E | D9E | germanium clipping to ground; read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | 2N5088 | 2N5088 | read from the schematic by eye | |
| Potentiometers 1 | ||||
| Volume | B100k | B100k | Potentiometer | read from the schematic by eye |
