Enclosure not stated · 1 knob

Noise Gate

Based on the MXR Noise Gate· 7 other boards clone it

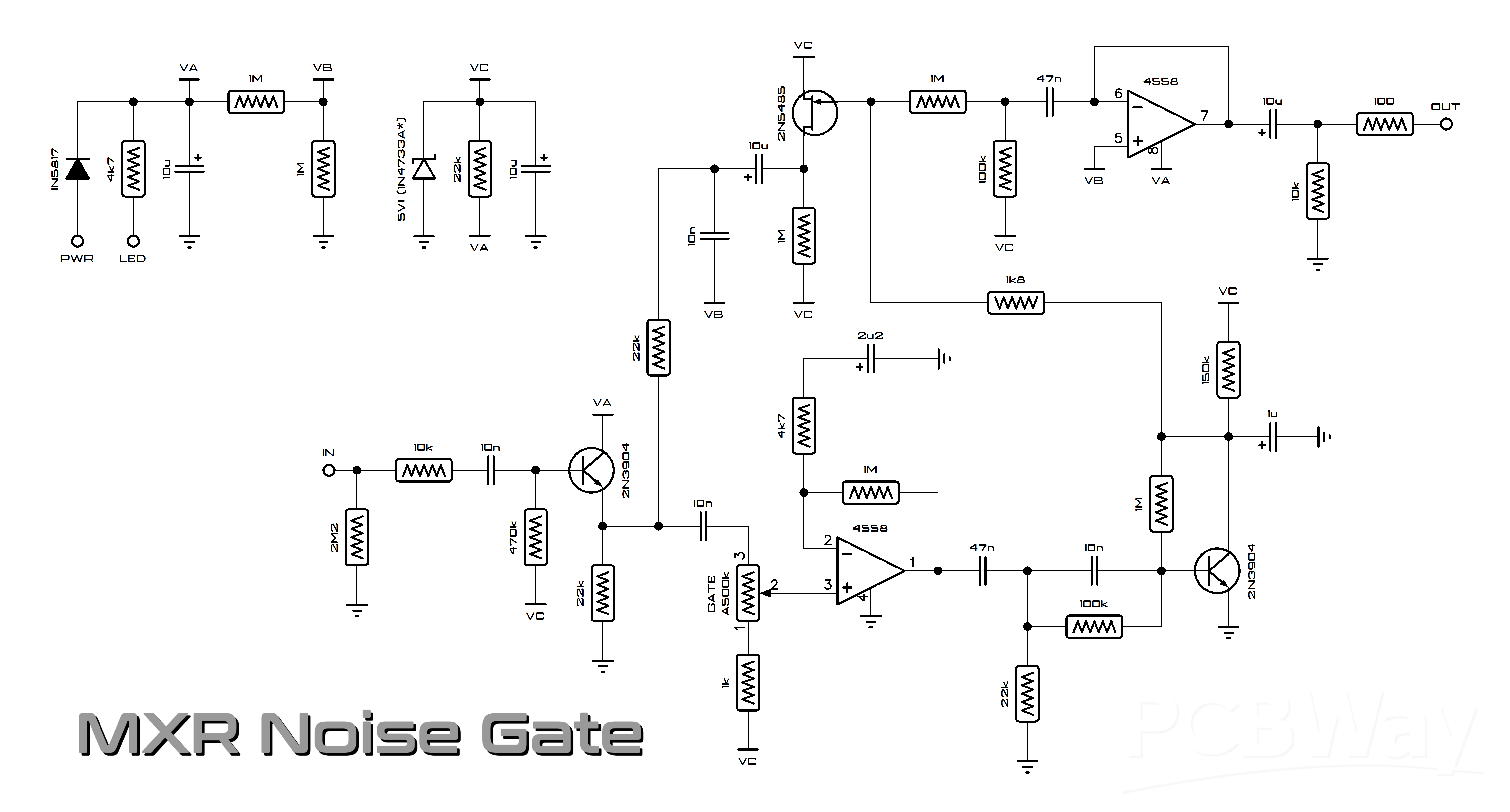

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 11
×6	1M	1M		read from the schematic by eye
×4	22k	22k		read from the schematic by eye
×2	4k7	4.7k		one is the LED resistor; read from the schematic by eye
×2	10k	10k		read from the schematic by eye
×2	100k	100k		read from the schematic by eye
×1	2M2	2.2M		read from the schematic by eye
×1	470k	470k		read from the schematic by eye
×1	100	100		read from the schematic by eye
×1	1k8	1.8k		read from the schematic by eye
×1	150k	150k		read from the schematic by eye
×1	1k	1k		read from the schematic by eye
Capacitors 5
×4	10u	10u		read from the schematic by eye
×4	10n	10n		read from the schematic by eye
×2	47n	47n		read from the schematic by eye
×1	2u2	2.2u		read from the schematic by eye
×1	1u	1u		read from the schematic by eye
Diodes 2
×1	1N5817	1N5817		read from the schematic by eye
×1	1N4733A	1N4733A / 5V1		5V1 zener, marked with * on drawing; read from the schematic by eye
Transistors 2
×2	2N3904	2N3904		read from the schematic by eye
×1	2N5485	2N5485		JFET gate switch; read from the schematic by eye
ICs 1
×1	4558	4558		read from the schematic by eye
Potentiometers 1
Gate	A500k	A500k	Potentiometer	read from the schematic by eye
