FuzzRite

Based on the Mosrite Fuzzrite· 15 other boards clone it

From the vendor

MosRite - FuzzRite fuzz

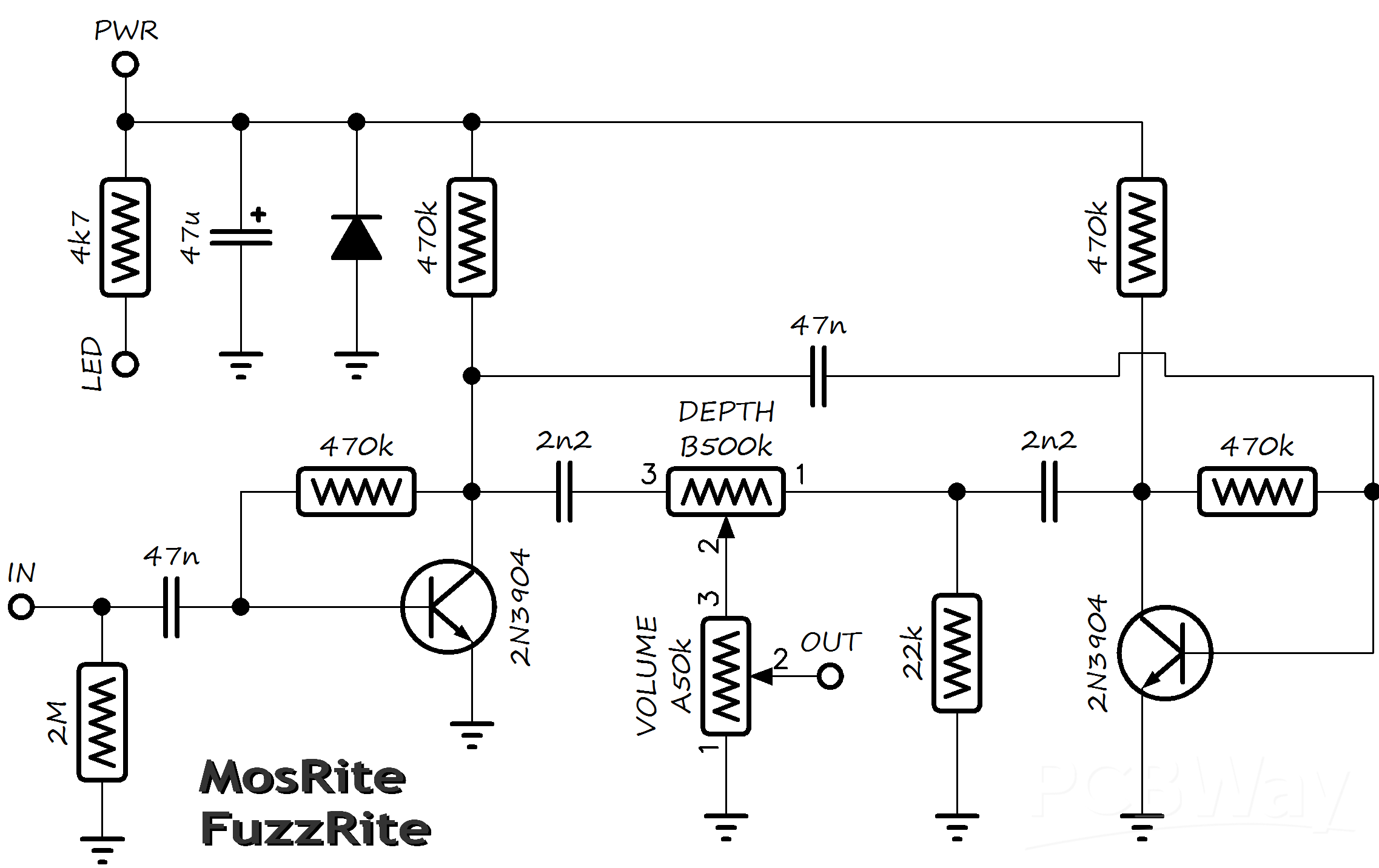

The schematic image is on the project page. Open it at PCBWay.

Check before you build · 1 value the reader of this schematic was not sure of

Ref	Value	Normalized	Type	Notes
Resistors 4
×4	470k	470k		read from the schematic by eye
×1	4k7	4.7k		LED resistor; read from the schematic by eye
×1	2M	2M		read from the schematic by eye
×1	22k	22k		read from the schematic by eye
Capacitors 3
×1	47u	47u		read from the schematic by eye
×2	47n	47n		read from the schematic by eye
×2	2n2	2.2n		read from the schematic by eye
Diodes 1
×1	?	?		shunt protection diode across the supply, no value drawn; read from the schematic by eye
Transistors 1
×2	2N3904	2N3904		read from the schematic by eye
Potentiometers 2
Depth	B500k	B500k	Potentiometer	read from the schematic by eye
Volume	A50k	A50k	Potentiometer	read from the schematic by eye
