Enclosure not stated · 4 knobs

Rook

Based on the Mojo Hand Fx Rook· 2 other boards clone it

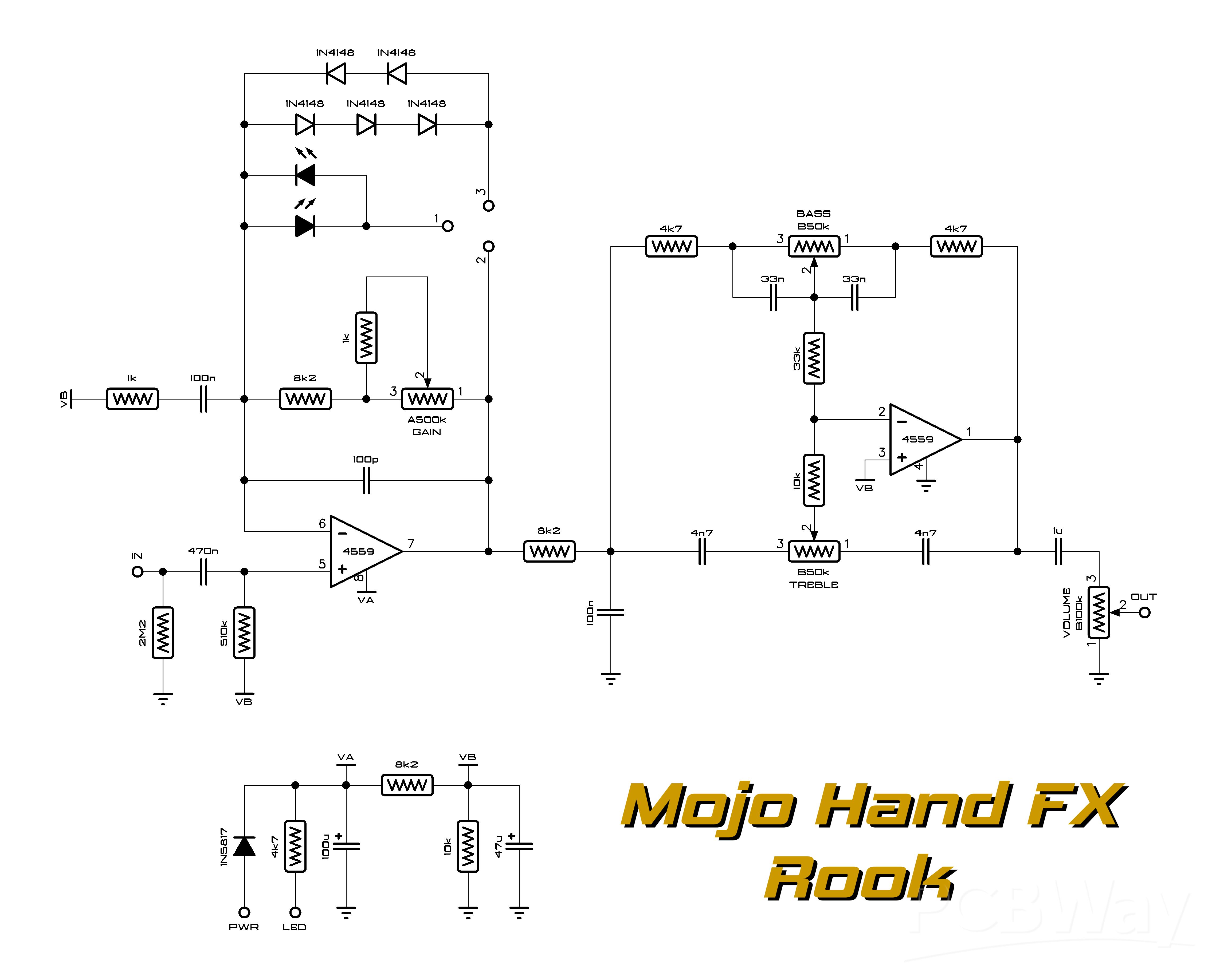

Schematic

The schematic image is on the project page. Open it at PCBWay.

Check before you build · 1 value the reader of this schematic was not sure of

Ref	Value	Normalized	Type	Notes
Resistors 7
×2	1k	1k		read from the schematic by eye
×3	4k7	4.7k		read from the schematic by eye
×3	8k2	8.2k		read from the schematic by eye
×2	10k	10k		read from the schematic by eye
×1	33k	33k		read from the schematic by eye
×1	510k	510k		read from the schematic by eye
×1	2M2	2.2M		read from the schematic by eye
Capacitors 8
×1	100p	100p		read from the schematic by eye
×2	4n7	4.7n		read from the schematic by eye
×2	33n	33n		read from the schematic by eye
×2	100n	100n		read from the schematic by eye
×1	470n	470n		read from the schematic by eye
×1	1u	1u		read from the schematic by eye
×1	47u	47u		electrolytic; read from the schematic by eye
×1	100u	100u		electrolytic; read from the schematic by eye
Diodes 2
×5	1N4148	1N4148		clipping: 2 in series one way, 3 in series the other (switched); read from the schematic by eye
×1	1N5817	1N5817		reverse-polarity protection; read from the schematic by eye
ICs 1
×1	4559	4559		dual op-amp, both sections used; read from the schematic by eye
Potentiometers 4
Gain	A500k	A500k	Potentiometer	read from the schematic by eye
Bass	B50k	B50k	Potentiometer	read from the schematic by eye
Treble	B50k	B50k	Potentiometer	read from the schematic by eye
Volume	B100k	B100k	Potentiometer	read from the schematic by eye
Switches 1
×1	SPDT	SPDT		off-board 3-lug clipping selector (pads 1/2/3): LEDs or 3x1N4148; throw type not drawn, could be on-off-on; read from the schematic by eye
LEDs 1
×2	LED	LED		anti-parallel clipping LEDs, no colour drawn; read from the schematic by eye
