Enclosure not stated · 4 knobs
Flux Drive
Based on the Mesa Boogie Flux Drive· 4 other boards clone it
- Category
- Overdrive
- Price
- see vendorin stock
- Tags
- Mesa Boogie, Mesa Boogie, Flux Drive

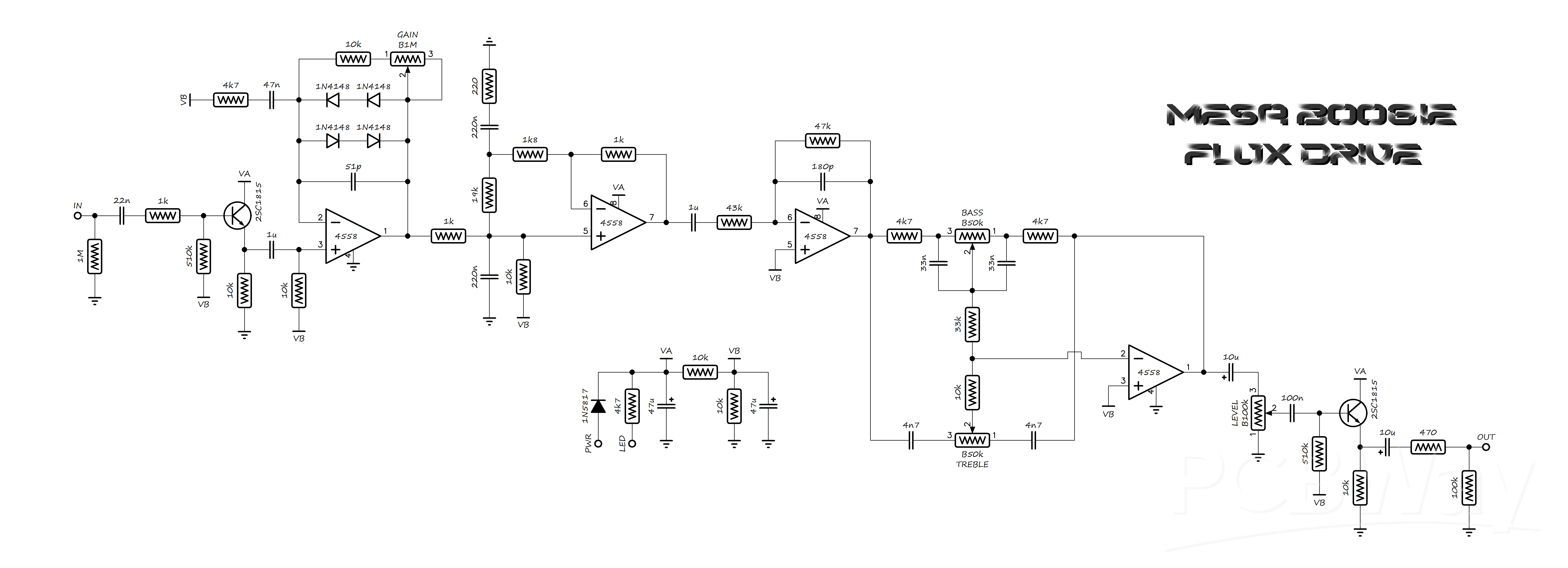

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 32 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 13 | ||||
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×3 | 1k | 1k | read from the schematic by eye | |
| ×2 | 510k | 510k | read from the schematic by eye | |
| ×8 | 10k | 10k | read from the schematic by eye | |
| ×4 | 4k7 | 4.7k | one is the LED resistor; read from the schematic by eye | |
| ×1 | 220 | 220 | read from the schematic by eye | |
| ×1 | 19k | 19k | read from the schematic by eye | |
| ×1 | 1k8 | 1.8k | read from the schematic by eye | |
| ×1 | 43k | 43k | read from the schematic by eye | |
| ×1 | 47k | 47k | read from the schematic by eye | |
| ×1 | 33k | 33k | read from the schematic by eye | |
| ×1 | 470 | 470 | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| Capacitors 11 | ||||
| ×1 | 22n | 22n | read from the schematic by eye | |
| ×2 | 1u | 1u | read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 51p | 51p | read from the schematic by eye | |
| ×2 | 220n | 220n | read from the schematic by eye | |
| ×1 | 180p | 180p | read from the schematic by eye | |
| ×2 | 33n | 33n | read from the schematic by eye | |
| ×2 | 4n7 | 4.7n | read from the schematic by eye | |
| ×2 | 10u | 10u | read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| ×2 | 47u | 47u | read from the schematic by eye | |
| Diodes 2 | ||||
| ×4 | 1N4148 | 1N4148 | read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | 2SC1815 | 2SC1815 | read from the schematic by eye | |
| ICs 1 | ||||
| ×2 | 4558 | 4558 | four sections drawn = two dual chips; read from the schematic by eye | |
| Potentiometers 4 | ||||
| Gain | B1M | B1M | Potentiometer | read from the schematic by eye |
| Bass | B50k | B50k | Potentiometer | read from the schematic by eye |
| Treble | B50k | B50k | Potentiometer | read from the schematic by eye |
| Level | B100k | B100k | Potentiometer | read from the schematic by eye |
