Enclosure not stated · 4 knobs
Wolf Computer
Based on the Mellowtone Wolf Computer· 4 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Mellowtone

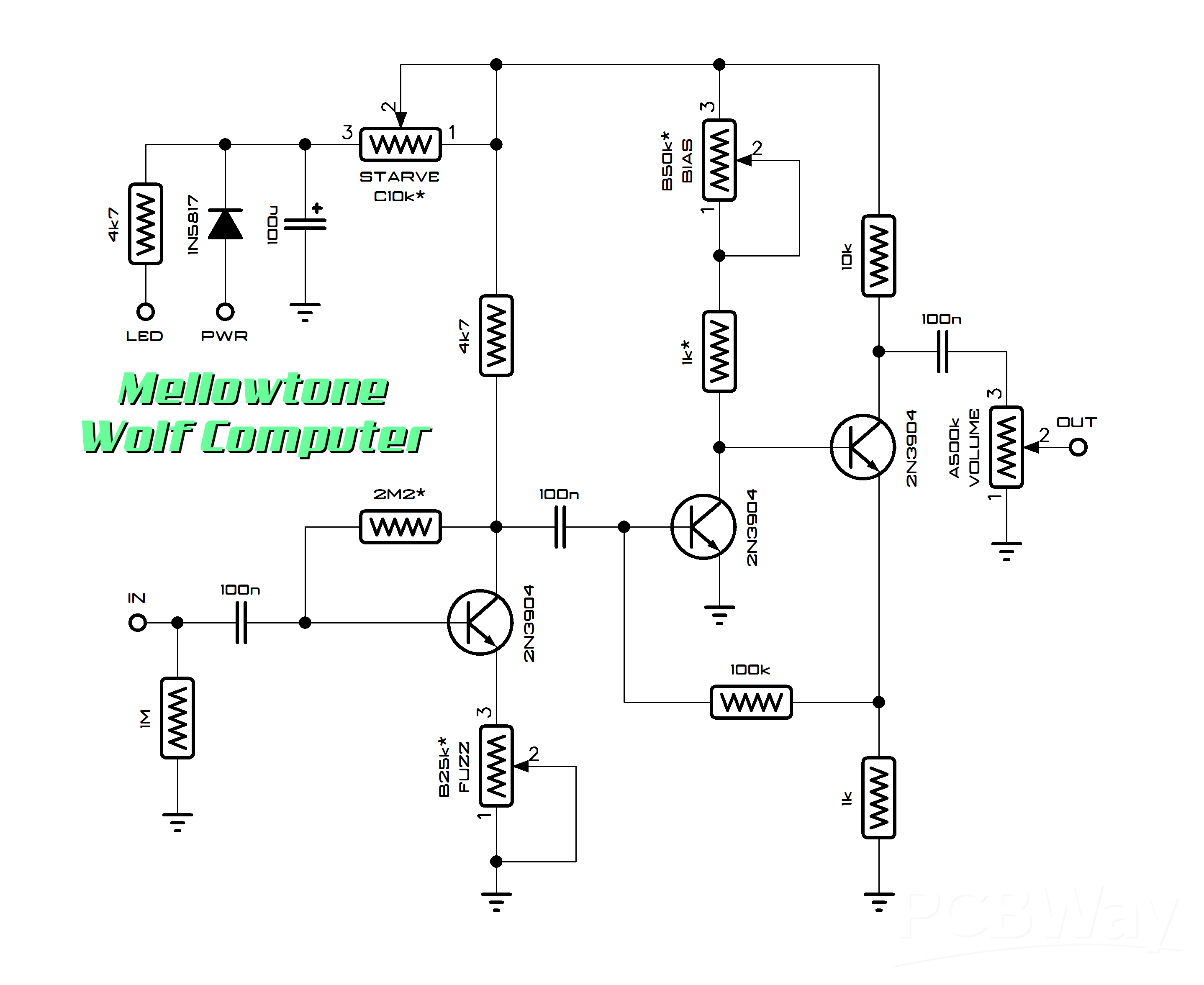

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 14 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 6 | ||||
| ×2 | 4k7 | 4.7k | one is the LED resistor; read from the schematic by eye | |
| ×2 | 1k | 1k | one marked 1k* on the drawing; read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | marked 2M2* on the drawing; read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| Capacitors 2 | ||||
| ×3 | 100n | 100n | read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×3 | 2N3904 | 2N3904 | read from the schematic by eye | |
| Potentiometers 4 | ||||
| Starve | C10k | C10k | Potentiometer | marked C10k* on the drawing; read from the schematic by eye |
| Bias | B50k | B50k | Potentiometer | marked B50k*, wired as a variable resistor; read from the schematic by eye |
| Fuzz | B25k | B25k | Potentiometer | marked B25k*, wired as a variable resistor in the first emitter; read from the schematic by eye |
| Volume | A500k | A500k | Potentiometer | read from the schematic by eye |
Other boards based on the Mellowtone Wolf Computer
- Mellowtone Wolf Computer Dirtbox Layouts
- Wolf Computer - Glitch Fuzz Fuzz Dog · 1590B · £31.20
- Cyberwolf Moonn Electronics · €4.50
- Dog Byte Fuzz PedalPCB · 125B · $8.00
