Enclosure not stated · 2 knobs
FZ1
Based on the Maestro FZ1· 1 other board clones it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Maestro, Maestro, FZ1

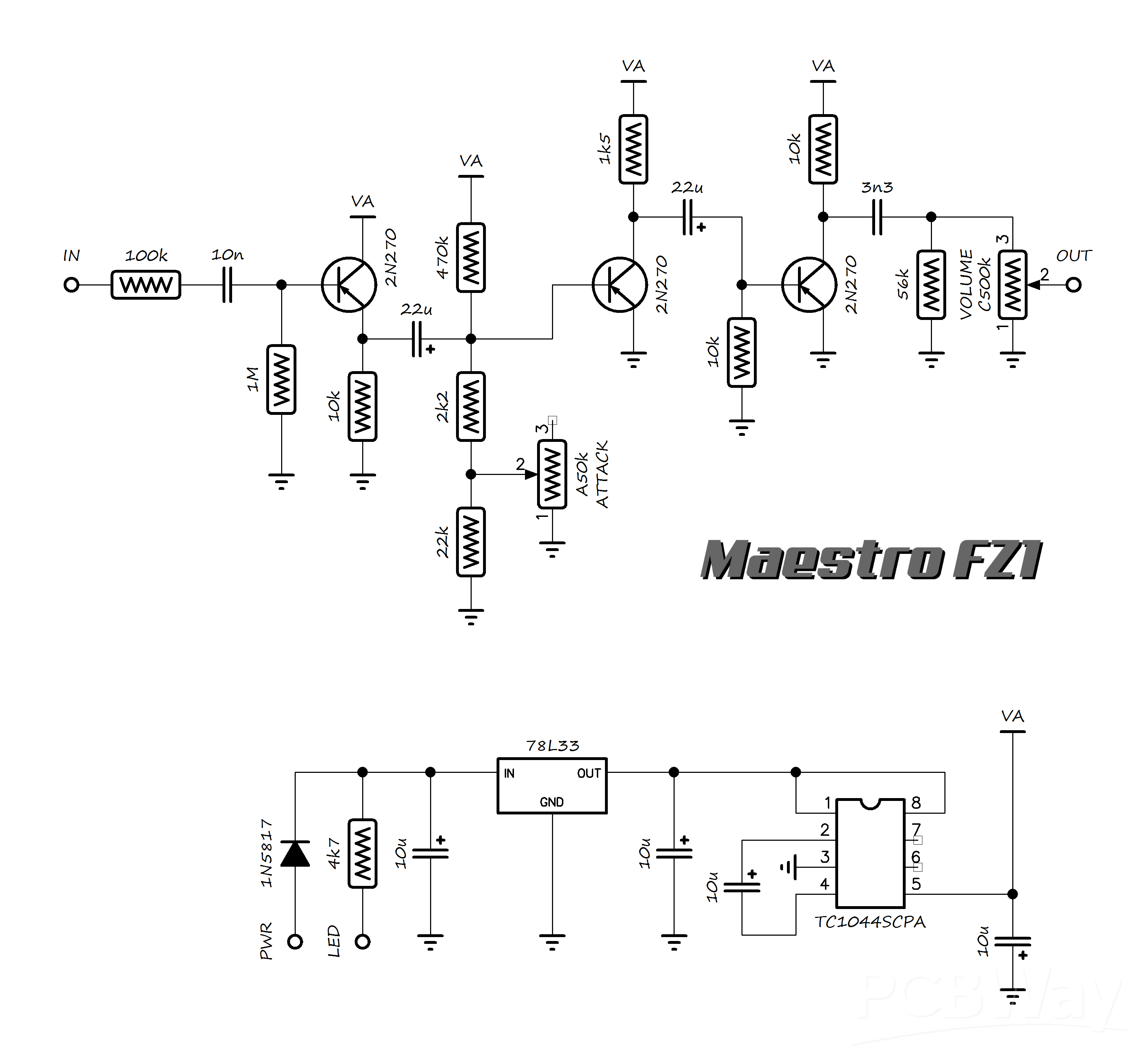

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 19 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 9 | ||||
| ×1 | 100k | 100k | read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×3 | 10k | 10k | read from the schematic by eye | |
| ×1 | 470k | 470k | read from the schematic by eye | |
| ×1 | 2k2 | 2.2k | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| ×1 | 1k5 | 1.5k | read from the schematic by eye | |
| ×1 | 56k | 56k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 4 | ||||
| ×1 | 10n | 10n | read from the schematic by eye | |
| ×2 | 22u | 22u | read from the schematic by eye | |
| ×1 | 3n3 | 3.3n | read from the schematic by eye | |
| ×4 | 10u | 10u | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×3 | 2N270 | 2N270 | read from the schematic by eye | |
| ICs 2 | ||||
| ×1 | 78L33 | 78L33 | regulator; read from the schematic by eye | |
| ×1 | TC1044SCPA | TC1044SCPA | charge pump; read from the schematic by eye | |
| Potentiometers 2 | ||||
| Attack | A50k | A50k | Potentiometer | read from the schematic by eye |
| Volume | C500k | C500k | Potentiometer | read from the schematic by eye |
