Enclosure not stated · 1 knob
JTM
Based on the Lovepedal JTM· 5 other boards clone it

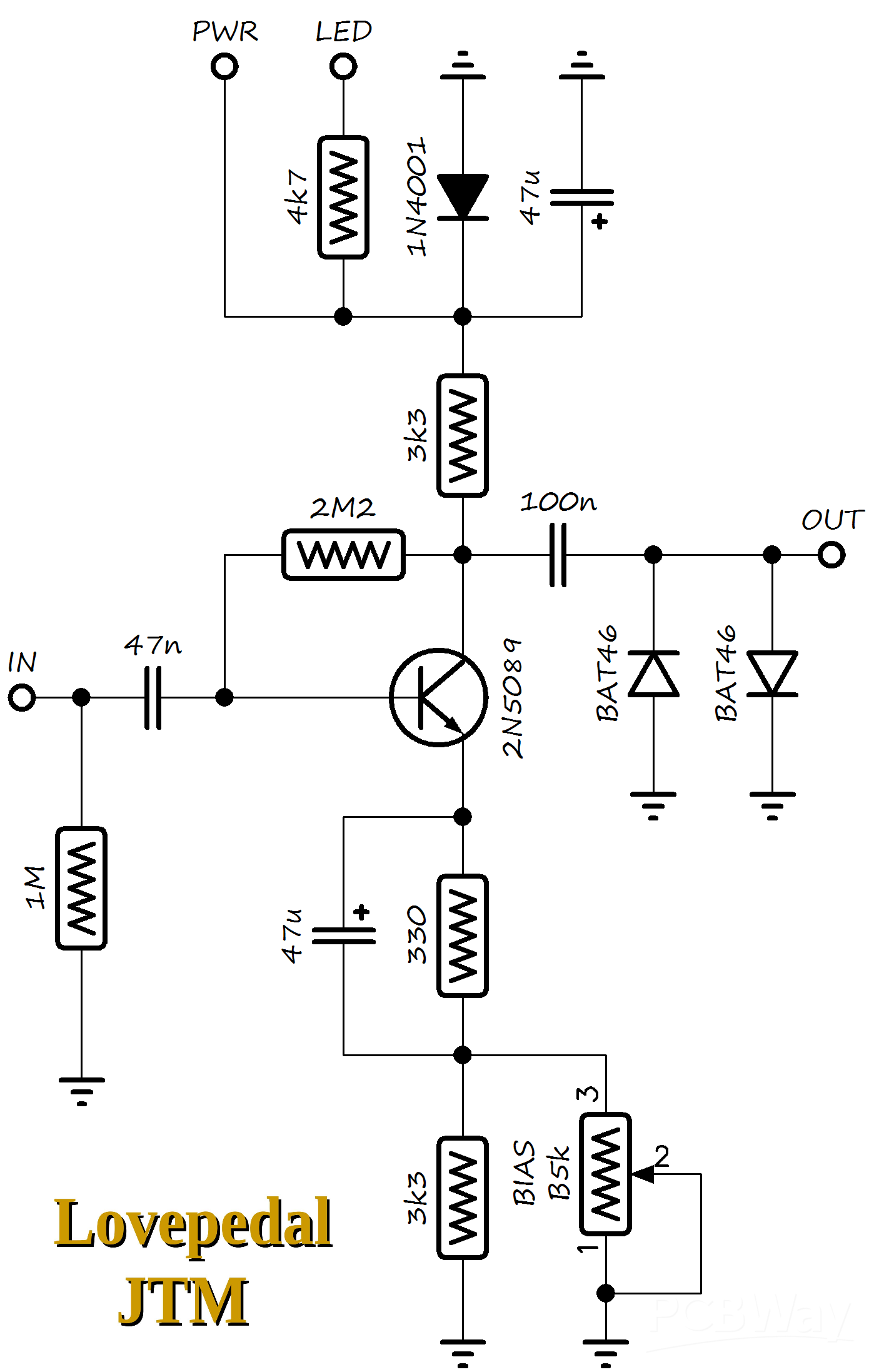

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 12 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×2 | 3k3 | 3.3k | read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| ×1 | 330 | 330 | read from the schematic by eye | |
| Capacitors 3 | ||||
| ×2 | 47u | 47u | read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| Diodes 2 | ||||
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| ×2 | BAT46 | BAT46 | output clipping to ground; read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | 2N5089 | 2N5089 | read from the schematic by eye | |
| Trimmers 1 | ||||
| Bias | B5k | 5k | labelled BIAS, wired as variable resistor in the emitter leg; read from the schematic by eye | |
