Enclosure not stated · 5 knobs

Overdrive

Based on the KGR Harmony Arare / Lollar Overdrive· 2 other boards clone it

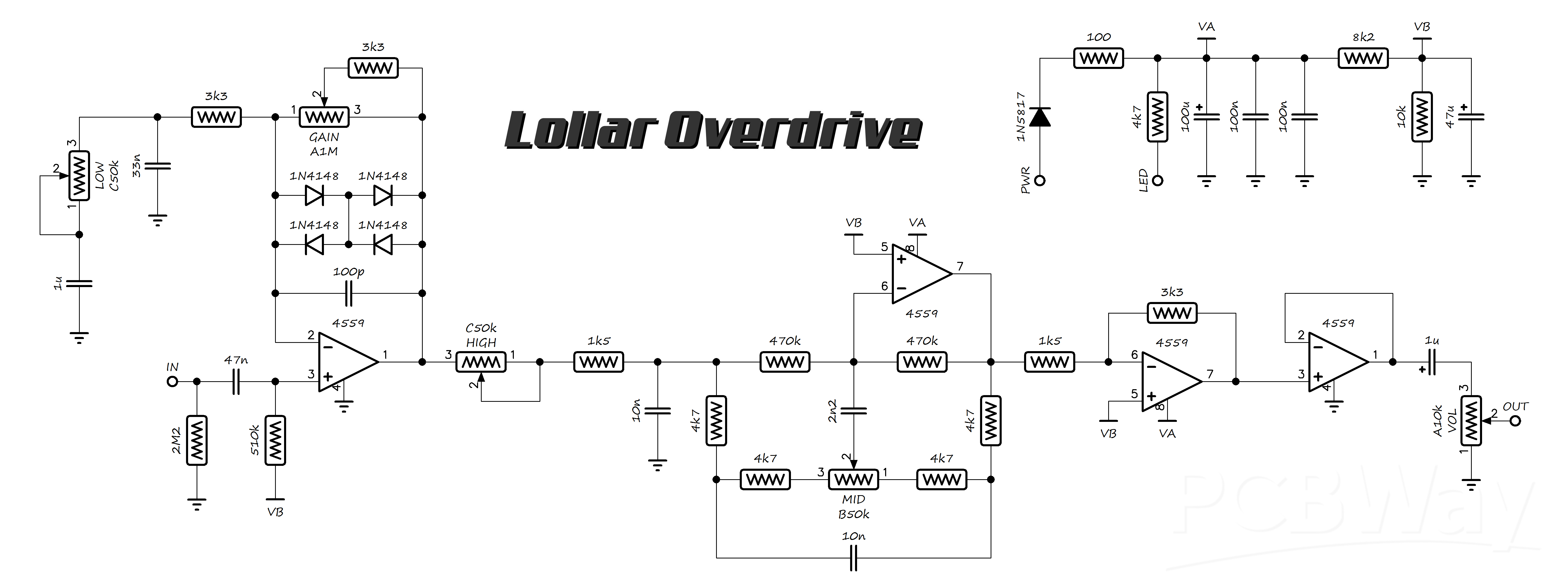

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 9
×5	4k7	4.7k		read from the schematic by eye
×3	3k3	3.3k		read from the schematic by eye
×2	470k	470k		read from the schematic by eye
×2	1k5	1.5k		read from the schematic by eye
×1	2M2	2.2M		read from the schematic by eye
×1	510k	510k		read from the schematic by eye
×1	10k	10k		read from the schematic by eye
×1	8k2	8.2k		read from the schematic by eye
×1	100	100		read from the schematic by eye
Capacitors 9
×1	100u	100u		read from the schematic by eye
×1	47u	47u		read from the schematic by eye
×2	1u	1u		one in the Low leg, one output coupling (electrolytic); read from the schematic by eye
×2	100n	100n		read from the schematic by eye
×1	47n	47n		read from the schematic by eye
×1	33n	33n		read from the schematic by eye
×2	10n	10n		read from the schematic by eye
×1	2n2	2.2n		read from the schematic by eye
×1	100p	100p		read from the schematic by eye
Diodes 2
×4	1N4148	1N4148		two series pairs in the gain-stage feedback; read from the schematic by eye
×1	1N5817	1N5817		read from the schematic by eye
ICs 1
×2	4559	4559		four op-amp sections drawn, two dual chips; read from the schematic by eye
Potentiometers 5
Low	C50k	C50k	Potentiometer	read from the schematic by eye
Gain	A1M	A1M	Potentiometer	read from the schematic by eye
High	C50k	C50k	Potentiometer	read from the schematic by eye
Mid	B50k	B50k	Potentiometer	read from the schematic by eye
Vol	A10k	A10k	Potentiometer	read from the schematic by eye
