Enclosure not stated · 5 knobs
Distortus Maximus
Based on the Krank Distortus Maximus· 6 other boards clone it
- Category
- Distortion
- Price
- see vendorin stock
- Tags
- Krank, Krank, distortion
From the vendor
The Distortus Maximus packs all the bone-crunching tone of Krank amps into a compact pedal. Easy to operate with 3-band EQ, gain, and master controls. Achieve the high-gain harmonic flavors of the Revolution 1/Krankenstein amps that other distortion effects just can't deliver. It's over-the-top insanity with the warmth and clarity you expect from Krank.

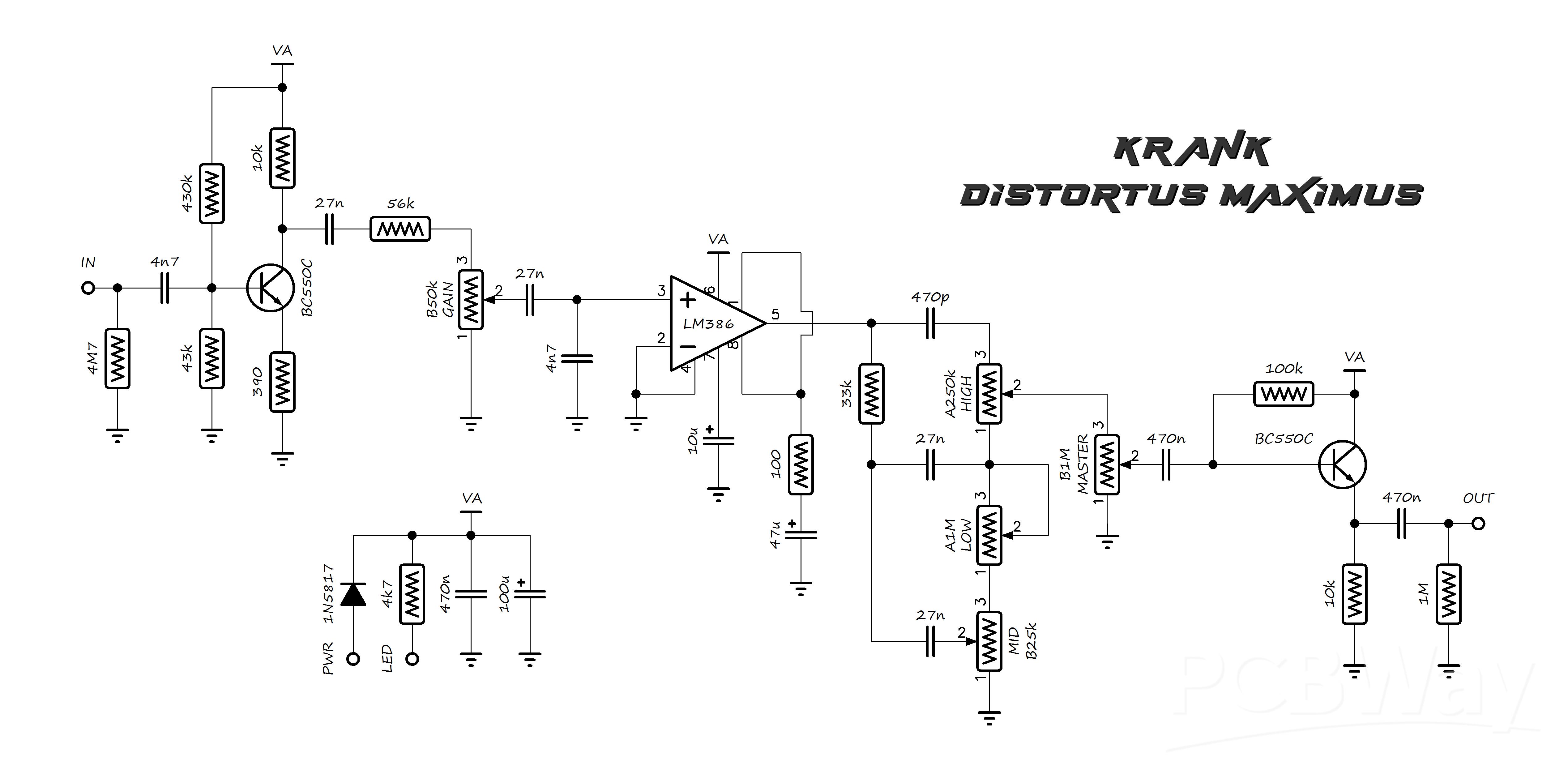

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 26 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 11 | ||||
| ×2 | 10k | 10k | read from the schematic by eye | |
| ×1 | 4M7 | 4.7M | read from the schematic by eye | |
| ×1 | 430k | 430k | read from the schematic by eye | |
| ×1 | 43k | 43k | read from the schematic by eye | |
| ×1 | 390 | 390 | read from the schematic by eye | |
| ×1 | 56k | 56k | read from the schematic by eye | |
| ×1 | 100 | 100 | read from the schematic by eye | |
| ×1 | 33k | 33k | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 7 | ||||
| ×4 | 27n | 27n | read from the schematic by eye | |
| ×3 | 470n | 470n | read from the schematic by eye | |
| ×2 | 4n7 | 4.7n | read from the schematic by eye | |
| ×1 | 470p | 470p | read from the schematic by eye | |
| ×1 | 10u | 10u | electrolytic; read from the schematic by eye | |
| ×1 | 47u | 47u | electrolytic; read from the schematic by eye | |
| ×1 | 100u | 100u | electrolytic; read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | BC550C | BC550C | read from the schematic by eye | |
| ICs 1 | ||||
| ×1 | LM386 | LM386 | read from the schematic by eye | |
| Potentiometers 5 | ||||
| Gain | B50k | B50k | Potentiometer | read from the schematic by eye |
| High | A250k | A250k | Potentiometer | read from the schematic by eye |
| Mid | B25k | B25k | Potentiometer | read from the schematic by eye |
| Low | A1M | A1M | Potentiometer | read from the schematic by eye |
| Master | B1M | B1M | Potentiometer | read from the schematic by eye |
