Enclosure not stated · 4 knobs

Azusa Driver

Based on the K-On Azusa Driver· 2 other boards clone it

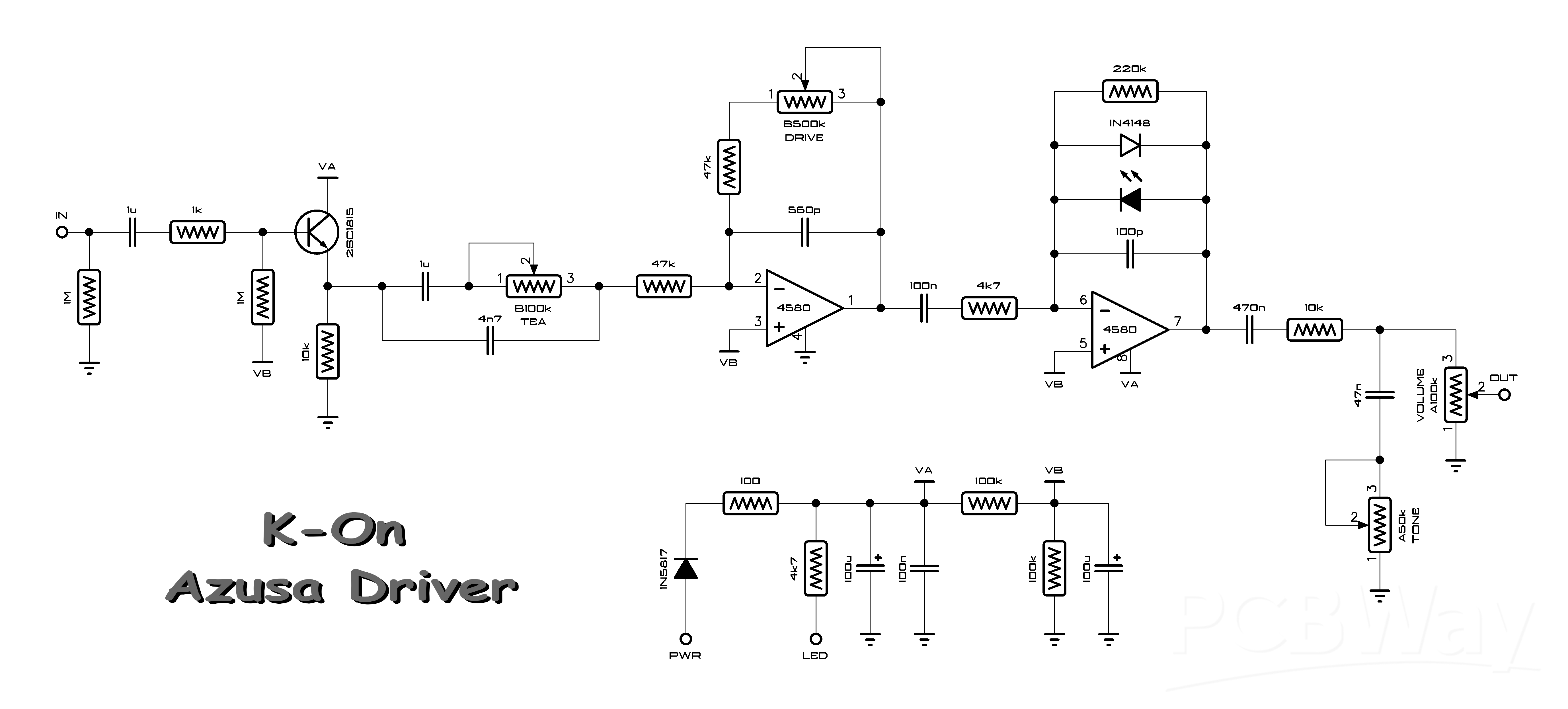

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 8
×2	1M	1M		read from the schematic by eye
×2	10k	10k		read from the schematic by eye
×2	47k	47k		read from the schematic by eye
×2	4k7	4.7k		one is the LED resistor; read from the schematic by eye
×2	100k	100k		read from the schematic by eye
×1	1k	1k		read from the schematic by eye
×1	220k	220k		read from the schematic by eye
×1	100	100		read from the schematic by eye
Capacitors 8
×2	1u	1u		read from the schematic by eye
×2	100n	100n		read from the schematic by eye
×3	100u	100u		electrolytic; read from the schematic by eye
×1	4n7	4.7n		read from the schematic by eye
×1	560p	560p		read from the schematic by eye
×1	100p	100p		read from the schematic by eye
×1	470n	470n		read from the schematic by eye
×1	47n	47n		read from the schematic by eye
Diodes 2
×1	1N4148	1N4148		clipping; read from the schematic by eye
×1	1N5817	1N5817		polarity protection; read from the schematic by eye
Transistors 1
×1	2SC1815	2SC1815		read from the schematic by eye
ICs 1
×1	4580	4580		dual op-amp, both sections used; read from the schematic by eye
Potentiometers 4
Tea	B100k	B100k	Potentiometer	read from the schematic by eye
Drive	B500k	B500k	Potentiometer	read from the schematic by eye
Volume	A100k	A100k	Potentiometer	read from the schematic by eye
Tone	A50k	A50k	Potentiometer	read from the schematic by eye
LEDs 1
×1	LED	LED		clipping LED in feedback, no colour drawn; read from the schematic by eye
