Enclosure not stated · 1 knob
Prestige
Based on the JHS Prestige· 4 other boards clone it
From the vendor
JHS Prestige

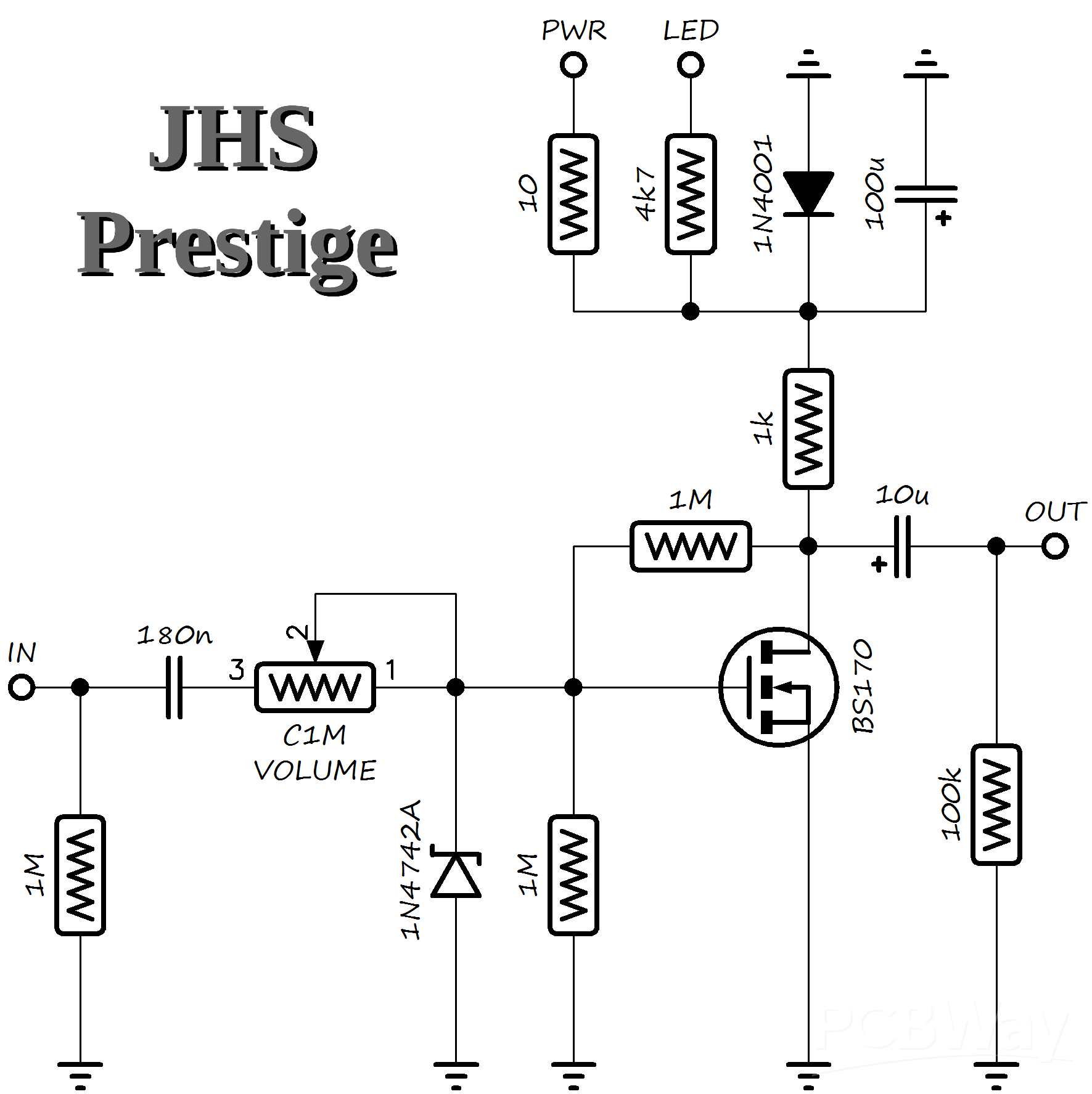

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 12 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×3 | 1M | 1M | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| ×1 | 1k | 1k | read from the schematic by eye | |
| ×1 | 10 | 10 | read from the schematic by eye | |
| Capacitors 3 | ||||
| ×1 | 100u | 100u | read from the schematic by eye | |
| ×1 | 10u | 10u | read from the schematic by eye | |
| ×1 | 180n | 180n | read from the schematic by eye | |
| Diodes 2 | ||||
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| ×1 | 1N4742A | 1N4742A / 12V | zener, clamps the gate; read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | BS170 | BS170 | read from the schematic by eye | |
| Potentiometers 1 | ||||
| Volume | C1M | C1M | Potentiometer | input level before the gate; read from the schematic by eye |
