Enclosure not stated · 3 knobs
Morning Glory
Based on the JHS Morning Glory· 6 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- JHS

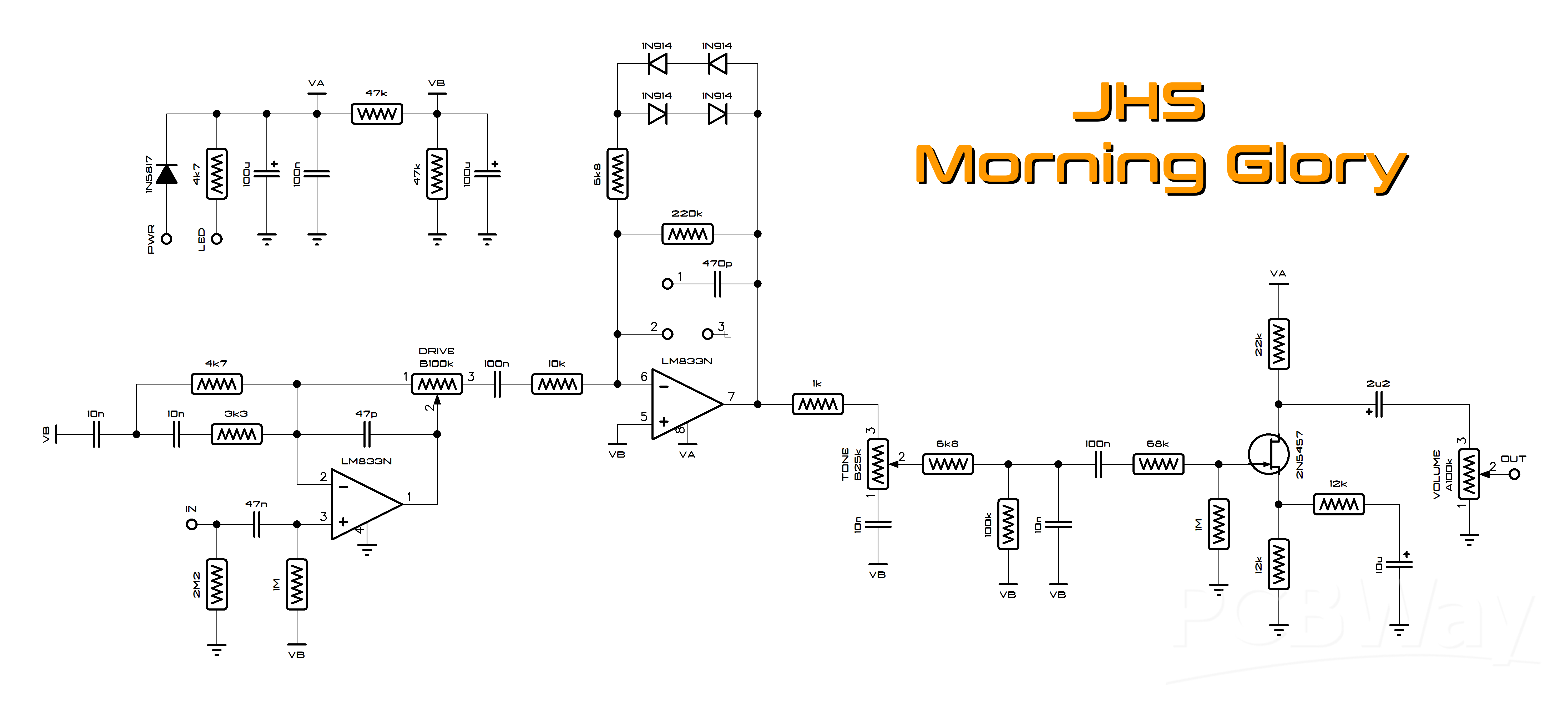

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 29 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
Check before you build · 1 value the reader of this schematic was not sure of
- SPDT toggle drawn only as three pads, no switch symbol or label
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 13 | ||||
| ×2 | 47k | 47k | read from the schematic by eye | |
| ×2 | 4k7 | 4.7k | read from the schematic by eye | |
| ×2 | 6k8 | 6.8k | read from the schematic by eye | |
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×2 | 12k | 12k | read from the schematic by eye | |
| ×1 | 3k3 | 3.3k | read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| ×1 | 220k | 220k | read from the schematic by eye | |
| ×1 | 1k | 1k | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| ×1 | 68k | 68k | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| Capacitors 8 | ||||
| ×4 | 10n | 10n | read from the schematic by eye | |
| ×3 | 100n | 100n | read from the schematic by eye | |
| ×2 | 100u | 100u | electrolytic; read from the schematic by eye | |
| ×1 | 47p | 47p | read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 470p | 470p | switched into the clipping loop by the toggle; read from the schematic by eye | |
| ×1 | 2u2 | 2.2u | electrolytic; read from the schematic by eye | |
| ×1 | 10u | 10u | electrolytic; read from the schematic by eye | |
| Diodes 2 | ||||
| ×4 | 1N914 | 1N914 | read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | 2N5457 | 2N5457 | read from the schematic by eye | |
| ICs 1 | ||||
| ×1 | LM833N | LM833N | two sections of one dual chip; read from the schematic by eye | |
| Potentiometers 3 | ||||
| Drive | B100k | B100k | Potentiometer | read from the schematic by eye |
| Tone | B25k | B25k | Potentiometer | read from the schematic by eye |
| Volume | A100k | A100k | Potentiometer | read from the schematic by eye |
| Switches 1 | ||||
| ×1 | SPDT | SPDT | unnamed toggle drawn as pads 1-2-3 (pad 3 unconnected): switches the 470p across the feedback loop; read from the schematic by eye | |
