Enclosure not stated · 1 knob
Mini bomb
Based on the JHS MiniBomb· 2 other boards clone it

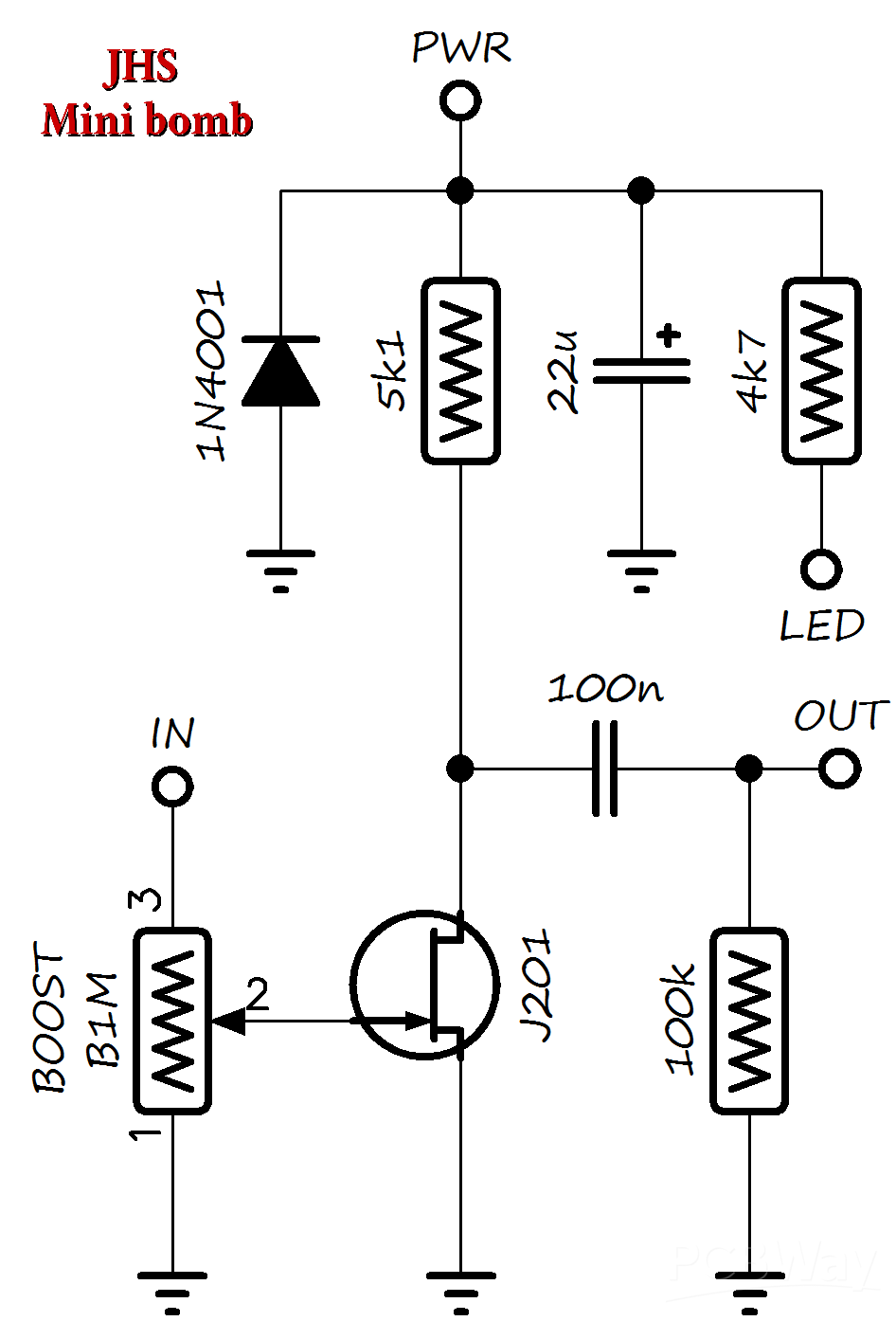

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 8 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 3 | ||||
| ×1 | 5k1 | 5.1k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| Capacitors 2 | ||||
| ×1 | 22u | 22u | electrolytic; read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | J201 | J201 | read from the schematic by eye | |
| Potentiometers 1 | ||||
| Boost | B1M | B1M | Potentiometer | read from the schematic by eye |
Other boards based on the JHS MiniBomb
- JHS MiniBomb Effects Layouts (blog) · 1590A
- Kobold Moonn Electronics · €2.50
