Enclosure not stated · 2 knobs
Fumble
Based on the JHS Fumble· 4 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- JHS

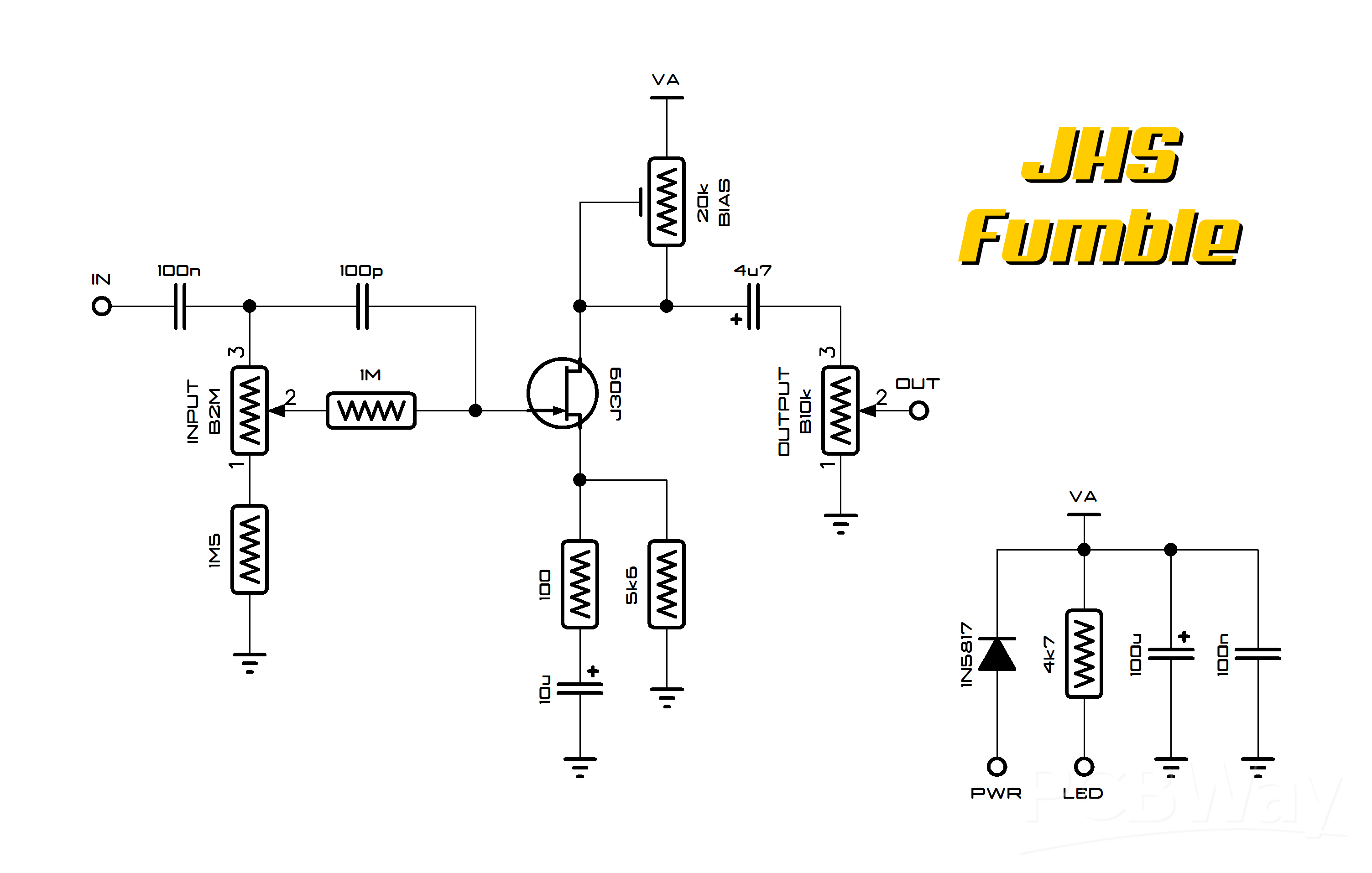

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 15 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 1M5 | 1.5M | read from the schematic by eye | |
| ×1 | 100 | 100 | read from the schematic by eye | |
| ×1 | 5k6 | 5.6k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 5 | ||||
| ×2 | 100n | 100n | read from the schematic by eye | |
| ×1 | 100p | 100p | read from the schematic by eye | |
| ×1 | 4u7 | 4.7u | electrolytic; read from the schematic by eye | |
| ×1 | 10u | 10u | electrolytic; read from the schematic by eye | |
| ×1 | 100u | 100u | electrolytic; read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×1 | J309 | J309 | JFET; read from the schematic by eye | |
| Potentiometers 2 | ||||
| Input | B2M | B2M | Potentiometer | read from the schematic by eye |
| Output | B10k | B10k | Potentiometer | read from the schematic by eye |
| Trimmers 1 | ||||
| Bias | 20k | 20k | drain trimmer labelled BIAS; read from the schematic by eye | |
