Touch OD

Based on the J.Rockett Touch OD· 1 other board clones it

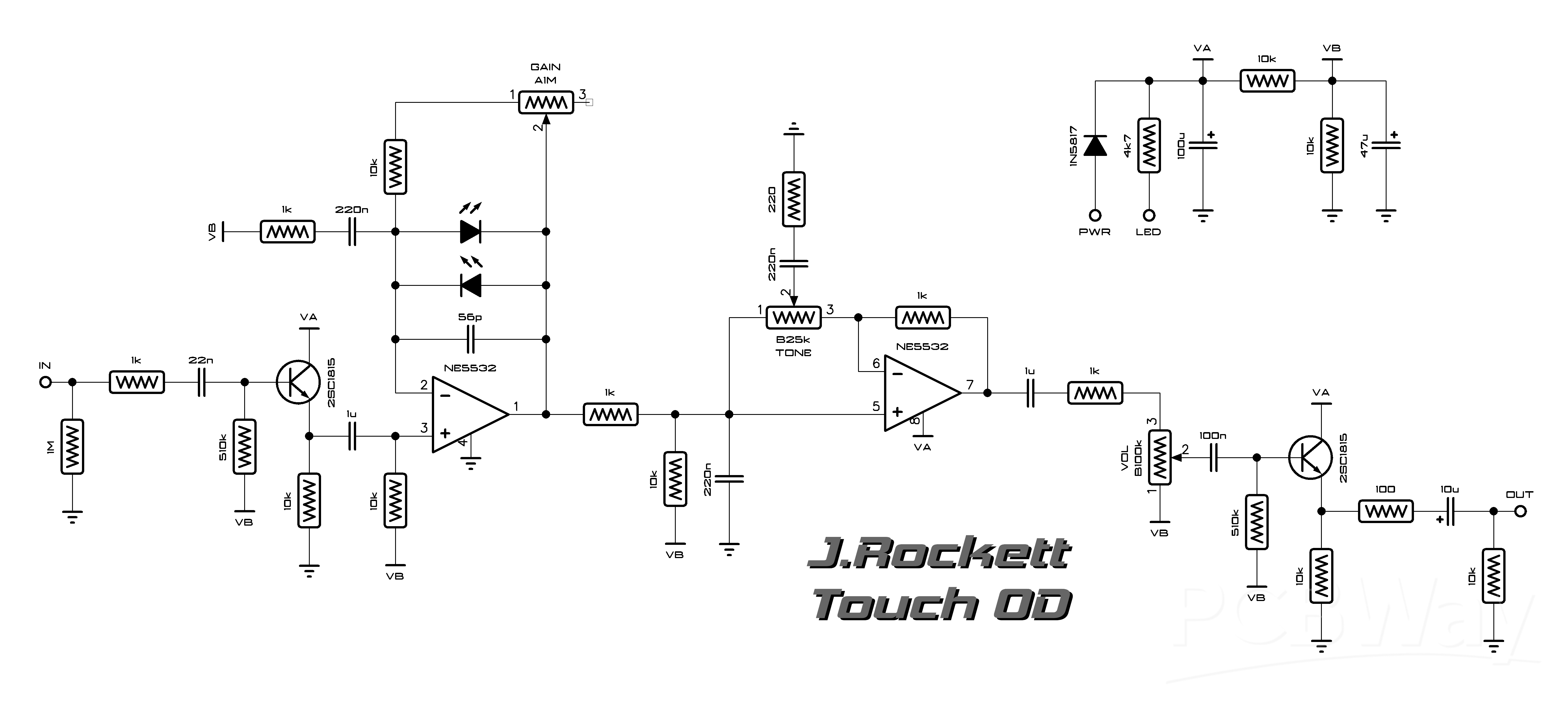

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 7
×8	10k	10k		read from the schematic by eye
×5	1k	1k		read from the schematic by eye
×2	510k	510k		read from the schematic by eye
×1	1M	1M		read from the schematic by eye
×1	220	220		read from the schematic by eye
×1	100	100		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
Capacitors 8
×3	220n	220n		read from the schematic by eye
×2	1u	1u		read from the schematic by eye
×1	22n	22n		read from the schematic by eye
×1	56p	56p		read from the schematic by eye
×1	100n	100n		read from the schematic by eye
×1	10u	10u		electrolytic; read from the schematic by eye
×1	100u	100u		electrolytic; read from the schematic by eye
×1	47u	47u		electrolytic; read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
Transistors 1
×2	2SC1815	2SC1815		read from the schematic by eye
ICs 1
×1	NE5532	NE5532		two sections of one dual chip; read from the schematic by eye
Potentiometers 3
Gain	A1M	A1M	Potentiometer	wired as variable resistor; read from the schematic by eye
Tone	B25k	B25k	Potentiometer	read from the schematic by eye
Vol	B100k	B100k	Potentiometer	read from the schematic by eye
LEDs 1
×2	LED	LED		clipping LEDs in the gain feedback loop; read from the schematic by eye
