SK10 Visual Super Product

Based on the Ibanez SK10 Visual Super Product· 3 other boards clone it

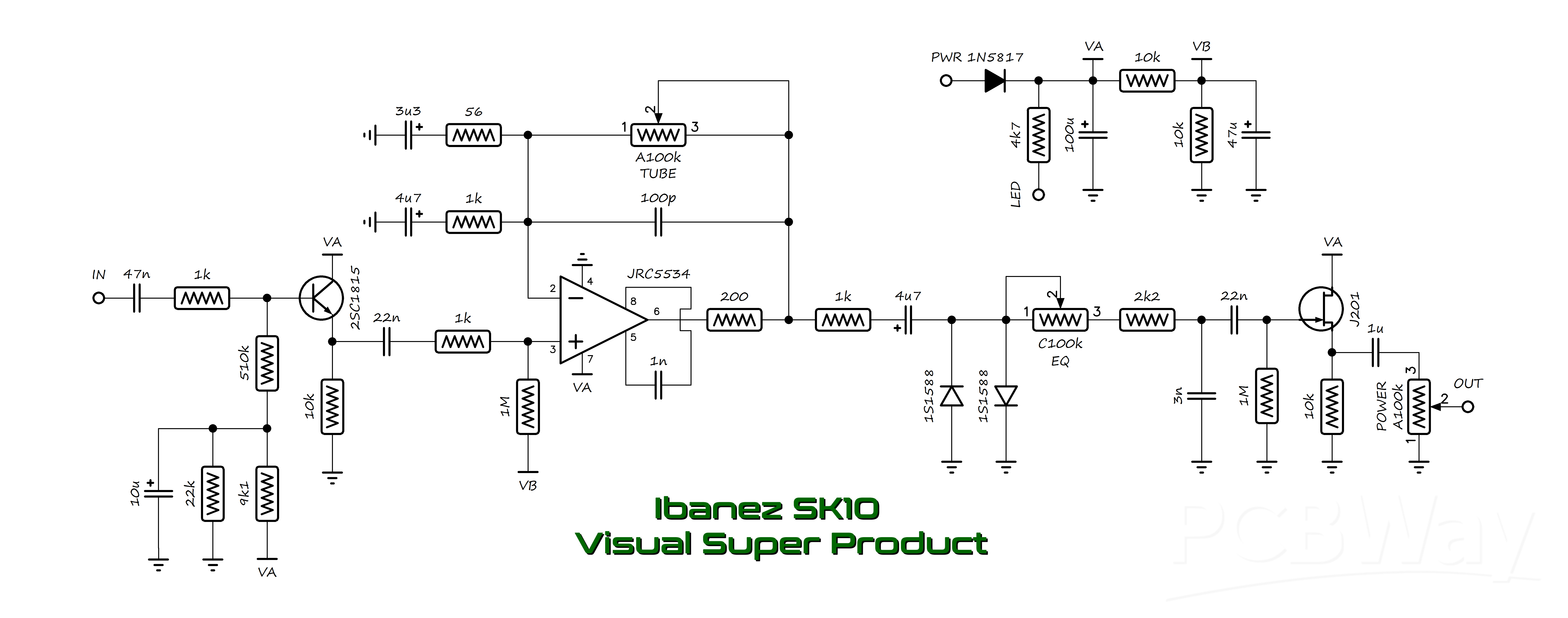

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 10
×4	1k	1k		read from the schematic by eye
×4	10k	10k		read from the schematic by eye
×2	1M	1M		read from the schematic by eye
×1	510k	510k		read from the schematic by eye
×1	22k	22k		read from the schematic by eye
×1	9k1	9.1k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
×1	2k2	2.2k		read from the schematic by eye
×1	200	200		read from the schematic by eye
×1	56	56		read from the schematic by eye
Capacitors 11
×2	22n	22n		read from the schematic by eye
×2	4u7	4.7u		read from the schematic by eye
×1	47n	47n		read from the schematic by eye
×1	3u3	3.3u		read from the schematic by eye
×1	100p	100p		read from the schematic by eye
×1	1n	1n		read from the schematic by eye
×1	3n	3n		read from the schematic by eye
×1	1u	1u		read from the schematic by eye
×1	10u	10u		read from the schematic by eye
×1	47u	47u		read from the schematic by eye
×1	100u	100u		read from the schematic by eye
Diodes 2
×2	1S1588	1S1588		clipping to ground; read from the schematic by eye
×1	1N5817	1N5817		reverse-polarity protection; read from the schematic by eye
Transistors 2
×1	2SC1815	2SC1815		read from the schematic by eye
×1	J201	J201		read from the schematic by eye
ICs 1
×1	JRC5534	JRC5534		read from the schematic by eye
Potentiometers 3
Tube	A100k	A100k	Potentiometer	read from the schematic by eye
EQ	C100k	C100k	Potentiometer	read from the schematic by eye
Power	A100k	A100k	Potentiometer	output volume; read from the schematic by eye
