Enclosure not stated · 3 knobs
Mizuki Blue
Based on the Greer Amps Mizuki Blue· 3 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Greer Amps

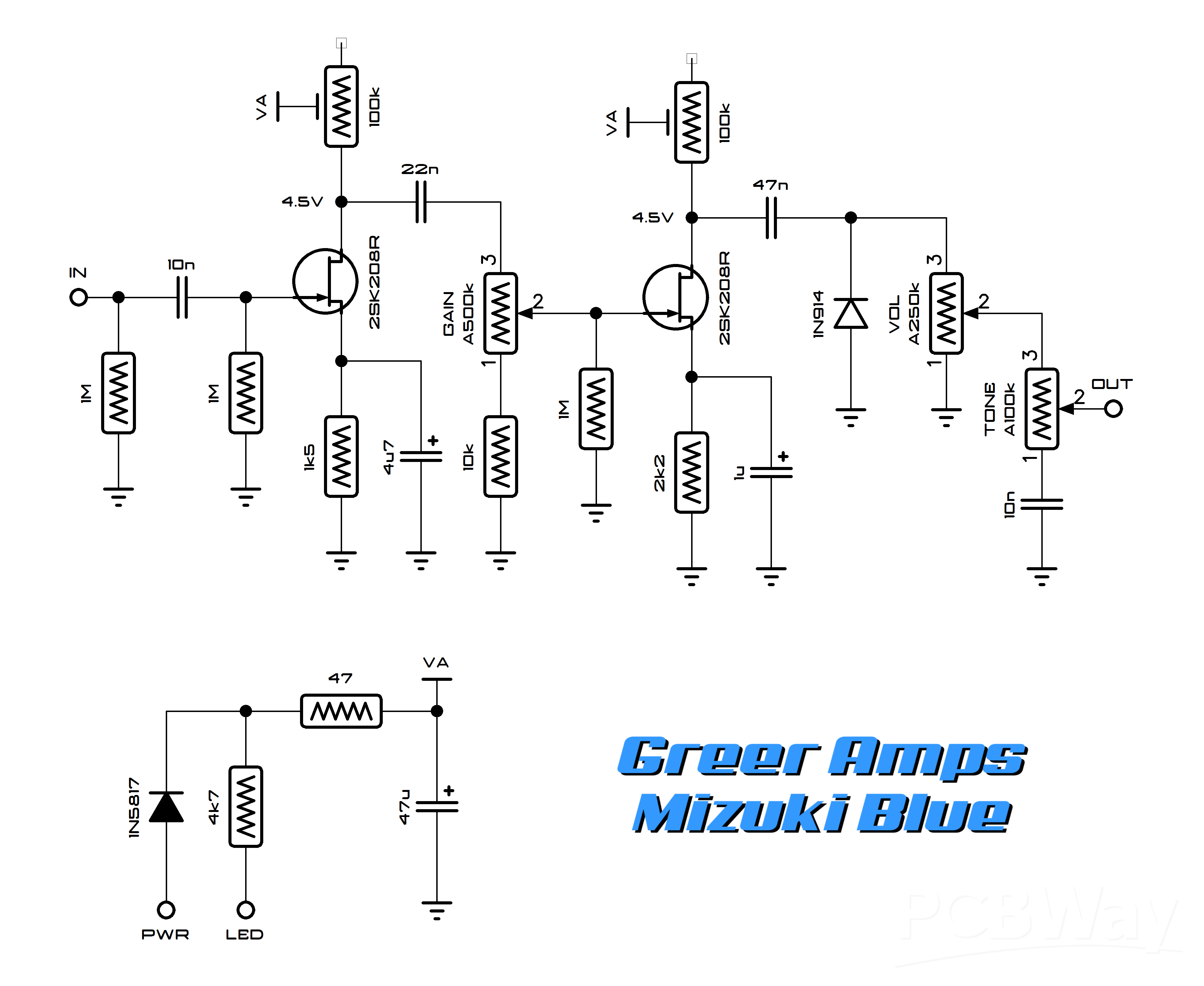

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 19 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 6 | ||||
| ×3 | 1M | 1M | read from the schematic by eye | |
| ×1 | 1k5 | 1.5k | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| ×1 | 2k2 | 2.2k | read from the schematic by eye | |
| ×1 | 47 | 47 | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| Capacitors 6 | ||||
| ×2 | 10n | 10n | read from the schematic by eye | |
| ×1 | 22n | 22n | read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 4u7 | 4.7u | read from the schematic by eye | |
| ×1 | 1u | 1u | read from the schematic by eye | |
| ×1 | 47u | 47u | read from the schematic by eye | |
| Diodes 2 | ||||
| ×1 | 1N914 | 1N914 | read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | 2SK208R | 2SK208R | read from the schematic by eye | |
| Potentiometers 3 | ||||
| Gain | A500k | A500k | Potentiometer | read from the schematic by eye |
| Vol | A250k | A250k | Potentiometer | read from the schematic by eye |
| Tone | A100k | A100k | Potentiometer | read from the schematic by eye |
| Trimmers 1 | ||||
| ×2 | 100k | 100k | JFET drain trimmers, wiper to VA, set for 4.5V at the drain; read from the schematic by eye | |
