Enclosure not stated · 4 knobs
Mas Malo
Based on the Fulltone Mas Malo· 5 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Fulltone

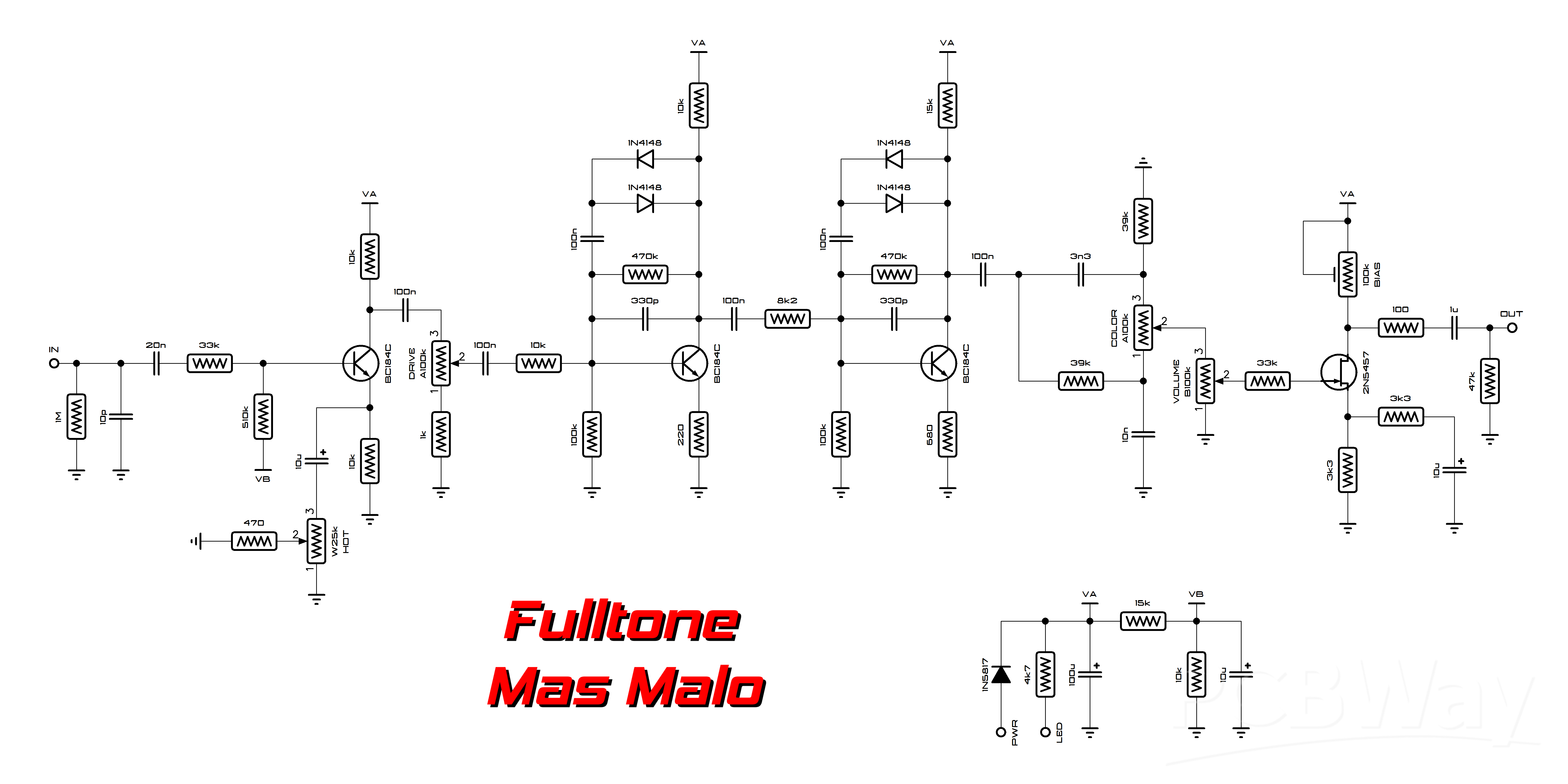

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 35 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 17 | ||||
| ×5 | 10k | 10k | read from the schematic by eye | |
| ×2 | 33k | 33k | read from the schematic by eye | |
| ×2 | 100k | 100k | read from the schematic by eye | |
| ×2 | 470k | 470k | read from the schematic by eye | |
| ×2 | 15k | 15k | read from the schematic by eye | |
| ×2 | 39k | 39k | read from the schematic by eye | |
| ×2 | 3k3 | 3.3k | read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 510k | 510k | read from the schematic by eye | |
| ×1 | 470 | 470 | read from the schematic by eye | |
| ×1 | 1k | 1k | read from the schematic by eye | |
| ×1 | 220 | 220 | read from the schematic by eye | |
| ×1 | 8k2 | 8.2k | read from the schematic by eye | |
| ×1 | 680 | 680 | read from the schematic by eye | |
| ×1 | 100 | 100 | read from the schematic by eye | |
| ×1 | 47k | 47k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| Capacitors 9 | ||||
| ×6 | 100n | 100n | read from the schematic by eye | |
| ×3 | 10u | 10u | read from the schematic by eye | |
| ×2 | 330p | 330p | read from the schematic by eye | |
| ×1 | 20n | 20n | read from the schematic by eye | |
| ×1 | 10p | 10p | read from the schematic by eye | |
| ×1 | 3n3 | 3.3n | read from the schematic by eye | |
| ×1 | 10n | 10n | read from the schematic by eye | |
| ×1 | 1u | 1u | read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| Diodes 2 | ||||
| ×4 | 1N4148 | 1N4148 | read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 2 | ||||
| ×3 | BC184C | BC184C | read from the schematic by eye | |
| ×1 | 2N5457 | 2N5457 | read from the schematic by eye | |
| Potentiometers 4 | ||||
| Drive | A100k | A100k | Potentiometer | read from the schematic by eye |
| Hot | W25k | W25k | Potentiometer | read from the schematic by eye |
| Color | A100k | A100k | Potentiometer | read from the schematic by eye |
| Volume | B100k | B100k | Potentiometer | read from the schematic by eye |
| Trimmers 1 | ||||
| Bias | 100k | 100k | JFET drain trimmer, labelled BIAS; read from the schematic by eye | |
