Enclosure not stated · 4 knobs
Catalyst
Based on the Fulltone Catalyst· 4 other boards clone it
- Category
- Fuzz
- Price
- see vendorin stock
- Tags
- Fulltone, Fuzz, Distortion, Overdrive, Boost, Guitar pedal
From the vendor
The Fulltone Catalyst is an amazing pedal, containing a clean boost function, an overdrive, distortion, and fuzz all in one. The Catalyst is best at creating non-compressed crunch tones and non-compressed distortion/fuzz sounds, and is unique in its ability to clean up as you turn the volume down. This pedal also comes with a simple 2-band EQ and a Flame/Spark switch, which turns the pedal into a Fuzz/Distortion and an Overdrive, respectively. It's so versatile it ends up in virtually any genre of music.

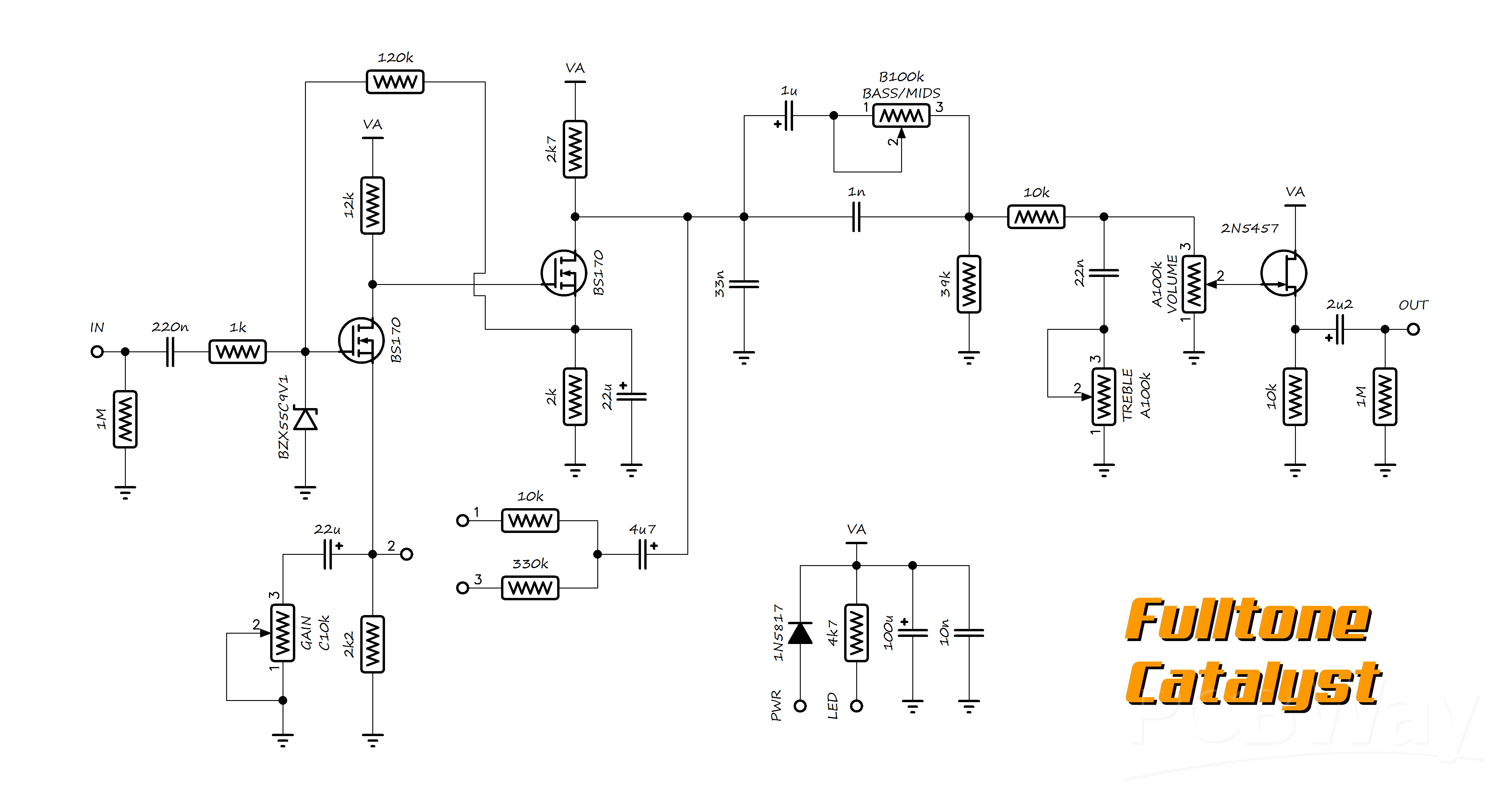

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 30 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
Check before you build · 1 value the reader of this schematic was not sure of
- Mode switch inferred from pads 1/2/3, no switch symbol or type drawn
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 11 | ||||
| ×3 | 10k | 10k | read from the schematic by eye | |
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×1 | 1k | 1k | read from the schematic by eye | |
| ×1 | 120k | 120k | read from the schematic by eye | |
| ×1 | 12k | 12k | read from the schematic by eye | |
| ×1 | 2k2 | 2.2k | read from the schematic by eye | |
| ×1 | 2k7 | 2.7k | read from the schematic by eye | |
| ×1 | 2k | 2k | read from the schematic by eye | |
| ×1 | 330k | 330k | read from the schematic by eye | |
| ×1 | 39k | 39k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED current limiter; read from the schematic by eye | |
| Capacitors 10 | ||||
| ×2 | 22u | 22u | read from the schematic by eye | |
| ×1 | 220n | 220n | read from the schematic by eye | |
| ×1 | 4u7 | 4.7u | read from the schematic by eye | |
| ×1 | 1u | 1u | read from the schematic by eye | |
| ×1 | 33n | 33n | read from the schematic by eye | |
| ×1 | 1n | 1n | read from the schematic by eye | |
| ×1 | 22n | 22n | read from the schematic by eye | |
| ×1 | 2u2 | 2.2u | read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| ×1 | 10n | 10n | read from the schematic by eye | |
| Diodes 2 | ||||
| ×1 | BZX55C9V1 | BZX55C9V1 / 9V1 | 9V1 zener at the first gate; read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | polarity protection; read from the schematic by eye | |
| Transistors 2 | ||||
| ×2 | BS170 | BS170 | MOSFET; read from the schematic by eye | |
| ×1 | 2N5457 | 2N5457 | JFET output buffer; read from the schematic by eye | |
| Potentiometers 4 | ||||
| Gain | C10k | C10k | Potentiometer | read from the schematic by eye |
| Bass/Mids | B100k | B100k | Potentiometer | read from the schematic by eye |
| Treble | A100k | A100k | Potentiometer | read from the schematic by eye |
| Volume | A100k | A100k | Potentiometer | read from the schematic by eye |
| Switches 1 | ||||
| ×1 | SPDT | SPDT | not drawn as a symbol: off-board pads 1/2/3 pick the 10k or 330k path from the first stage source to the 4u7; type inferred; read from the schematic by eye | |
