Enclosure not stated · 2 knobs

2B

Based on the Fulltone 2B· 3 other boards clone it

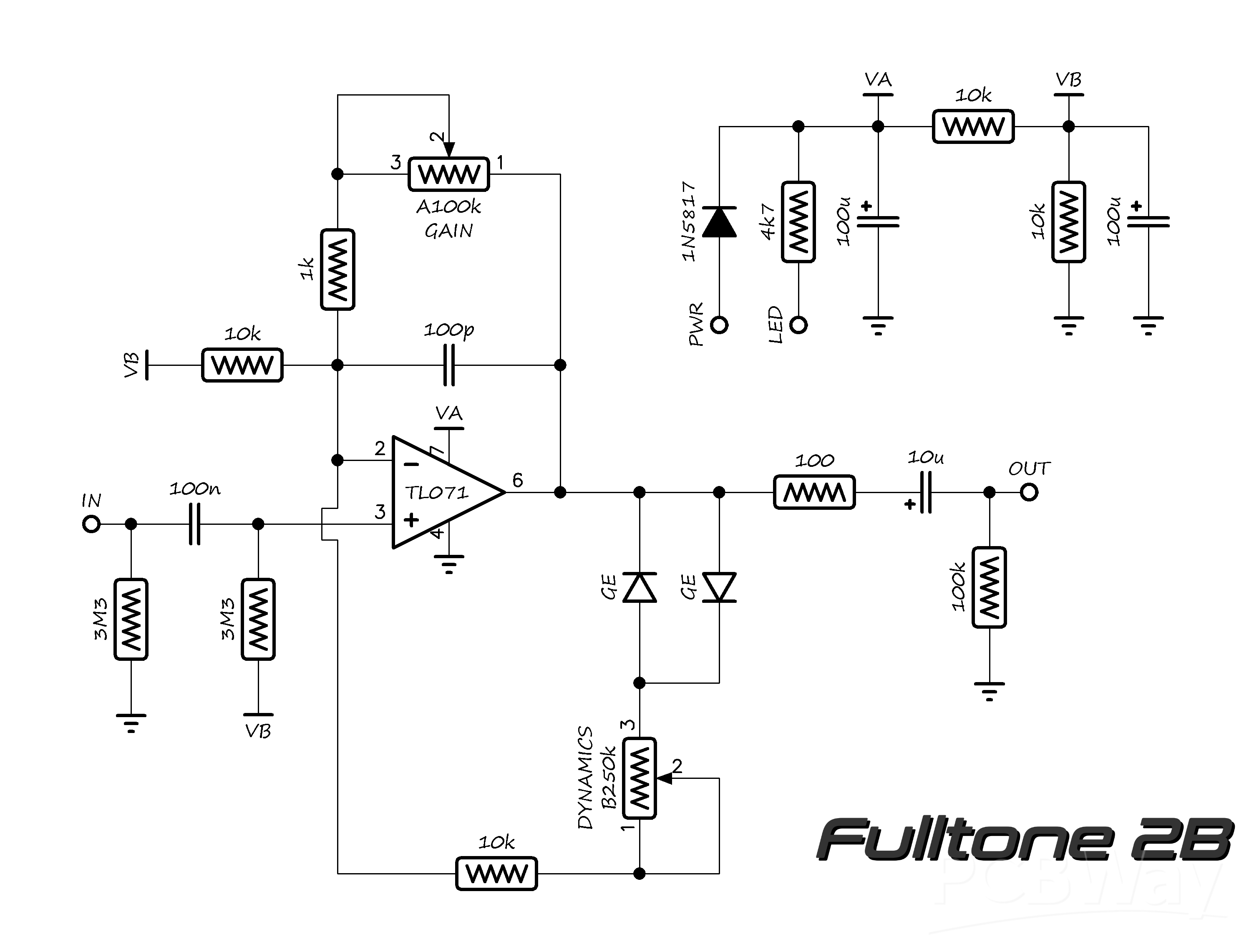

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 6
×2	3M3	3.3M		read from the schematic by eye
×1	100k	100k		read from the schematic by eye
×4	10k	10k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
×1	1k	1k		read from the schematic by eye
×1	100	100		read from the schematic by eye
Capacitors 4
×2	100u	100u		electrolytic; read from the schematic by eye
×1	10u	10u		electrolytic; read from the schematic by eye
×1	100n	100n		read from the schematic by eye
×1	100p	100p		read from the schematic by eye
Diodes 2
×2	GE	GE		germanium clipping diodes, drawn with the generic label GE; read from the schematic by eye
×1	1N5817	1N5817		reverse polarity; read from the schematic by eye
ICs 1
×1	TL071	TL071		read from the schematic by eye
Potentiometers 2
Gain	A100k	A100k	Potentiometer	read from the schematic by eye
Dynamics	B250k	B250k	Potentiometer	sets the clipping diodes' resistance to the inverting input; read from the schematic by eye
