Enclosure not stated · 3 knobs

Tone Reaper

Based on the EarthQuaker Devices Tone Reaper· 6 other boards clone it

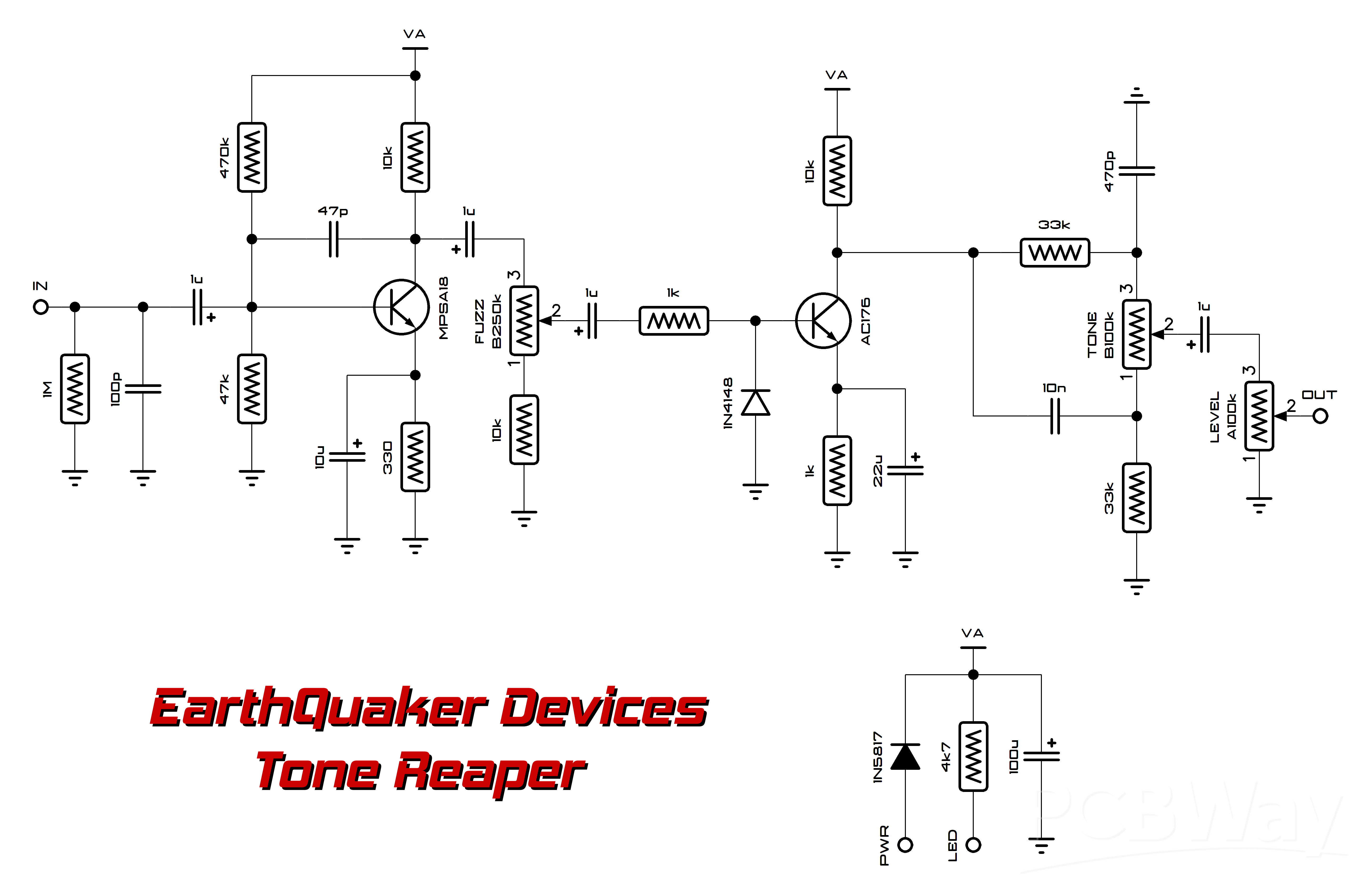

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 8
×1	1M	1M		read from the schematic by eye
×1	470k	470k		read from the schematic by eye
×1	47k	47k		read from the schematic by eye
×3	10k	10k		read from the schematic by eye
×1	330	330		read from the schematic by eye
×2	1k	1k		read from the schematic by eye
×2	33k	33k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
Capacitors 8
×1	100p	100p		read from the schematic by eye
×4	1u	1u		read from the schematic by eye
×1	47p	47p		read from the schematic by eye
×1	10u	10u		read from the schematic by eye
×1	22u	22u		read from the schematic by eye
×1	470p	470p		read from the schematic by eye
×1	10n	10n		read from the schematic by eye
×1	100u	100u		read from the schematic by eye
Diodes 2
×1	1N4148	1N4148		read from the schematic by eye
×1	1N5817	1N5817		read from the schematic by eye
Transistors 2
×1	MPSA18	MPSA18		read from the schematic by eye
×1	AC176	AC176		read from the schematic by eye
Potentiometers 3
Fuzz	B250k	B250k	Potentiometer	read from the schematic by eye
Tone	B100k	B100k	Potentiometer	read from the schematic by eye
Level	A100k	A100k	Potentiometer	read from the schematic by eye
